Security Hands-On-Training – Part 5

[Now that we have the environment ready we can start looking at the different attack methods. The goal is to practice the tools, look behind the scenes and understand the techniques that might be used to gain access, establish a foothold, escalate privileges, steal credentials and exfiltrate data. With this one can learn, practice and gain a better practical understanding on security. ~Luis]

Ed Skoudis describes the anatomy of an attack using a 5 step model. The steps are reconnaissance, scanning, exploit, keeping access, and covering tracks (Skoudis & Liston, 2005). In our environment, the reconnaissance and scanning steps are skipped. The focus will go be on the exploit phase. A sophisticated intruder will spend a great amount of time and resources performing reconnaissance and scanning.

We will use SQL Injection as an example and utilize SQLmap in this exercise. SQLmap has been developed by Bernardo Damele A.G. and Miroslav Stampar and it is an actively maintained and powerful command line tool. It is available as part of the BackTrack and Kali distribution (SQLmap).

Start by getting the latest version of SQLmap from the repository by issuing the command shown below.

security-hot-fig16

To configure SQLmap, we will tweak the default settings. In order to get those settings the reader should access the test site through a proxy like Paros or use the Firefox tamper data plug-in. Save all the POST parameters in a file which will be used as payload. The nest figure shows the steps taken to retrieve the POST parameters and use them.

security-hot-fig17

Then execute SQLmap.  It will determine that the parameter ctl00$ContentPlaceHolder1$descriptionTextBox is vulnerable using a time-based blind SQL injection technique. Using this technique the tool is able to extract the SQL query results in a bit-by-bit manner (Litchfield, 2005). Asking questions to the database and observing how it reacts to those questions will allow the attacker to infer the value of the data (Stampar, 2009) (Litchfield, 2005).

Now that the reader has a method that works and that allows him to have access to the system, the reader can move to more advanced techniques. Figure below exemplifies in detail how SQLmap achieves an operating system shell using time-based blind injection techniques. It starts by determine if the current user is part of the sysadmin role. Then it determines if the xp_cmdshell extended procedure is available. This stored procedure is one of the most powerful stored procedures and it is used to launch operating system commands in the context of the SQL server service (Litchfield, Anley, Heasman & Grindlay, 2005). In this case it was not available so SQLmap has the ability to re-enable it using the sp_configure stored procedure. The reader needs to have sysadmin rights to the DB to use sp_configure. With xp_cmdshell, the reader can start executing operating system commands using SQL statements. Because the results of the xp_cmdshell are not sent to the client, further queries using temporary tables are used to retrieve the results.

security-hot-fig18

SQLmap is able to retrieve data over out of band channels such as DNS. This technique allows the retrieval of the SQL results using a DNS recursive resolution process which is much faster than the time-based or boolean-based inference methods (Stampar, 2009). To accomplish this, the attacker needs to control a DNS domain name. Of course the database server also needs to have a dns server configured and be able to perform queries.

The DNS requests made by the database will be triggered by SQL queries. Due to the way DNS works, if the database does not know the answer, it will forward the request to the upstream DNS server. In our environment ,the system does not have access trough the firewall for any outbound communications. Nevertheless, it can forward the DNS requests to the DNS server which in turn forwards them to the authoritative server which is under the attacker’s control. Sensepost presented at BlackHat USA 2007 a SQL injection tool called Squezza that was able to extract data trough DNS and others channels (Research, 2007). This technique was added to SQLmap in 2012 (Stampar, 2009). To carry out this technique, SQLmap will be executed with a command line option that specifies the domain name controlled by the attacker. Figure below shows the command executed, the SQL queries performed, and the output of the commands. It also shows how the DNS queries are constructed.

security-hot-fig19

After executing this technique, a low privilege shell is gained. The next step will be to strengthen the position within the target by uploading additional tools to the system to escalade privileges. In addition, since it is known the system can communicate via DNS, a different set of tools will be used to take advantage of this and further compromise the system. This combined arms approach will result in use getting a “system” privilege shell back via DNS.

To escalate privileges a tool called churrasco developed by Cesar Cerrudo is used. This tool takes advantage of an exploit that uses a technique that he named as token

kidnapping which elevates privileges to a System account by using techniques that impersonate tokens to manipulate processes and thread access lists (Cerrudo, 2008). The source code of the tool that affects Windows 2008 was downloaded from Cesar Cerrudo’s website and compiled using Visual Studio C++ 2008 Express edition (www.argeniss.com/research/Churrasco2.zip). It is important to note that this vulnerability has been patched by Microsoft in Windows 2012 (MS09-12). The exploit when executed successfully will span a shell to an IP and port chosen by the user.  In spite of this, because the firewall does not allow the target system to communicate with the outside world, the shell will communicate back to the attacker through DNS. We will use dns2tcp. This tool allows relaying TCP connections trough DNS. This way the spanned shell from the exploit will be redirected and forwarded using DNS (Dembour).

These tools will be uploaded to the system, written to the file system in a directory where the low privilege account would have write access and then executed. To accomplish this the reader starts by uploading the dns2tcp client tool ( dns2tcpc.exe) using  SQLninja, a powerful SQL injection tool created by Icesurfer (SQLninja). The same way SQLmap needed configuration settings, SQLninja will need the target details, the injection point and a well formed HTTP request. This is done via SQLninja.conf and the HTTP POST request used is shown in the next figure.

security-hot-fig20

The methods used by either SQLmap or SQLninja to upload files and write them to the file system using SQL injection are based on the xp_cmdshell procedure. This procedure can facilitate the creation of files by using the “>>” redirect operator (Clarke, 2012). Behind the scenes SQLninja can use two techniques to upload files to target systems. One technique is to base64 encode the binary and then upload it. The other technique uses an old trick to convert the binary into a DEBUG script.  The default technique is to use the base64 method and it can be defined in the sqlninha.conf by stating “upload_method = vbscript”.  Figure 22 illustrates this technique.

security-hot-fig21

This technique works well. The alternative technique creates a DEBUG script which can be passed to the debug.exe script to be converted to a binary. The following picture shows the steps taken by SQLninja to accomplish this.

security-hot-fig22

Compared to using a Base64 encoded binary, this technique has the disadvantage that debug.exe can only build executables smaller than 64 Kb. However, you can split bigger files into 64 KB portions and after uploading them you can concatenate them together using copy /b portion _1  + portion_2 original-file.exe (Clarke,2012).  This technique is slower but as the advantage that debug.exe is available in any windows operating system and therefore the attacker won’t need any additional scripts or tools to create a binary on the target system. More details about debug.exe is available on Kipivirne.com.

In case the reader would like to try the DEBUG technique he can convert windows binaries to a debug script format in Backtrack using a python script called dbgtool.py. Is available  in the SQLmap directory under /extra/dbgtool/. Then the file containing the debug script can be moved to a windows machine and converted back to a binary using the “debug < debugfile” command.

The reader can follow the same process to upload any additional tools. The target system does not use any antivirus tools, but this technique can be performed even with antivirus. The traditional way that antivirus programs identify the presence of a virus is by using signatures (Labbe, Rowe & Fulp, 2006). This can be subverted by using an exploit that the antivirus tool does not have a signature for. One simple way to do this is to use a hex editor to remove the machine code that triggers the signature without having an impact on the execution of the exploit. Another way might be by using encoders or packers or even target the AV software itself (Ormandy, 2012)(Koret, 2014). This is left as an exercise for the reader to further research.

The next tool to be uploaded is churrasco.exe. We need to configure SQLninja to be aware of this tool in order to allow it to be uploaded to the target. This is done by adding lines of code to sqlninja.py to identify the file, and adding the file to the sqlninja/apps folder.

Now that the dns2tcpc.exe and churrasco.exe tools are uploaded the next step is to execute them. Because they need to be executed sequentially, the task scheduler in windows will be used. This can be invoked from the command line using the schtasks.exe command. The schedule of the tools execution will be done using the interactive command line that can be invoked by the SQLmap os-shell feature.

First SQLmap is launched. Then it checks if the files are saved in the %TEMP% folder. Finally, two tasks are scheduled to run daily at pre defined times with current privileges. The first task executed is “dns2tcpc”. The command line instructs dns2tcpc.exe to encapsulate the data using DNS requests to the acme.com domain with using a pre-shared key. In addition, it instructs the server side of the tool to use the ssh resource and to listen for incoming connections on port 137 TCP (Dembour). The second task executed is “churrasco.exe”. The command line instructs churrasco to execute a reverse shell to localhost on port 137 which is where dns2tcpc.exe is listening. These steps are illustrated below.

security-hot-fig23

After successful scheduling the tasks, the reader needs to exit SQLmap to release UDP port 53 (remember SQLmap is using this port while launching the commands trough encapsulated DNS queries). Then it executes the dns2tcp server daemon. This tool is available on the backtrack distribution under /pentest/backdoors/dns2tcp. Before executing the daemon the reader  needs to create a configuration file in the user’s home folder, configuring the IP address and the port to listen on, the domain name send questions to, the pre-shared key, and where to redirect the connections received.  The directory specified in the chroot settings of the configuration file also needs to be created beforehand.

security-hot-fig24

After defining the configuration file, dns2tcpd is instructed to listen on IP address 192.168.1.7 (-i), execute on the foreground (-F) and show debug level information so the queries and answers can be seen (-d 3). Then the reader will need to wait for the scheduled tasks to kick in.

security-hot-fig25

While waiting for the scheduled tasks to start, another shell is needed. This shell will listen for an incoming connection on localhost port 22 which is going to be forwarded by our dns2tcp daemon. To do this the Metasploit mutil-handler is used. This will handle the reverse connection but the reader could simple use netcat (nc -l -p 22).

At this stage the attacker has two shells open. One to answer the DNS queries addressed to the domain acme.com. These will contain encapsulated data which are  shell code that is going to be forwarded to port 22. On the second shell there is Metasploit multi-handler waiting for that shell code. When the scheduled tasks triggers a TCP reverse shell with system privileges encapsulated trough DNS data will be opened. The following figure demonstrates how these techniques work together.

security-hot-fig26

The next picture illustrates a summary of the techniques used.

security-hot-fig27

Now, that the reader has escalated privileges and maintains access he can steal valid user credentials.  To steal credentials there are a variety of tools and ways. In this case a tool named gsecdump v2.0b5  created by Johannes Gumbel from TrueSec that allows extracting the hashes from SAM or AD database will be used (TrueSec). This tool is uploaded to the target system like it was shows previously. The execution is shown below. With the hashes extracted the reader can then crack them using the John the Ripper or Hashcat. Or, it can use the hashes to further move into the network by using passing the hash or pass the ticket techniques (Rocha, 2012).

security-hot-fig28

From this moment onwards the reader can further practice tools and techniques to increase his presence in the target, move and compromise other targets in the network, steal and exfiltrate data and finally cover his tracks.



References:

Skoudis, E., & Liston, T. (2005). Counter hack reloaded: A step-by-step guide to computer attacks and effective defenses, second edition. Prentice Hall.
Ormandy, T. (2012). Sophail: A critical analysis of sophos antivirus. Retrieved from http://lock.cmpxchg8b.com/Sophail.pdf
Ormandy, T. (2012). Sophail: Applied attacks against sophos antivirus. Retrieved from http://lock.cmpxchg8b.com/sophailv2.pdf
Koret, J. (2014, January 1). . . Retrieved , from http://www.slideshare.net/JoxeanKoret/breaking-av-software-33153490
TrueSec. (n.d.). gsecdump v2.0b5. Retrieved from https://www.truesec.se/sakerhet/verktyg/saakerhet/gsecdump_v2.0b5
SQLmap.(n.d.) Retrieved from http://sqlmap.org/
SQLninja. (n.d.). sqlninja. Retrieved June 7, 2014, from http://sqlninja.sourceforge.net/
Stampar, M. (2009). Data retrieval over dns in sql injection attacks. (Master’s thesis)Retrieved from http://arxiv.org/ftp/arxiv/papers/1303/1303.3047.pdf
Rocha, L. (2014, Jul 2). The path to the Golden Ticket. Retrieved from https://countuponsecurity.com/2014/07/02/the-path-to-the-golden-ticket/
Litchfield, D. (2005, March). Sql injection and data mining trough inference. Backhat europe 2005.
Research, S. (2007). Squeeza. Retrieved from http://research.sensepost.com/tools/servers/squeeza
Cerrudo, C. (2008, 5 17). Token kidnapping. Retrieved from http://www.argeniss.com/research/TokenKidnapping.pdf
Dembour, O. (n.d.). dns2tcpc – a tunneling tool that encapsulate tcp traffic over dns. Retrieved from http://manpages.ubuntu.com/manpages/raring/man1/dns2tcpc.1.html
Clarke, J. (2012). Sql injection attacks and defense, 2nd edition. Syngress.\
Labbe, Keith, Rowe, Neil & Fulp, J.D. (2006). A Methodology for Evaluation of Host Based Intrusion Prevention Systems and its Applications, 2006 IEEE Information Assurance Workshop

Tagged , , , , , , , , , , ,

Dynamic Malware Analysis with REMnux v5 – Part 2

procdotDuring part one we created the environment to perform dynamic malware analysis with REMnux toolkit. Then the malware was executed and  all the interactions with the network were observed and captured. Essentially,  the malware was executed in a disposable virtual machine and all the traffic – including SSL – was intercepted.

Now, to further acquire information that would help us answering the questions made during part 1, it would be relevant to observe what happens at the system level.

Below recipe involves running Process Monitor from Sysinternals. Process Monitor is an advanced monitoring tool for Windows that shows real-time file system, Registry and process/thread activity, In parallel we run a packet capture with Wireshark on the disposable machine or we run tcpdump on REMnux. These tools will be started before malware executed and stopped moments after the infection. Then we will import this data – pcap and procmon – into ProcDOT. ProcDOT is a free tool created by Christian Wojne from CERT.at. It runs on Windows or Linux and is installed on REMNux This tool has the capability to parse the Procmon data. Then correlates it with the pcap  and transforms the data into a picture. This enables malware visual analysis. This method can be of great help for a effective and efficient dynamic malware analysis. The steps using part 1 model are:



  • Restore the VMware snapshot.
  • Start Process Monitor (need to be installed beforehand) and configure Columns fields to be compatible with ProcDOT.
  • Start Wireshark or tcpdump on REMnux and start capturing traffic.
  • Copy the malware to the virtual machine and run the malware.
  • Stop the wireshark capture and export the traffic into PCAP.
  • Stop the Process Monitor capture and export the results into CSV.
  • Move the PCAP and CSV file to REMnux.
  • Power off the infected machine.
  • Execute ProcDOT and import the procmon and pcap data.
  • Select the process and render the analysis.
  • Run trough the animation to understand the timing aspects.

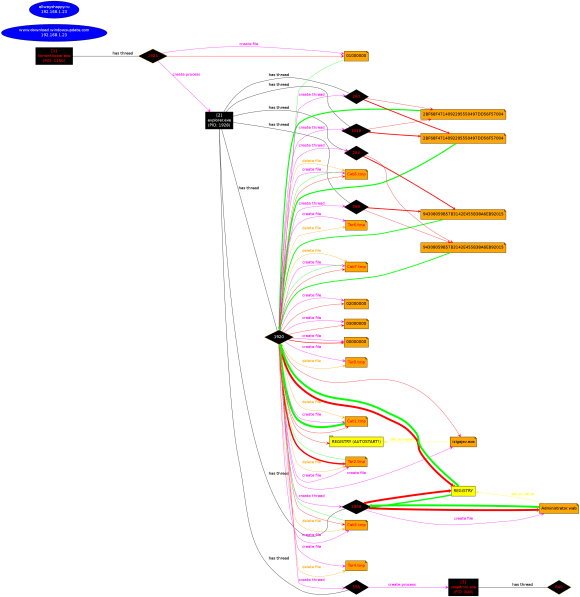

The picture below demonstrate the result (for the sake of size elements such of registry key and paths have been removed):

procdot-torrentlocker



This visualization technique is very helpful in order to determine in a very quick way what the malware does. The graph produced by ProcDOT is interactive and you can play an animation of it in order to determine in which sequence the events occurred. In this case several relevant events happened. You can easily observe that:

  • The executable torrentlocker.exe starts execution and invokes a new thread id 1924
  • The thread id 1924 creates a new suspicious file named 01000000
  • Thread id 1924 creates a new process named “explorer.exe” with pid 1928
  • This new process creates several actions including
  • A suspicious executable file is created under c:\windows named izigajev.exe
  • A new AutoStart registry key is created invoking the just created executable file
  • The file Administrator.wab is read and data written to it.
  • A new process name vssadmin.exe is invoked

By looking at this sequence of events we can conclude that the malware performs process injection by injecting its malicious code into a benign process. Creates a copy of itself and drops it into Windows folder. Maintains persistence by adding the dropped executable into the auto start registry key and creates several suspicious files.

A very simple, fast and effective method that can speed up the malware analysis. Using this visual analytic technique and the one described on part one you can gather indicators that could now be used to identify the malware in motion (network) or at rest (file system/registry) across your network. Further they could be used to augment existing security controls and find additional infected systems.

Tagged , , , ,

Security Hands-On-Training – Part 4

[Following part 3 where the  ASP.NET web site code was modified, part 4 will show different methods, techniques, and ways of manipulating the user input in order to control the logic of the application making the web application exploitable. ~Luis]

During the previous chapter the defenses that were in place in the test application were removed. To achieve this a  trial and error approach was used. While looking for SQL injection vulnerabilities, different methods, techniques, and ways of manipulating the user input were tried in order to see how the system reacted. This method allows us to learn and practice which defenses would need to be removed to allow a successful exploit.

The HelpDesk.aspx page is shown in the next figure. It simulates a helpdesk ticketing system where the user is allowed to input data into two fields. The “Station Number” and the “Problem Description”.

security-hot-fig9

When the user clicks on the “Submit Request” button, the web form takes the value and passes it to a SQL statement. This will happen without validation controls because they were removed in the previous post. Behind the scenes this page contains an INSERT SQL statement that will receive the user input and insert it into the database. The code block that allows this to happen is shown below.

security-hot-fig10

The database called “Dorknozzle” contains a table called “HelpDesk”. This is shown in the below figure. In the database there are several columns that are used to store the user input. During the trial and error method to discover a SQL injection point  it was found that input that is stored in the database as an integer could not be manipulated.  This applies to the “Station Number” field. However, the “Description” field uses the nvarchar type and allows up to 50 characters to be inserted.

security-hot-fig11

With this in mind and with the defenses down the reader can start adding characters in the user input fields that would change the initial query logic and see how the system reacts. The first character to try is the single quote. When clicking the submit button the web application returns a SQL exception message. This happens because the error messages were enabled.

security-hot-fig12

This was exactly the objective. This SQL error message discloses that the statement submitted had an unmatched number of single quote characters. To further exploit it the reader would need a way to construct a statement in the input field that allowed to terminate the string and append the malicious SQL statement (OWASP,4). At this stage the debug functionality of Visual Studio Express was used. By introducing a break point in the code where the SQL statement is, the application execution could be controlled. Then the Web application was started in debug mode. In the HelpDesk page the character “A” and a single quote was inserted in the “Problem Description” field. When submitting the request the break point kicked in and the step into functionality was used to dig into what was happening. This allows us to verify exactly how the SQL statement was being constructed and executed by the database. The next figure shows these steps.

security-hot-fig13

The SQL statement that was being sent to the database was not well formed due to the crafted input which caused an odd number of single quote characters resulting in a SQL error. The below figure shows what the SQL statement looks like.

security-hot-fig14

Now it is just a manner of time to find the correct input that will create a well formed SQL statement and introduce the malicious SQL code. During this iterative process the reader can find that he could close the SQL statement by injecting the right number of values that the database is expecting. Then another statement could be inserted and this would be the injection point and the “–“ sequence (two dashes) can be used to ignore the rest of the statement. This SQL injection point is inside an INSERT statement. Because of this you couldn’t see the output of the injected query or any difference in the in the responses of the web application which increases the difficulty of the technique. Using a technique called Blind SQL injection, which was first introduced by Chris Anley in 2002, the reader  might use inference techniques to get the results (Clarke, 2012). For example, with this technique, SQL statements that analyze the response time can be used. One method is using the sleep function like WAITFOR DELAY ‘time’. Using this technique the reader could make the database wait and reveal if a statement was true or false. In the next figure is shown how the SQL statement would look like after having the evil payload inserted. This will result in the database to wait 5 seconds before producing the results.

security-hot-fig15

In addition to the previous example the following SQL statements could be used in the SQL injection point to understand how the database would react:

IF (1=1) WAIT FOR DELAY ‘0:0:5’ —
IF (1>2) WAIT FOR DELAY ‘0:0:5’ —

Then more advanced queries could be used to determine if the current user is part of the sysadmin role:

IF((SELECT (CASE WHEN (IS_SRVROLEMEMBER(‘sysadmin’)=1) THEN ‘1’ ELSE ‘0’ END))=’1′) WAITFOR DELAY ‘0:0:5’ –

This seems a rather tedious and slow process but this will be automated using well known SQL injection tools in the upcoming articles. These tools dramatically increase the efficiency of an attacker but also extend the attack population. One disadvantage of these powerful tools is that any inexperienced person can mount complex SQL injection attacks regardless the technique or the database technology (Clarke, 2012).

During this exercise the reader is able to learn about SQL, its inner working queries and how SQL statements are constructed. It should be clear now why is important to disable any error messages and  why it is important to sanitize all input. When the reader has a good understanding of the tools and techniques and can control the logic of the application the reader could also use SQL injection with serious consequences. Tools like SQLmap and SQLninja can be used to automate these techniques.

Even though the focus was on SQL injection the environment is ready for additional tests by reducing our defenses further. In the context of this web application the reader could introduce other vulnerabilities such as Cross-Site scripting (XSS), Cross-Site Request Forgery (CSRF) or introduce a broken authentication mechanism. Learning how to do this and understanding the mechanisms behind the scenes is a rewarding exercising. Likewise, learning the attack vectors, use the tools, taking the time to experiment with them and understand how they work will make one better equipped and skilled.



References:
OWASP. (4, September 13). Testing for sql injection (owasp-dv-005). Retrieved from https://www.owasp.org/index.php/Testing_for_SQL_Injection_(OWASP-DV-005)
Clarke, J. (2012). Sql injection attacks and defense, 2nd edition. Syngress.

Tagged , , , ,

Security Hands-On-Training – Part 3

[Following part 1 and part 2 where we built an infrastructure with different systems, below article will focus on the Web Stack and will show how the ASP.NET code has been modified in order to make the application less secure. This will allow us to understand the security mechanism enforced by the application in order to make it defenseless and practice our security tools and techniques! ~Luis]

Instead of modifying the secure test application, the reader could use an existing vulnerable web application. Likewise, the reader could use test sites that allow him to practice hacker techniques in a wide variety of security realms. Just chose one from Aman Hardikar’s awesome mind map with various penetration testing practice labs and vulnerable applications (Hardikar, 2013). But on the other hand, building an infrastructure with simple IT services such as directory services, messaging services and a web stack  will allow the reader to enhance the depth and breadth of its skills not only from a security perspective but also from a systems and networking viewpoint.

Also, It is valuable to be exposed to defense and offense. Through the process of creating this environment and then growing it at will, the reader can practice both sides. In this environment a simple and secure web application is created and then its defenses are reduced. For instance, while following the mentioned book to create an ASP.NET website the code uses strong protections against SQL Injection using parameterized queries, stored procedures and data validation controls (Posey, Barnett & Darie, 2011). To make the application less secure, the reader first has to understand the security techniques employed by this application. The same applies to other technologies. For example techniques that protect against malicious user input. Once the code is vulnerable, the reader can explore attack techniques.

After building the mentioned web application – the code is available for free on GitHub -, 4 steps are executed to make it vulnerable: First, a user account with system administration privileges is created. Second,  the SQL parameterized statements are replaced by dynamic SQL statements. Third, the code is changed to make the application disclose error information and finally, the data validation code is removed to avoid input sanitization based on type, length, format or range.

For step one, go into the SQL Management Studio on your database server and create a user with system administration privilege (sysadmin) as illustrated in the left side of the following figure.
security-hot-fig5

This user will be used to define a database connection using SQL authentication. Then start changing the .NET application code using Visual Web Developer 2010 Express. For reference the right side of previous figure shows how these code files look. Next, web.config is modified. The authentication mechanism used by the application to connect to the database will change from integrated authentication to SQL authentication as shown on the left side of below figure (Posey, Barnett & Darie, 2011).  After making the change make sure the application can be compiled and is working as expected. Next change HelpDesk.aspx.cs. Remove the block of code that contains the parameterized SQL statements and replace it with a dynamic SQL as shown in right side of the following figure.

security-hot-fig6

Following that, step three is to customize the Try-Catch-Finally code block in HelpDesk.aspx.cs as shown on the below figure. This allows the web application to throw error messages and disclose them locally. Finally change HelpDesk.aspx and remove input data validation by commenting it out. This will facilitate the attack methods later on. The left side of the below figure shows the code block that should be removed or commented.

security-hot-fig7

In addition,  disable the EnableEventValidation and ValidateRequests directives by setting them to false in the header of the HelpDesk.aspx (see below figure).

security-hot-fig8

By following these steps the reader made the HelpDesk.aspx page vulnerable to SQL injection. This is going to be demonstrated in the next articles. It is not an intent to make the reader a .NET developer. Still, it is up to the reader if  he wants to further read and explore more about what are those measures that were removed or just follow the steps in order to practice the tools and tactics in the upcoming articles.



References:
Hardikar, A. (2013, 06). Penetration testing practice lab – vulnerable apps / systems. Retrieved from http://www.amanhardikar.com/mindmaps/Practice.html
Posey, T., Barnett, W., & Darie, C. (2011). Build your own asp.net 4 web site using c# & VB, 4th edition. SitePoint



Tagged , , ,

Dynamic Malware Analysis with REMnux v5 – Part 1

REMnux-logo1 [Part 1 illustrates a series of very useful tools and techniques used for dynamic analysis. Security incident handlers and malware analysts can apply this knowledge to analyze a malware sample in a quick fashion using the multi-purpose REMnux v5. This way you can extract IOCs that might be used to identify the malware across your defense systems and aid your incident response actions. ~Luis]

Malware analysis is a interesting topic nowadays. It requires a fairly broad of knowledge and practical experience across different subjects. My background is in systems and infrastructure which means I am more confident with the dynamic analysis methodology than the static analysis one. Some of the readers have similar background. However, if you are willing to roll your sleeves and spend time in order to learn and be proficient with the different tools and techniques static analysis can done – hopefully will write about basic static analysis in a near future. Additionally is intellectually challenging.

One of the goals of performing malware analysis is to determine the malware actions and get insight into its behavior and inner workings by analyzing its code. By doing this we can find answers to pertinent questions such as:

  • What are the malware capabilities?
  • What is the worst it can do?
  • Which indicators of compromise (IOC) could be used identify this malware in motion (network), at rest (file system) or in use (memory)?  – These IOCs can then be used across our defense systems and in our incident response actions.

The process consists of executing the malware specimen in a safe, secure, isolated and controlled environment.The dynamic analysis methodology allows you to determine the malware behavior and how it interacts with the network, file system, registry and others. In this post I go trough a technique to determine its behaviour at the network level. In this way we can start answering the previous questions.

How?

A simple and effective manner to execute malware analysis in an safe, isolated and controlled fashion would be to use a second hand laptop with enough RAM and fast I/O like a SSD drive. Then on top of it a virtualization software. My personal preferences goes VMware Workstation due to the wide range of operating systems supported, and affordable price. Essentially two virtual machines. One machine running the resourceful and multi-purpose REMnux v5.

For those who don’t know, REMnux is a fantastic toolkit based on Ubuntu created by Lenny Zeltser that provides an enormous amount of tools preinstalled to perform static and dynamic malware analysis. The tools installed have the ability to analyze Windows and Linux malware variants. You can download it from either as a Live CD or a preconfigured virtual appliance for Vmware or VirtualBox from here.

The second machine will be running Windows XP or 7 32 Bits. That will get you started. Then configure the environment and install the required tools on the disposable – relying heavily on VMware snapshots – Windows machine.

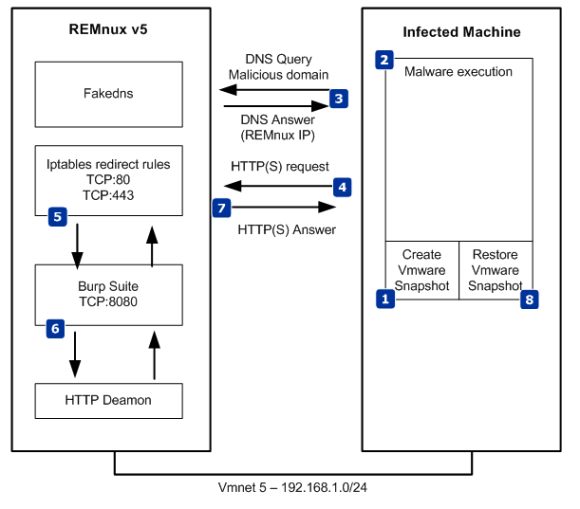

In the first technique, I want REMnux to act as gateway, dns server and proxy – including SSL – . This will allow us to intercept all network communications originating from the infected machine. The following picture illustrates the methodology for dynamic analysis.

malware-analysis-framework

The illustration should be self-explanatory. In this manner, any DNS request made by the infected machine will be redirected to the REMnux. If the malware is not using DNS but using hardcoded IP addresses, the requests will go through the default gateway which is pointing to the REMnux. The REMnux by its turn will have iptables configured to redirect all received traffic either on port TCP 80 or 443 to TCP port 8080. On this port – TCP 8080 – Burp Suite is listening as a transparent Proxy. In this way you will have visibility and control into all network communications initiated by the infected machine.

On REMnux the steps to perform this configuration are:

  1. Define the Network adapter settings on VMware Workstation to be in a custom virtual networkg., VMnet5.
  2. Define a static IP
  3. Start FakeDNS to answer any DNS requests.
  4. Start HTTP daemon to answer HTTP requests.
  5. Redirect HTTP and HTTPS traffic to port TCP 8080 by configuring redirect rules via iptables.

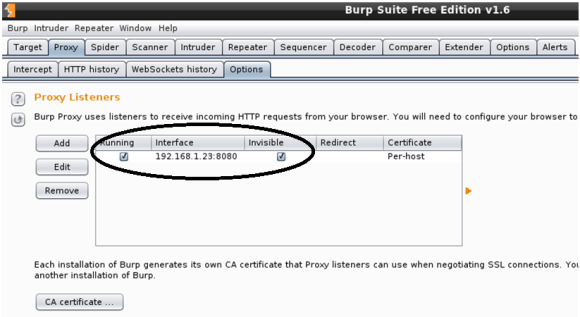

  6. Intercept HTTP requests using BURP Suite in Invisible mode on port 8080
  7. Optionally you run tcpdump to capture all the networking traffic (allows you to create IDS signatures).

Te necessary commands to perform steps 3 to 6 are:

remnux@remnux:~$ sudo fakedns 192.168.1.23
dom.query. 60 IN A 192.168.1.23

Open another shell:

remnux@remnux:~$ httpd start
Starting web server: thttpd.
remnux@remnux:~$ sudo sysctl -w net.ipv4.ip_forward=1
net.ipv4.ip_forward = 1
remnux@remnux:~$ sudo iptables -t nat -A PREROUTING -i eth0 -p tcp --dport 80 -j REDIRECT --to-port 8080
remnux@remnux:~$ sudo iptables -t nat -A PREROUTING -i eth0 -p tcp --dport 443 -j REDIRECT --to-port 8080
remnux@remnux:~$ sudo iptables -t nat -L
Chain PREROUTING (policy ACCEPT)
target     prot opt source               destination
REDIRECT   tcp  --  anywhere             anywhere            tcp dpt:https redir ports
REDIRECT   tcp  --  anywhere             anywhere            tcp dpt:www redir ports
REDIRECT   tcp  --  anywhere             anywhere            tcp dpt:www redir ports
REDIRECT   tcp  --  anywhere             anywhere            tcp dpt:https redir ports

remnux@remnux:~$ burpsuite
[1] 8912

malware-analysis-framework-burp

Then, on Windows the initial steps are:

  1. Define the Network adapter settings in the VMware to be in the same custom virtual network as the REMnux.
  2. Configure IP address in the same range as the REMnux
  3. Configure the DNS server to point to the REMnux
  4. Define the default GW as being the REMnux
  5. Test the network settings
  6. Create a VMware snapshot
  7. Move the malware sample to the machine
  8. Start necessary tools (if needed)
  9. Execute the malware sample

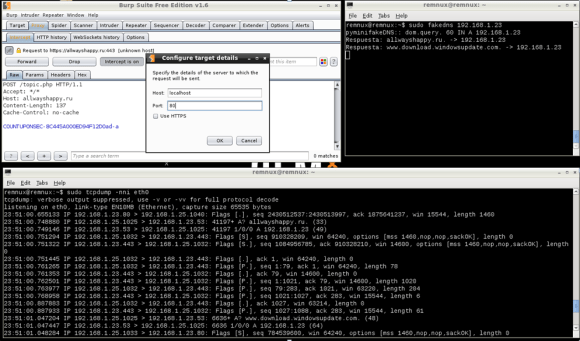

After having the machines ready you can move your malware sample to the disposable Windows machine and execute it. In this case I executed a malware variant of Torrentlocker. The result is shown in the following picture:

malware-analysis-framework-result1

  1. There is a query from the Windows machine to the DNS server asking the A record of the address allwayshappy.ru
  2. FakeDNS answers back with the IP of the REMnux
  3. Windows machines establishes a SSL connection to the IP REMnux on port 443 which is redirected trough iptables to port 8080
  4. The traffic is Intercept by Burp Suite and can be seen and manipulated in clear.
  5. The request can be forwarded to localhost on port 80 to fake an answer.

Following the first request, this malware performs a second request, potentially sending some more data. Unfortunately the request is encrypted – that would be a good challenge for static analysis!

malware-analysis-framework-burp2

As you could see in a quick manner you could determine that the malware tries to reach out to a C&C. This type of knowledge can then be used to find other compromised systems and start your incident response actions.

You might see this as a time-intensive process that does not scale – think a company that needs to analyse hundreds of samples per month, week or per day – solution is automation. Several automated malware analysis system have appeared over the last years such as CWSandbox, Norman Sandbox, Anubis, Cuckoo and others. Essentially these systems load the malicious binary into a virtual machine and execute it. During execution all the interactions with I/O, memory, registry and network are tracked and then a report is produced. This greatly reduces the costs of malware analysis. However, is good to understand how to do manual analysis because many times the malware samples only trigger on specific conditions or bypasses the sandboxes. In addition you start to be proficient on different tools and techniques!



References:
SANS FOR610: Reverse-Engineering Malware: Malware Analysis Tools and Techniques

Tagged , , , , , , , ,
gb_master's /dev/null

... and I said, "Hello, Satan. I believe it's time to go."

Source Code Auditing, Reversing, Web Security

Finding Hidden codes in the software

BruteForce Lab

security, programming, devops, visualization, the cloud

Count Upon Security

Increase security awareness. Promote, reinforce and learn security skills.

Naked Security

Computer Security News, Advice and Research

Didier Stevens

(blog \'DidierStevens)

malwology

Adventures in double-clicking malware / by Anuj Soni

Rational Survivability

Hoff's Ramblings about Information Survivability, Information Centricity, Risk Management and Disruptive Innovation.

SANS Internet Storm Center, InfoCON: green

Increase security awareness. Promote, reinforce and learn security skills.

TaoSecurity

Increase security awareness. Promote, reinforce and learn security skills.

Schneier on Security

Increase security awareness. Promote, reinforce and learn security skills.

Technicalinfo.net Blog

Increase security awareness. Promote, reinforce and learn security skills.

Lenny Zeltser

Increase security awareness. Promote, reinforce and learn security skills.

Krebs on Security

In-depth security news and investigation
